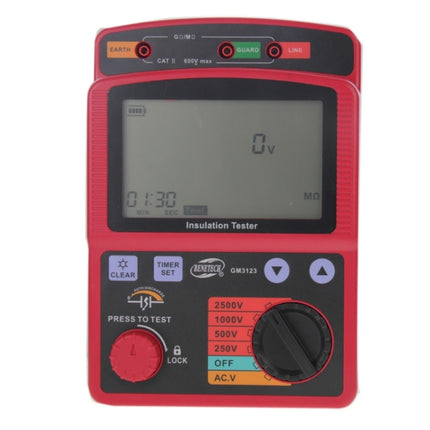

BENETECH GM3123 High Voltage Insulation Tester, GM3123

Features1. Auto discharge function to make the operation safe 2. LCD backlight 3. Digital readout display 4....
Vendor: BENETECH
Availability: In stock
Product type: Consumer Electronics
£67.99 GBP
£67.99 GBP
Please hurry! Only 999999 left in stock
10 customers are viewing this product
  • Mira Sales

Same-day Shipping on orders before 6PM (GMT+8)

Add to Cart and check shipping rates by entering your Country & Zip Code at checkout. (Shipping rates are determined by weight and destination country)

Standard Returns

Learn More.

Hurry! Limited stock available. Get yours today!

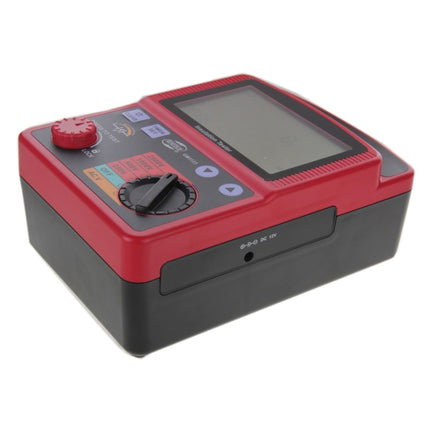

BENETECH GM3123 High Voltage Insulation Tester, GM3123

Vendor: BENETECH

BENETECH GM3123 High Voltage Insulation Tester, GM3123

£67.99

Vendor: BENETECH

BENETECH GM3123 High Voltage Insulation Tester, GM3123

£67.99
Option: GM3123
Features
1. Auto discharge function to make the operation safe
2. LCD backlight
3. Digital readout display
4. Live circuit warning symbols with audio sounds
5. Anto power off function (in 10 minutes without operation)
6. Timer measurement function
7. Low battery indication
8. Suitable for 12V DC adapter (12V / 1A)

Specifications
1. Display: Max. 999 counts LCD display (1000 counts only at 1T is displayed) Bar graph / max. 36 points.
2. Over range indication: OL mark appears on insulation resistance range. LO mark appears on voltage range
3. Auto-ranging: Range shifts to upper range: 1000 counts. Range shifts to lower range: 95 counts (merely on the insulation resistance range)
4. Sample rate: 0.5-10 times / sec
5. Operable altitude: Less than 2000m (Indoor use)
6. Operation circumstance: Temperature 0-40 Celsius Degree, humidity: <=85%
7. Storage circumstance: Temperature -20-60 Celsius Degree, humidity: <=90%
8. Overload protection: Insulation resistance: AC 1200V / 10s, Voltage: AC 720V / 10s
9. Voltage resistance: AC8320 (50/60Hz)/5 seconds (between electrical circuit and enclosure)
10. Insulation resistance: 1000M of more / DC 1000V (between electrical circuit and enclosure)

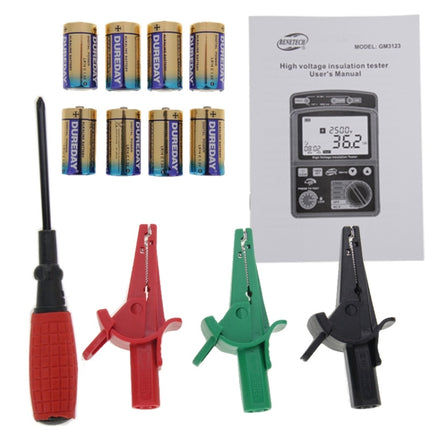

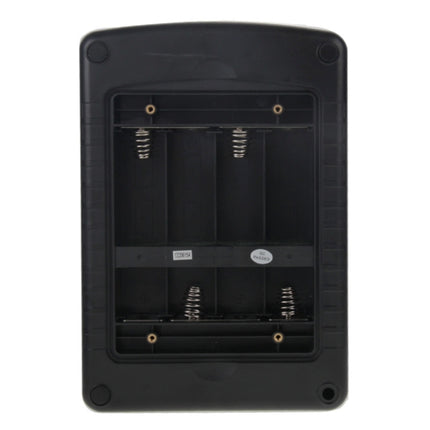

11. Power Supply: DC 12V (8 x 1.5V LR14 batteries) (included)
12. Size: 153mm x 96mm x 220mm
13. Weight: 1032g (without batteries and test wires)


Specification:
Package Weight
One Package Weight 3.34kgs / 7.36lb
One Package Size 33cm * 27cm * 13.5cm / 12.99inch * 10.63inch * 5.31inch
Qty per Carton 2
Carton Weight 7.40kgs / 16.31lb
Carton Size 40cm * 30cm * 30cm / 15.75inch * 11.81inch * 11.81inch
Loading Container 20GP: 740 cartons * 2 pcs = 1480 pcs
40HQ: 1719 cartons * 2 pcs = 3438 pcs
