Description

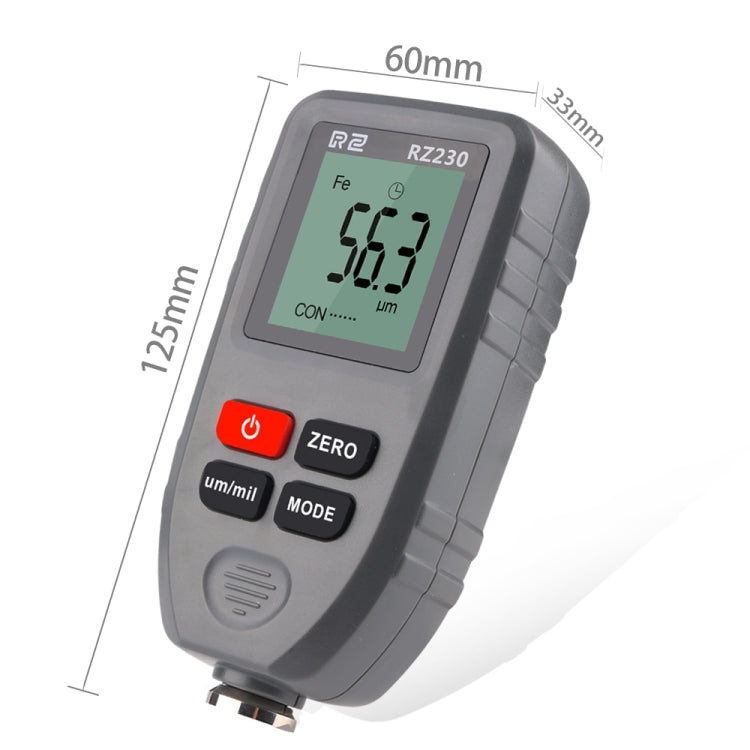

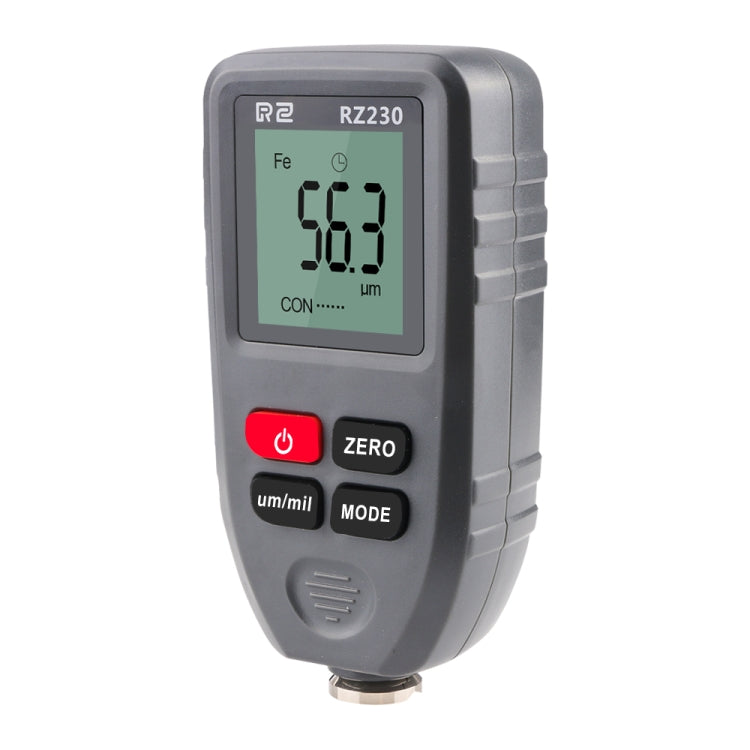

RZ230 Paint Film Meter Tester Coating Measure Thickness Gauge Digital Portable Mini Thickness Gauge Tester
Introductions:
The thickness gauge is used to measure the thickness of the plated and coatedsheeton metal, e.g. paint/enamel/ chrome on steel, paint and anodizing coating on aluminum/copper.

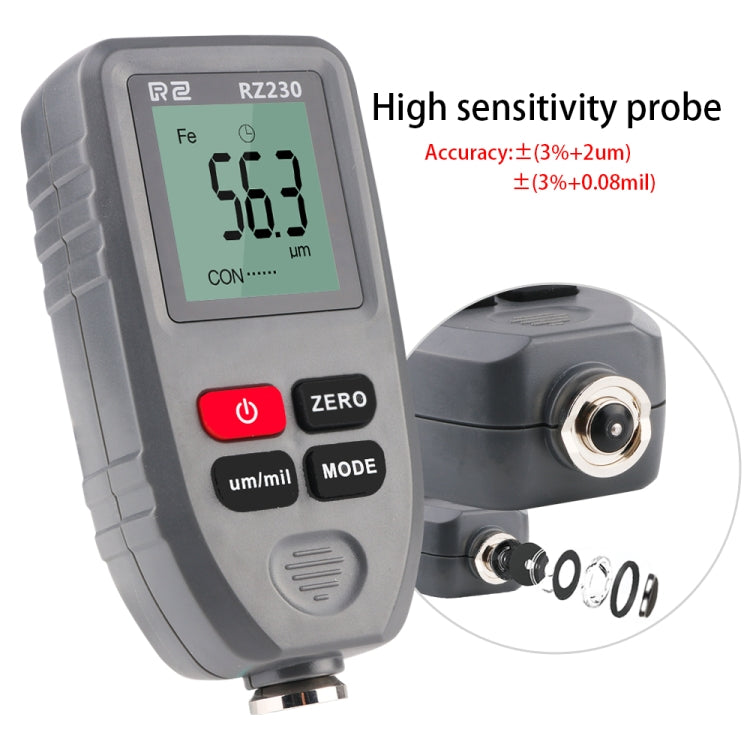

The gauge takes the precision integrated probe, and uses principles of electro-magnetic inductionand the eddy current effect, which automatically detects the attributeof substrates.
Application Field:
The Gauge is designed for non-destructively measuring the thickness of coating and painting. It is essential for material surface treatment and widely used in manufacturing industry, metal-processing industry, chemical industry, commodity inspection area, and also able to work steadily in the laboratory, workshop and outdoor.
Operating Principle:
Thegauge adopts the principle of electromagnetic induction and eddy current effect.It has F probe and N probe.
F probe works on the magnetic induction principle and should be used for detecting the non-magnetic coating’s thickness such as chrome/copper/zinc/varnish/rubber on the iron/steel substrate.
N probe works on the eddy current principle and should be used for detecting the insulating coating’s thickness such as paint/anodizing/ceramics on the aluminum/copper/brass substrate.
Specification:
| Package Weight |
| One Package Weight |
0.27kgs / 0.60lb |
| One Package Size |
20cm * 10cm * 8cm / 7.87inch * 3.94inch * 3.15inch |
| Carton Weight |
15.00kgs / 33.07lb |
| Carton Size |
74cm * 37cm * 29cm / 29.13inch * 14.57inch * 11.42inch |
| Loading Container |
20GP: 335 cartons * 60 pcs = 20100 pcs
40HQ: 779 cartons * 60 pcs = 46740 pcs
|
|
