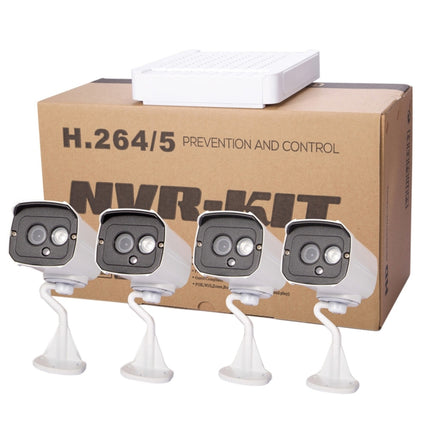

Description

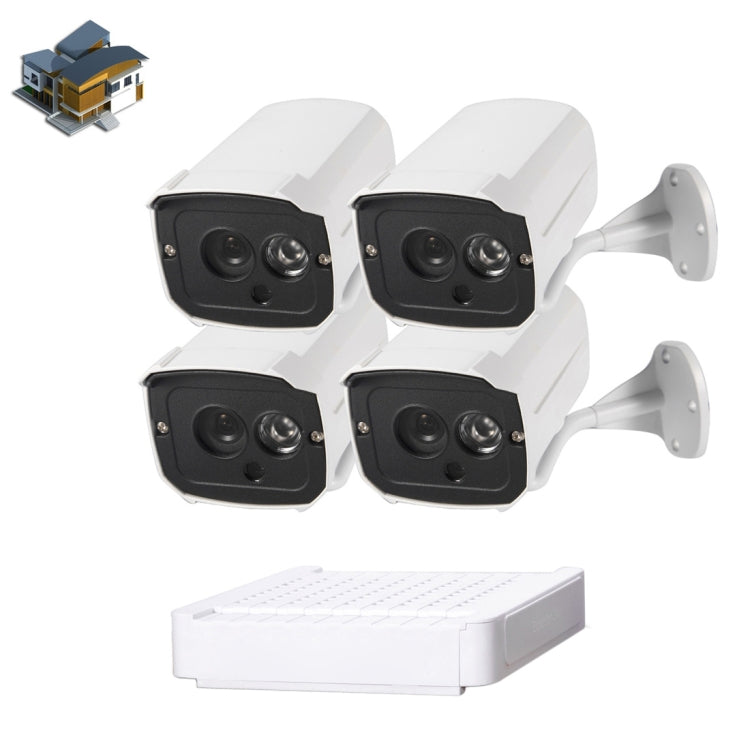

Features1. Support 4CH 960P/1080P 1 HDD NVR
2. 4x 1MP IP Camera(1 x LED Array, IR distance 20m)
3. High performance H.264 compression technology, processing and flexible
4. Plug and play(i8s Super agreement): One-click setting, IP address was assigned automatically
5. P2P cloud service, including cloud connecting, cloud monitoring,cloud transmitting to access IPC and NVR at any time and any place, Mobile viewing,support all smartphone systems
6. Support Onvif protocol, support high profile S, high profile G, compatible with different IP camera that based on Onvif, RTSP standard

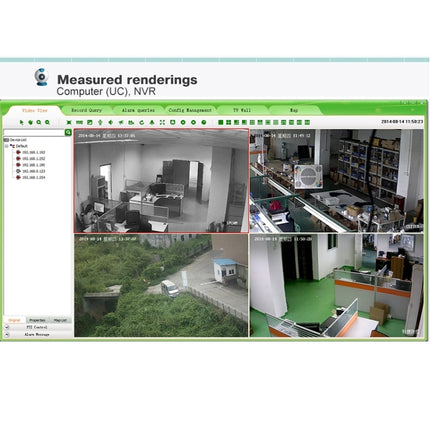

7. Offer CMS for free

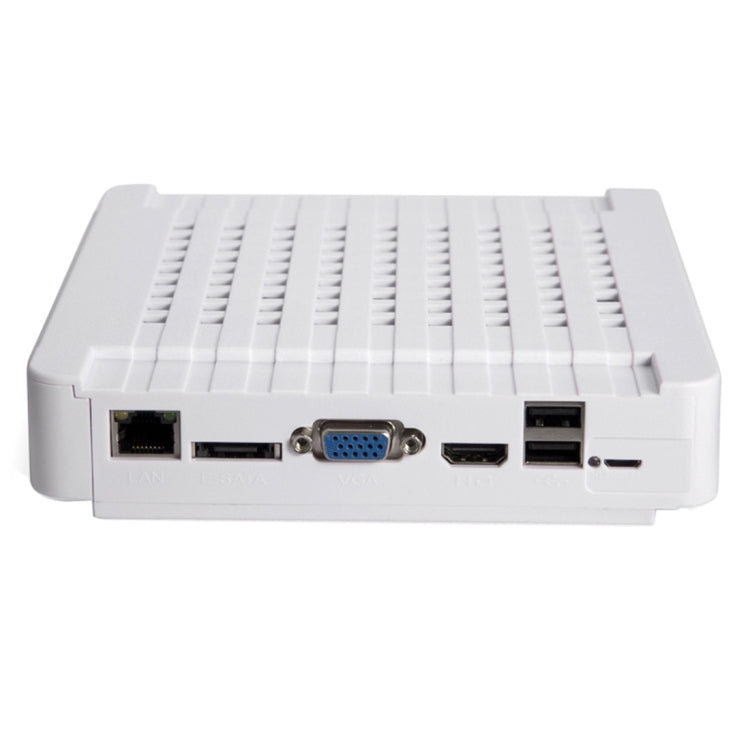

NVR1. P2P cloud service, including cloud connecting, cloud monitoring, cloud transmitting to access IPC and NVR at any time and any place
2. Support Onvif protocol, support High profile S, High profile G, compatible with different IP camera that based on Onvif, RTSP standard
3. Support megapixel HD network video preview, storage and playback;
4. Support search, playback and backup by event;

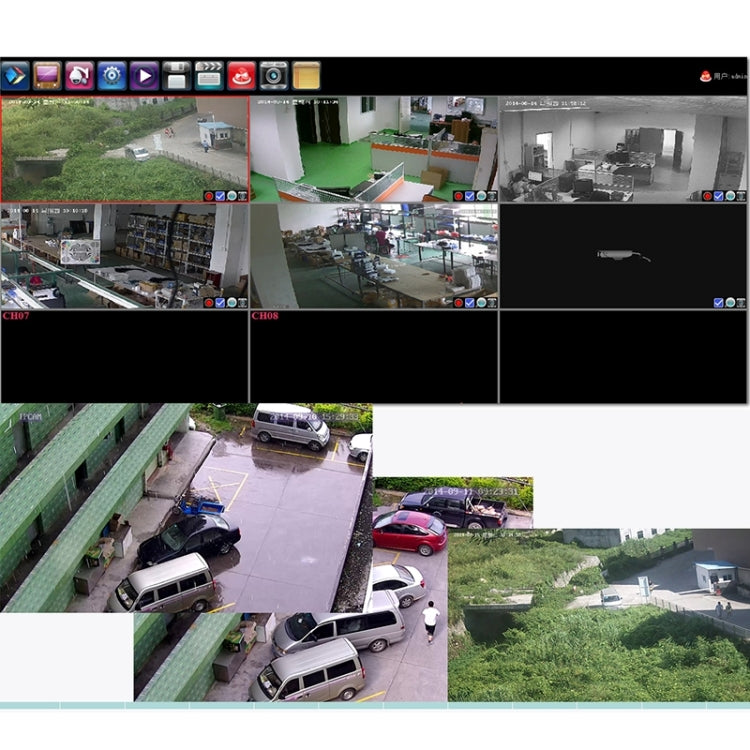

5. Support all channel image display on one screen at same time, support 4 channels' image display by mainstream, and 4 channels playback;
6. Support monitor PTZ on preview mode
7. Offer CMS for free
8. Dual stream: Each channel can set main stream and sub stream
9. Video standard: 1080P(1920*1080)30fps / 960P / (1280*960) / 720P (1280*720) 30fps
10. Monitoring image quality: 1080P(1920*1080) / 960P/(1280*960)/720P(1280*720)

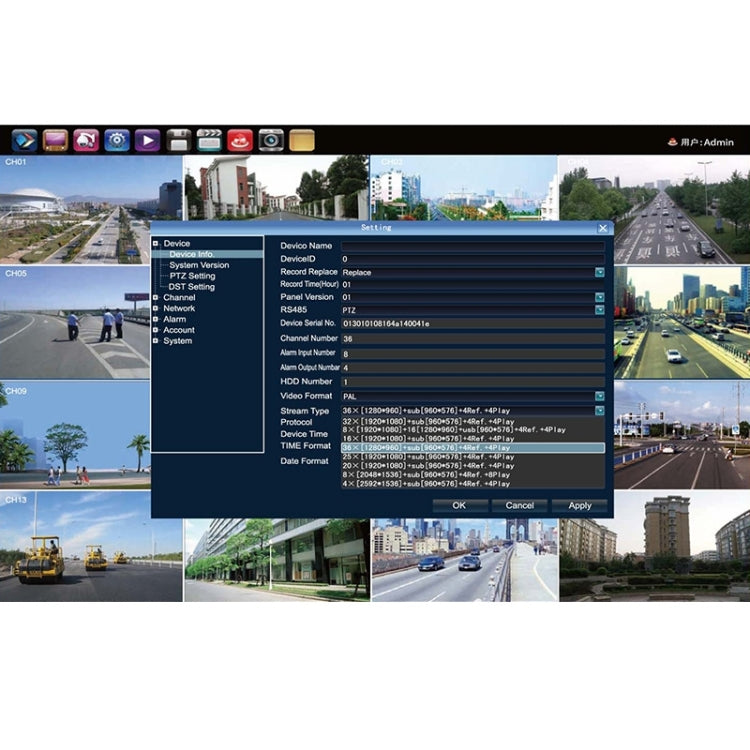

11. Image motion detection: Each screen can set mutiple detection areas and set 6-level sensitivity (IPC support)
12. Recording playback quality: 4ch playback in 4ch 720/960P mode; 1ch 1080P playback in 1/4ch 1080P
13. Region cover: Every channel can set 4 cover regions (IPC support)
14. Recording mode: Support manual , auto, dynamic detection, alarm trigger record mode (Partly needs IPC support)
15. Backup way: Support U disk, USB mobile HDD, USB DVD-RW, network storage and backup
16. Operation way: Mouse, Keyboard
17. Local login: User name and password
18. Recording storage: Local HDD, network
19. Video Input
4x(1920*720) + sub(960*576) + 4Ref.+ 4Play 4ch 1.0MP IP Camera
4x(1280*960) + sub(960*576) + 1Ref.+ 4Play 4ch 1.3MP IP Camera
4x(1920*1080) + sub(960*576) + 4Ref.+ 1Play 4ch 2.0MP IP Camera
1x(1920*1080) + sub(960*576) + 4Ref.+ 1Play 1ch 2.0MP IP Camera
4x(720*576)+sub(352*288) + 4Ref. + 4Play 4ch D1 IP Camera
20. Audio Input: 4ch network audio input

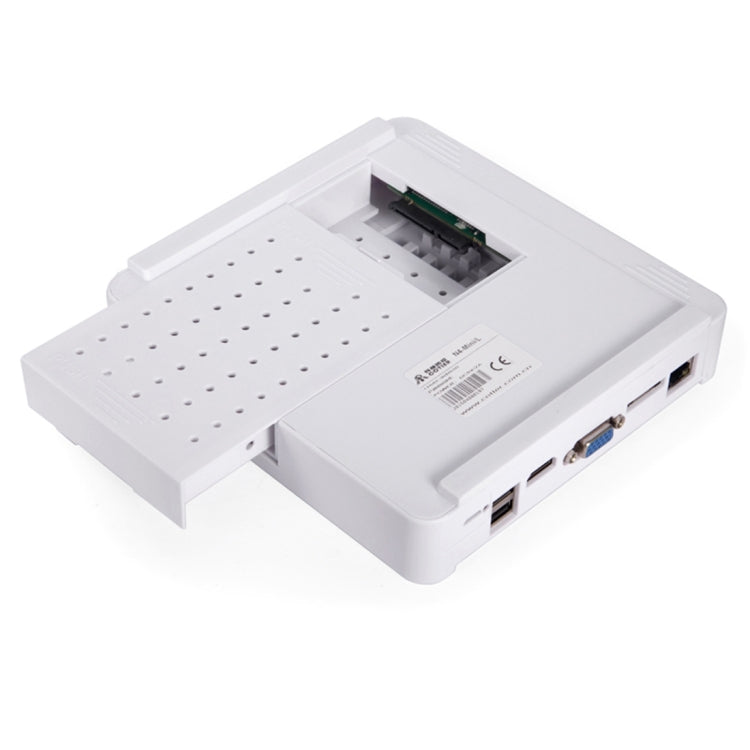

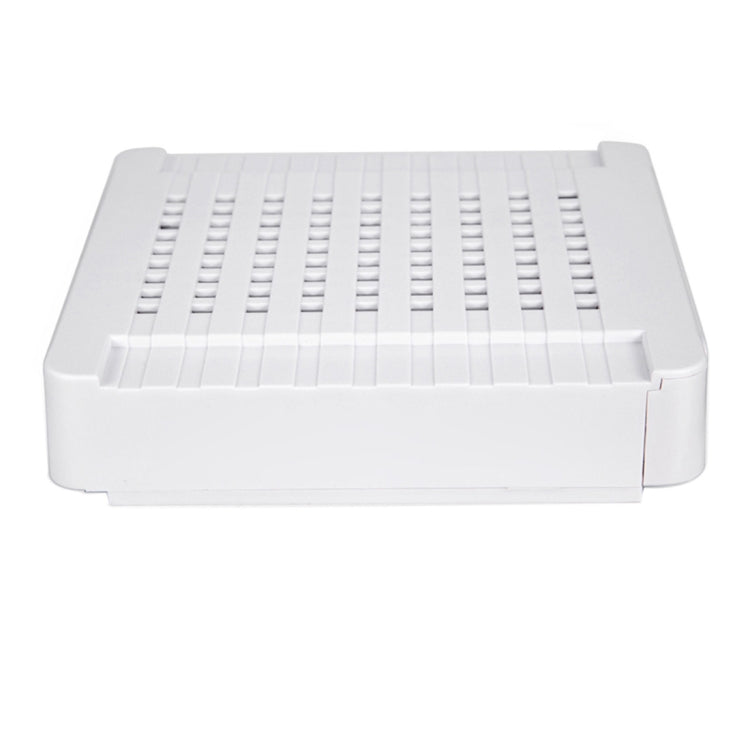

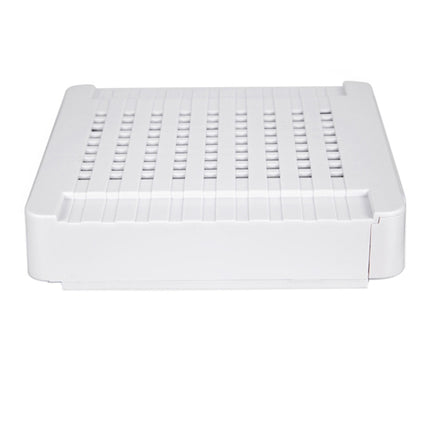

21. Desktop Installation, Mini II 1HDD (2.5 inch) NVR, Support 4T HDD

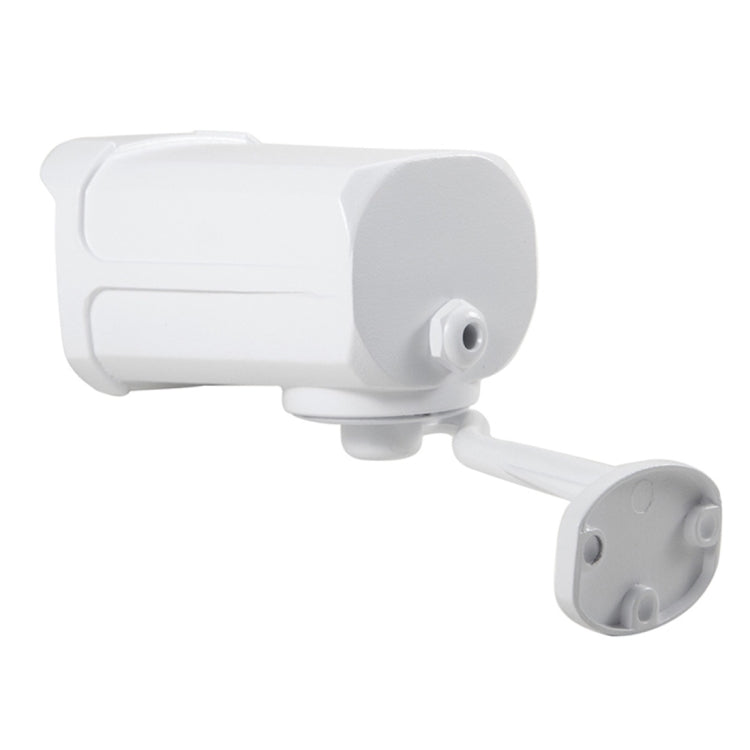

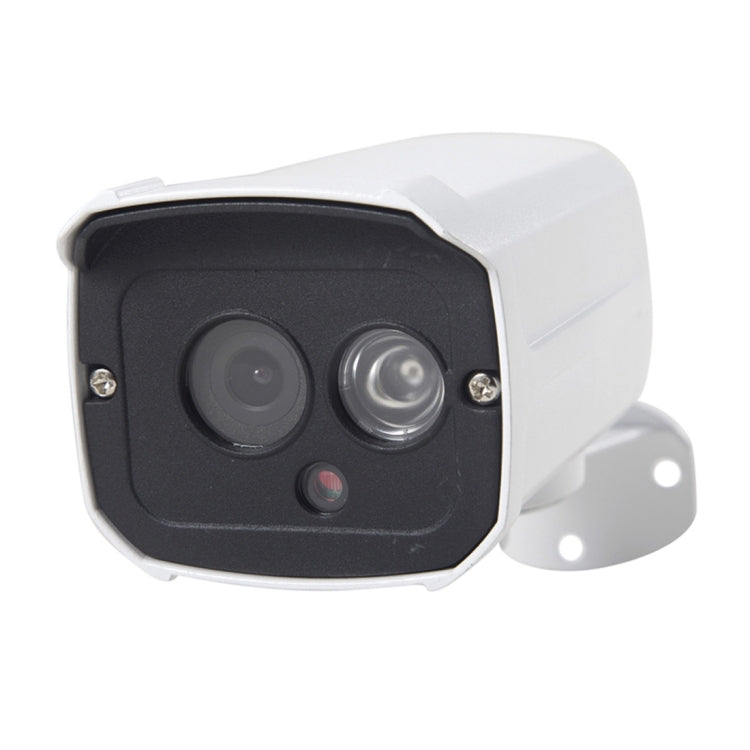

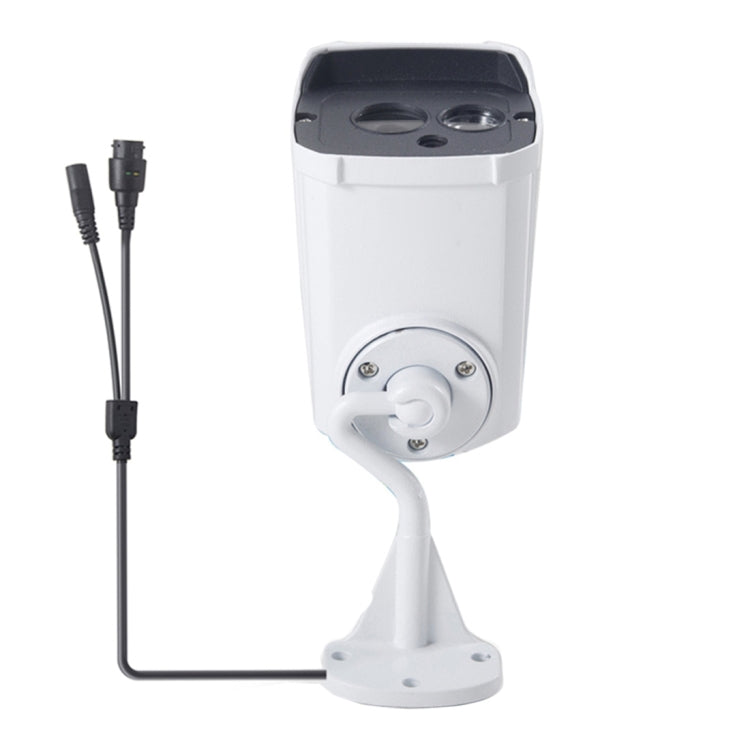

IP Camera1. 1/3 inch Megapixel CMOS Sensor. High resolution 1MP

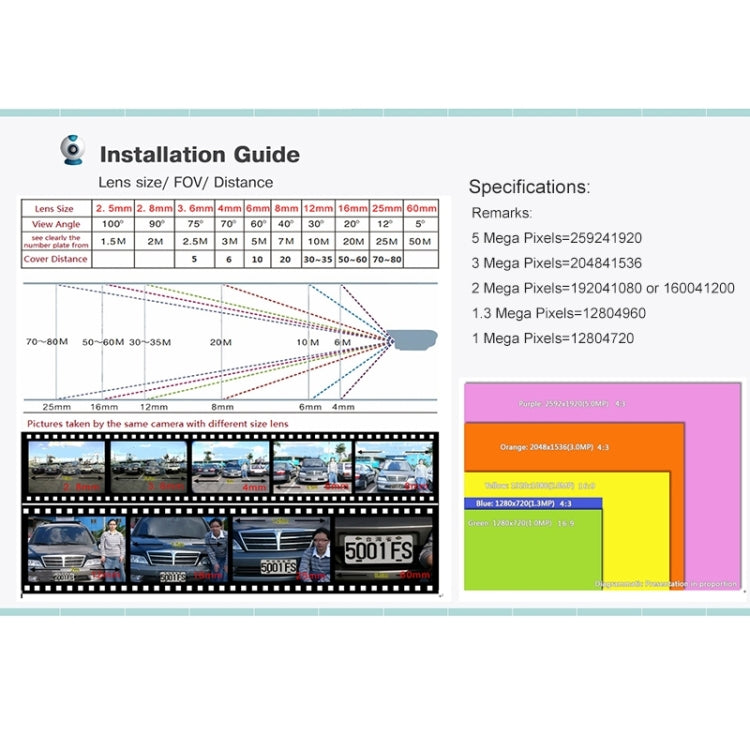

2. 3.6mm-8mm 1.0 Megapixels lens optional. IR distance 20m
3. Scheme using Hi Silicon (3518+9715). High-performance dual-core 32-bit DSP, embedded RTOS settings
4. High performance H.264 compression technology, processing and flexible, high compression ratio 25 FPS(1280*720P@25FPS)
5. Dual stream network transmission, for a variety of network environments
6. Motion detection. Linkage video
7. HD picture quality, resolution up to 720P (1280 x720) real-time image
8. Minimum illumination up 0 LUX (IR ON)
9. Support IR CUT dual OLP Switching, monitored day and night to achieve
10. Support mobile phone monitoring (compatible with iPhone / Android) P2P
11. Support ONVIF
12. Support WEB configuration, real-time video transmission, motion detection and IO alarm linkage end storage, front storage playback/ download
13. Motion detection and IO alarm center remind and screen pop-up linkage, unified client remote monitoring software (UC2) and VM3000 platform etc. system, phone monitoring (iPhone, Android), through service "through clouds" and provide complete development kit SDK
Specification:
| General |
| Performance |
Motion detection, Night Vision |
|
| Network |
| Network Interface |
RJ45 10/100MB Ethernet interface |
| Protocol |
DDNS, NTP, UPNP, DHCP, PPPOE, FTP, RTSP |
|
| System / Hardware |
| Mobile Access |
Android, iPhone OS |
| Minimum Illumination |
Color: 1.0Lux/F1.2, B/W: 0.1Lux/F1.2 |
|
| Media Format |
| Video Compression Format |
H.264 |
| Sub Stream |
1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 640 x 360, 480 x 270, 352 x 288, 320 x 240, 352 x 192, 320 x 192, 288 x 192, 256 x 192 |
|
| NVR |
| System |
Operating system: Embedded LINUX OS |
| Image Code Control |
Image code quality adjustable, Variable bitstream and constant bitstream optional |
| Network |
RJ45, 10M/100M/1000M self-adaptive LAN port |
| HDD |
2.5 inch HDD (not included), Max 4TB |
| Mobile Surveillance |
Support(iPhone, Windows Mobile, BlackBerry, Symbian, Android) smart phone |
| Operation temperature |
-10 to 55 Degree Celsius |
| Operation humidity |
10-90 percent |
|
| Physical Environment |
| Environment |
Outdoor, Indoor |
|
| Package Include |
| Package Contents |

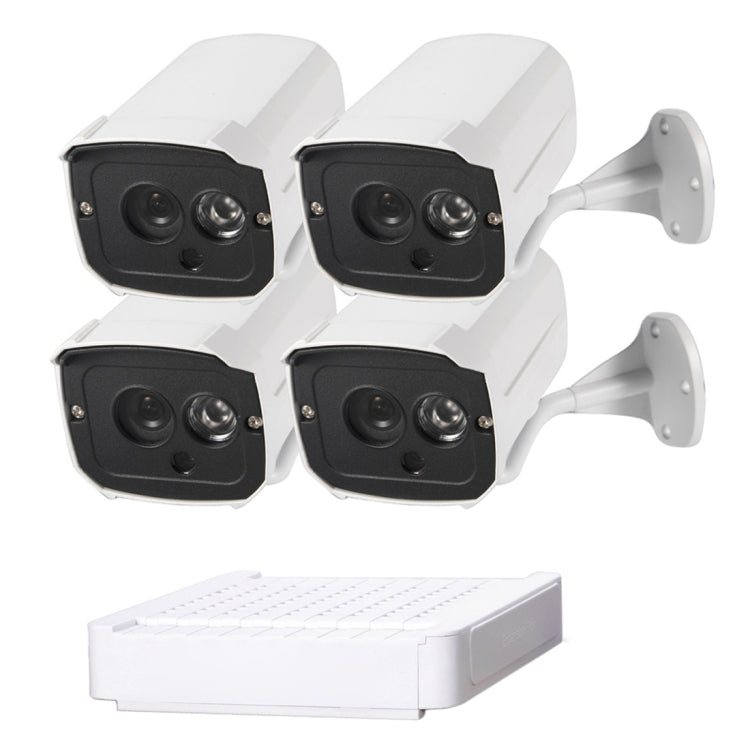

4 x Cameras
1 x Mounting Accessories
1 x NVR
1 x CD
4 x Power Chargers
1 x Power Charger |
|
| Package Weight |
| One Package Weight |
2.70kgs / 5.95lb |
| One Package Size |
37cm * 22cm * 16cm / 14.57inch * 8.66inch * 6.3inch |
| Carton Weight |
11.50kgs / 25.35lb |
| Carton Size |
39cm * 46cm * 34cm / 15.35inch * 18.11inch * 13.39inch |
| Loading Container |
20GP: 437 cartons * 4 pcs = 1748 pcs
40HQ: 1014 cartons * 4 pcs = 4056 pcs
|
|
