Measy · A20W Wireless HDMI
Send your HDMI picture across the room without the cable run.
The Measy A20W wireless HDMI system includes two transmitters and one receiver, giving you a practical way to extend an HDMI source to a TV, projector or monitor. With up to 50m point-to-point transmission, support for up to 4K 30Hz at the receiver and HDMI/VGA/audio outputs, it suits home entertainment, gaming and meeting-room setups.
Mira Sales TipPlan the connection path before plugging in.
For the cleanest setup, connect one transmitter to your HDMI source and the receiver to the display first, then power both sides. The supplied set contains two transmitters, so keep the spare transmitter ready for a second source. Remember that the transmitter must be used with the receiver; it cannot operate alone.
Up to 50mpoint-to-point range
4K 30Hz Outputreceiver supports 3840×2160
2 Transmittersswitch between supported sources
Plug & Playno software or drivers required

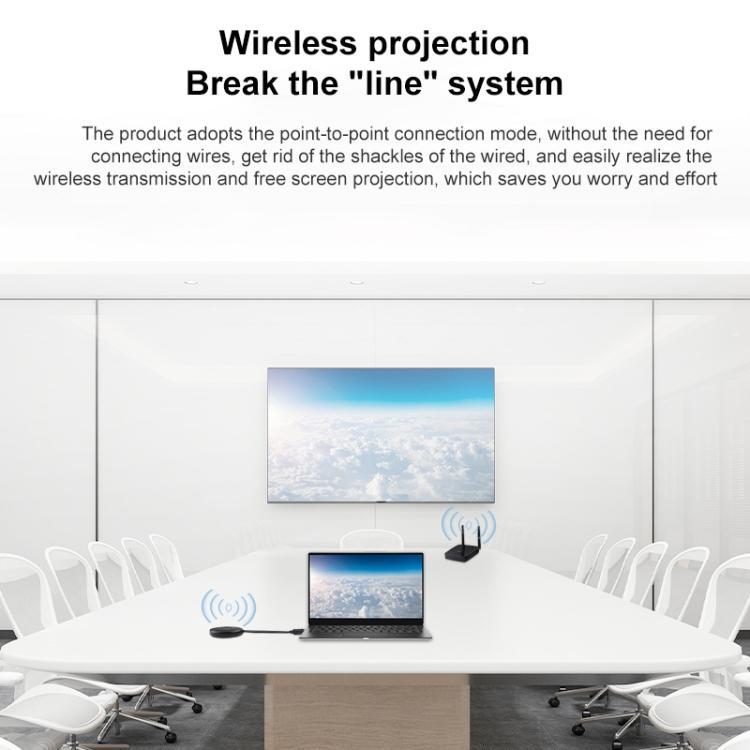

A flexible wireless display link for home and work
50m Point-to-Point Transmission
The system is specified for up to 50m point-to-point transmission, helping place the display away from the source without a long HDMI cable.
4K Receiver Output
The receiver supports up to 3840 × 2160 at 30fps, while the transmitter decoding capability is specified as 1080P 60Hz.
HDMI + VGA + Audio
The receiver provides HDMI, VGA and 3.5mm audio connections for flexible display and audio arrangements.
Two Transmitters Included
Use the supplied transmitters with compatible HDMI sources and switch between supported inputs when required.
Broad Device Support
The source list includes Windows, macOS, Android, iOS, PS5, Xbox and Nintendo Switch when used with the appropriate HDMI connection or conversion hardware.
No Extra Software
The supplied wireless link is designed as plug and play, with no software, driver or setup application required.
Product Images — Auto Changing Every 2 Seconds
Explore the transmitter, receiver, ports and installation layout from multiple angles.
AUTO VIEW · 2 SEC
Built Around Simple Wireless Display Sharing
Longer Cable-Free ReachUp to 50m point-to-point transmission is useful for separated source and display locations.
Flexible OutputsHDMI, VGA and 3.5mm audio on the receiver support varied display setups.
Multiple SourcesThe system can support up to 8 transmitters with one receiver when extra transmitters are purchased.
Quick InstallationPlug-and-play operation avoids software, drivers and complicated configuration.
Mira Sales TipInstallation & use
Keep the receiver at the display and the transmitter with the source.
This makes the signal path easier to understand and keeps cable runs tidy. For a second source, use the included second transmitter. For more than two sources, the system specification says one receiver can support up to 8 transmitters when additional transmitters are purchased.
Compatibility & Connection Note
Typical sources: set-top box, game console, PC, Mac and other HDMI output devices. Listed support includes Android, Windows, macOS, Linux, iOS, PS5, Xbox and Nintendo Switch.
Important: the transmitter cannot be used alone; it must operate with the receiver. HDMI converters may be required for devices without a suitable HDMI output.
Key Specifications
| Wireless standard |
IEEE 802.11ac 2.4GHz / 5GHz |
| Transmission distance |
Up to 50m point-to-point; 10m wireless mode |
| Receiver resolution |
Up to 3840 × 2160P 30fps |
| Transmitter decoding |
1080P 60Hz |
| Receiver ports |
HDMI, Type-C USB, VGA, 3.5mm audio |
| Transmitter ports |
HD / Type-C |
| Power |
Transmitter 5V/1A; receiver 5V/1–2A |
| Product size |
13.5 × 10 × 2.5cm |
What’s Included

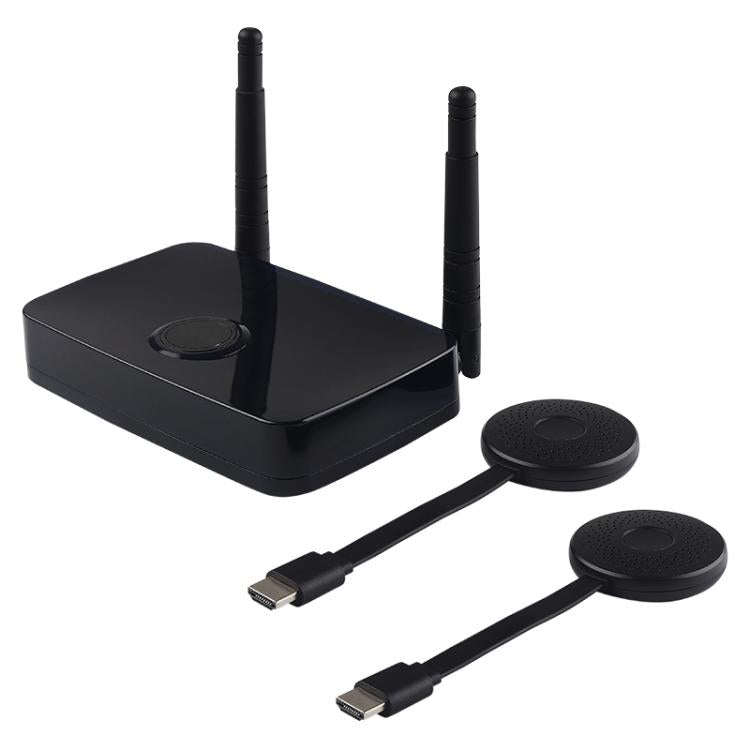

Set: 2 × wireless HDMI transmitters and 1 × wireless HDMI receiver.
Package: approx. 0.41kg · 16 × 14 × 6cm. Carton quantity 60; carton weight approx. 25.6kg.
Measy A20W Wireless HDMI Transmitter & Receiver Set
A flexible wireless HDMI solution for moving video and audio to a secondary display without a long cable run. With two transmitters, one receiver, up to 50m point-to-point range and up to 4K 30Hz receiver output, the A20W is suited to compatible home entertainment, gaming and presentation setups.
