Description
1. Working voltage range: 5.0V-36V
2. Balance port 1 string input voltage range: 0.8V-15V
3. Balance port 2-8 series input voltage range: 0.8V-4.8V
4. Support battery string number: 1-8S
5. Voltage measurement accuracy: 0.005V @4.2V
6. Cell balance accuracy: 0.005V
7. Support USB charging: QC 2.0/3.0 BC1.2, 12/2A (MAX)
8. Support smart battery: set charging and anti-power parameters, query battery information and usage
9. Supported battery types:
- LiHv (1-8S)/LiPo (1-8S)/LiFe (1-8S)
- Lilon (1-8S)/NiMH/Cd (1-10S)
10. Display type: 2.4 inches 320x240 260,000 colors IPS LCD
11. Visible 260,000 color display under strong sunlight
12. The exquisite and powerful BG-8S intelligent battery tester fully supports BattGO technology

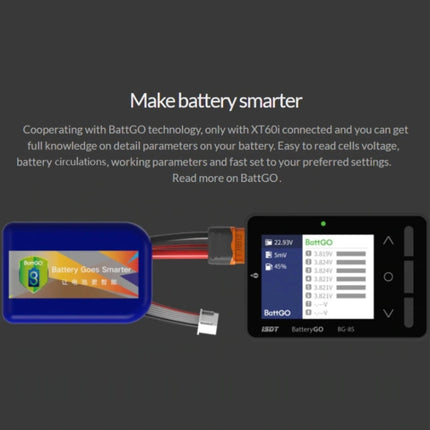

13. With BattGO technology, you can fully understand the detailed parameters of the battery just by connecting to XT60i

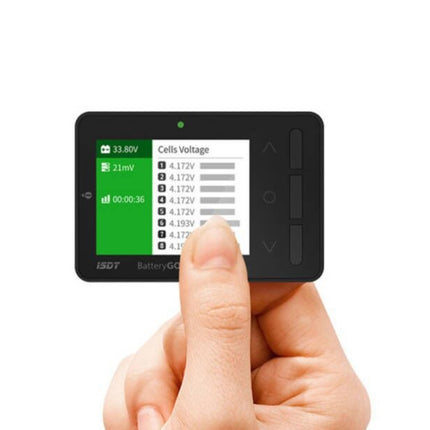

14. Easy to read battery voltage, battery cycle, working parameters and set up quickly
15. Automatically balance the battery voltage, advanced automatic balance algorithm, to ensure the balance of each cell, automatically enter the low power consumption mode after completion

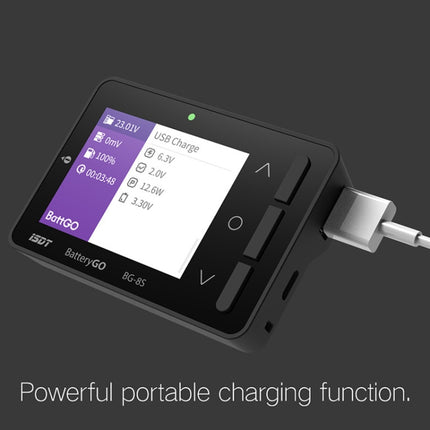

16. Powerful portable charging function, connect to your battery, BG-8S can be a power bank for your mobile devices
17. Support Qualcomm QC 2.0/3.0, compatible with BC1.2 and for Apple devices

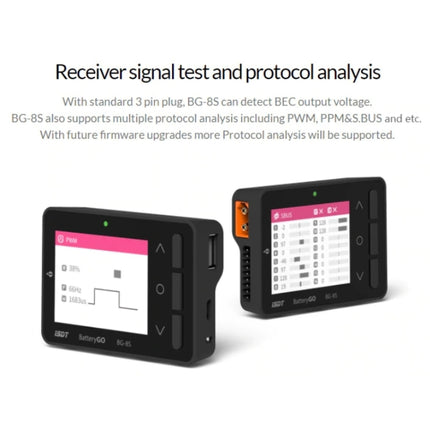

18. Receiver signal test and protocol analysis, BG-8S uses a standard 3-pin plug to detect BEC output voltage
19. BG-8S also supports multiple protocol analysis, including PWM, PPM&S.BUS, etc. Future firmware upgrades will support more protocol analysis

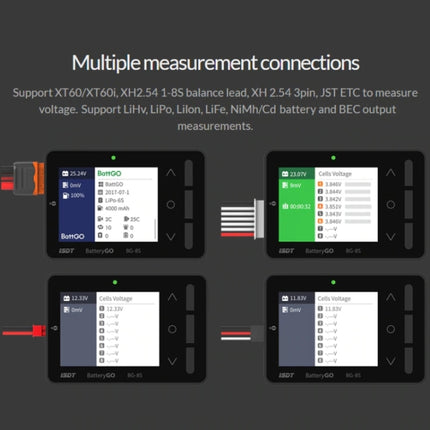

20. Support XT60/XT60i, XH2.54 1-8s balanced leads, XH2.54 3-pin, JST ETC measuring voltage
21. Support LiHv, LiPo, Lilon, LiFe, NiMh/Cd battery and BEC output measurement

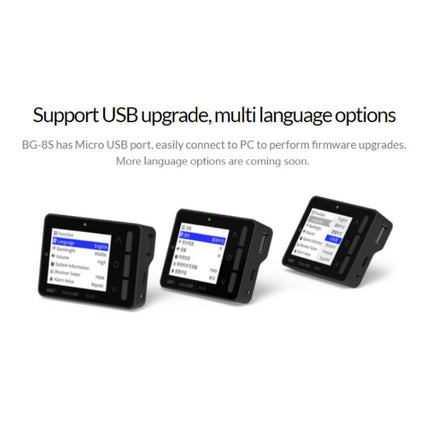

22. Support USB upgrade, multi-language selection
23. BG-8S has a Micro USB port, which can be easily connected to a PC for firmware upgrades

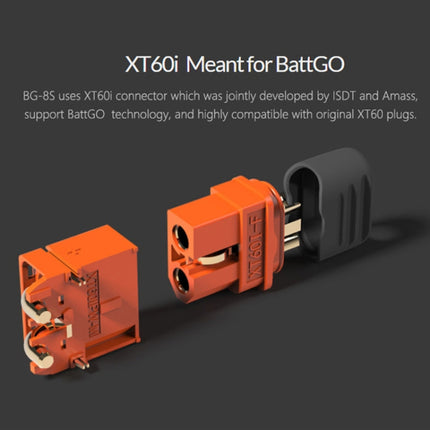

24. The XT60i is designed for BattGo
25. BG-8S adopts the XT60i connector jointly developed by ISDT and Amass, supports BattGO technology, and is highly compatible with the original XT60 plug
26. Dimensions: 80x55x19mm
27. Weight: 59 grams
Specification:
| Package Weight |
| One Package Weight |
0.11kgs / 0.25lb |
| One Package Size |
11cm * 10cm * 5cm / 4.33inch * 3.94inch * 1.97inch |
| Carton Weight |
30.00kgs / 66.14lb |
| Carton Size |
50cm * 50cm * 60cm / 19.69inch * 19.69inch * 23.62inch |
| Loading Container |
20GP: 177 cartons * 288 pcs = 50976 pcs
40HQ: 412 cartons * 288 pcs = 118656 pcs
|
|
