Description
1. This spot welder is suitable for securely welding various cylindrical lithium-ion batteries (e.g., 18650, 26650, 32650), Ni-MH, and Ni-Cd batteries. It supports the use of nickel strips with thicknesses from 0.1mm to 0.3mm.

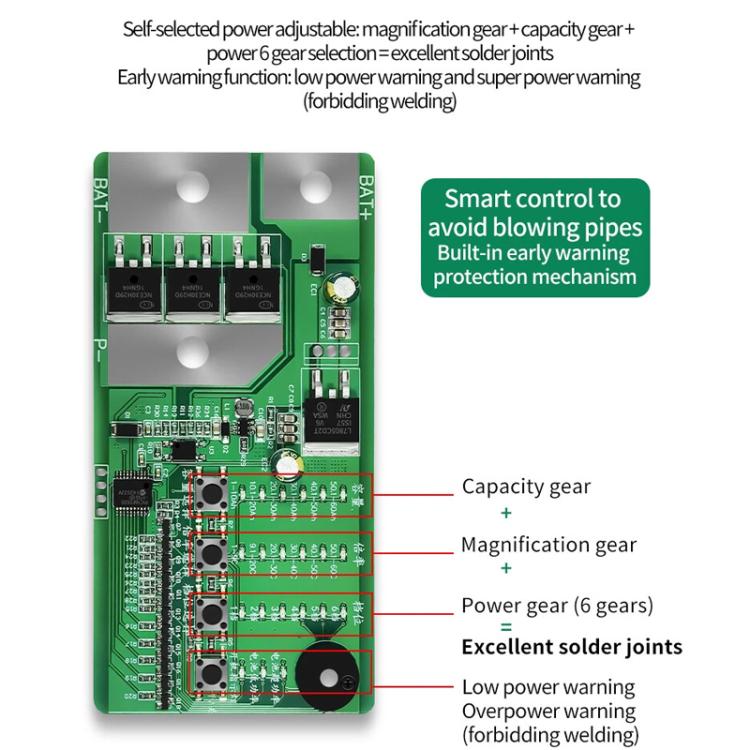

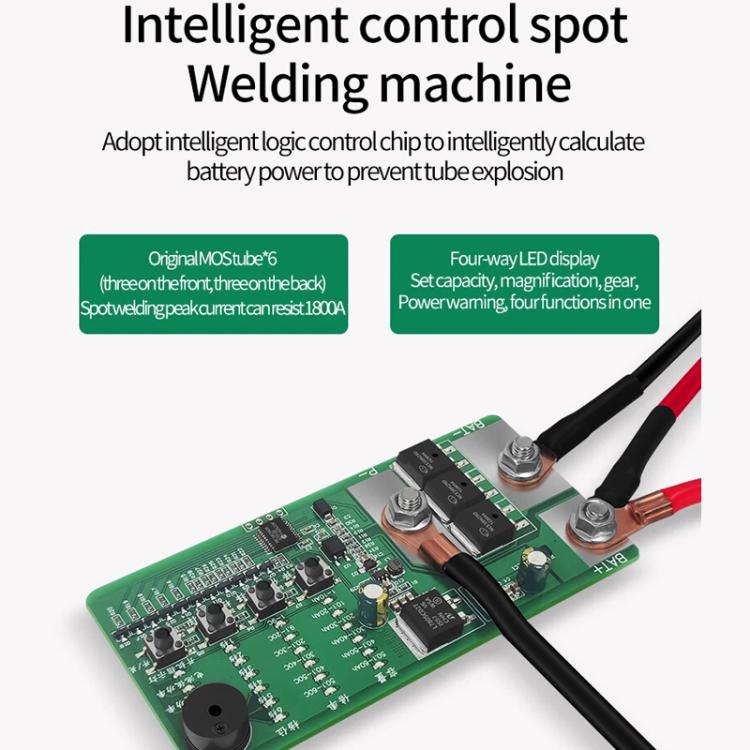

2. An integrated intelligent logic control chip automatically calculates the battery power parameters. This smart regulation is designed to prevent MOSFET burnout ("blowouts") during operation with different battery types.

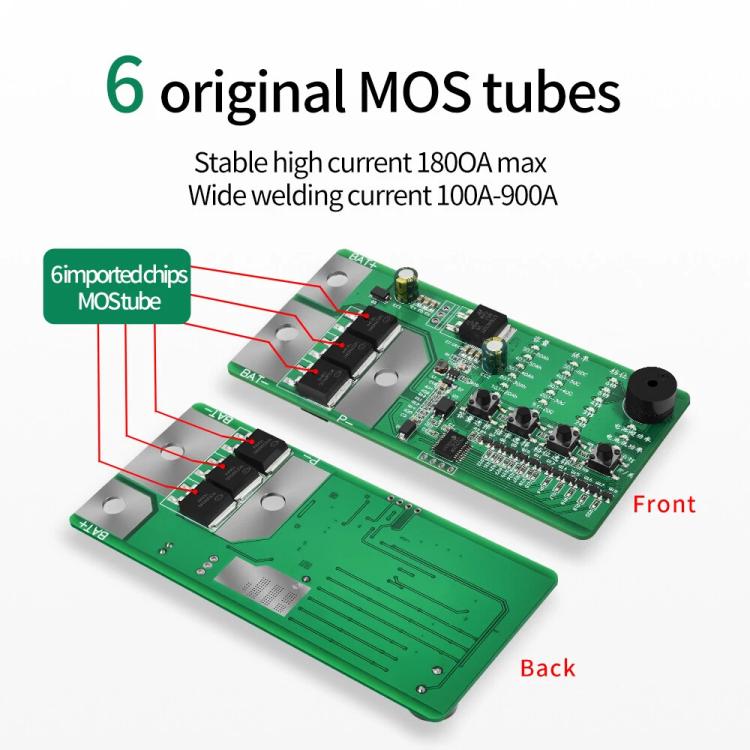

3. Equipped with a total of six Infineon MOSFETs (three on the front and three on the back), the welder is engineered to handle peak welding currents up to 1800A, providing strong and reliable performance.

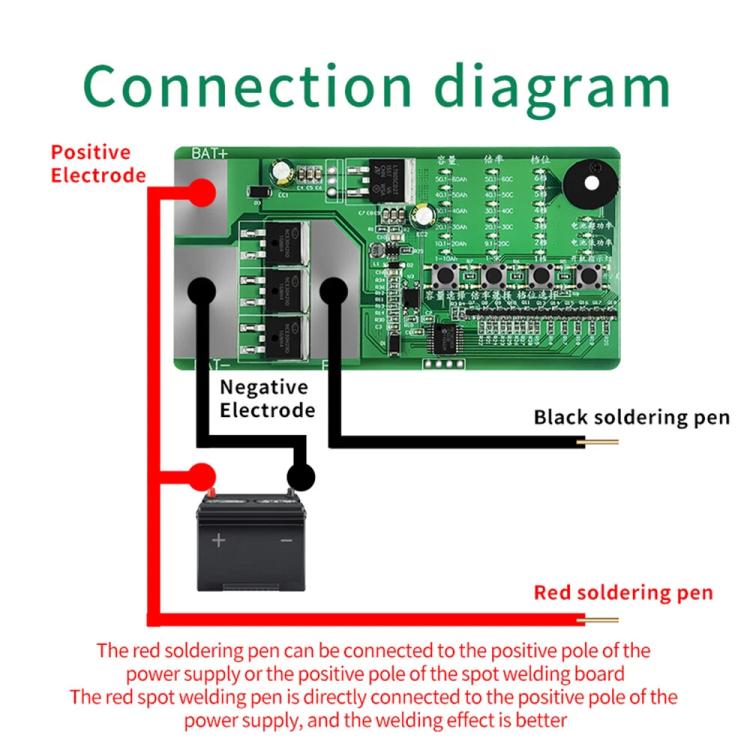

4. It requires users to provide their own separate 6.5V-16V power supply to operate, as it is not included.
Parameters:

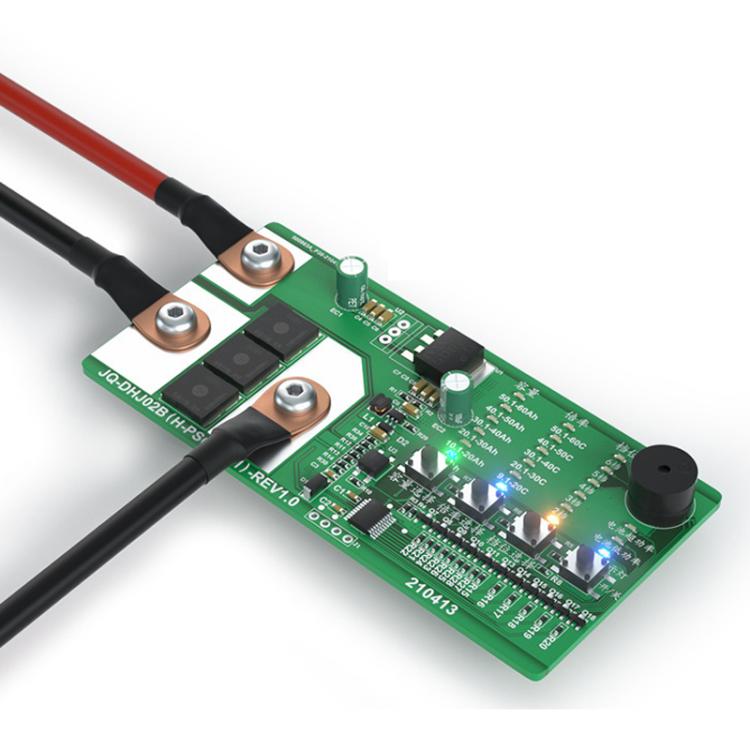

1. Product Model: DHJ_02B
2. Operating Voltage: 6.5V-16V
3. Operating Current: Less than 20mA
4. Standby Power Consumption: Less than 0.5mA
5. Recommended Operating Temperature: -10-60 degrees Celsius
6. Product Dimensions: 107 x 53mm x 1mm
7. Peak Welding Current: 1800A MAX

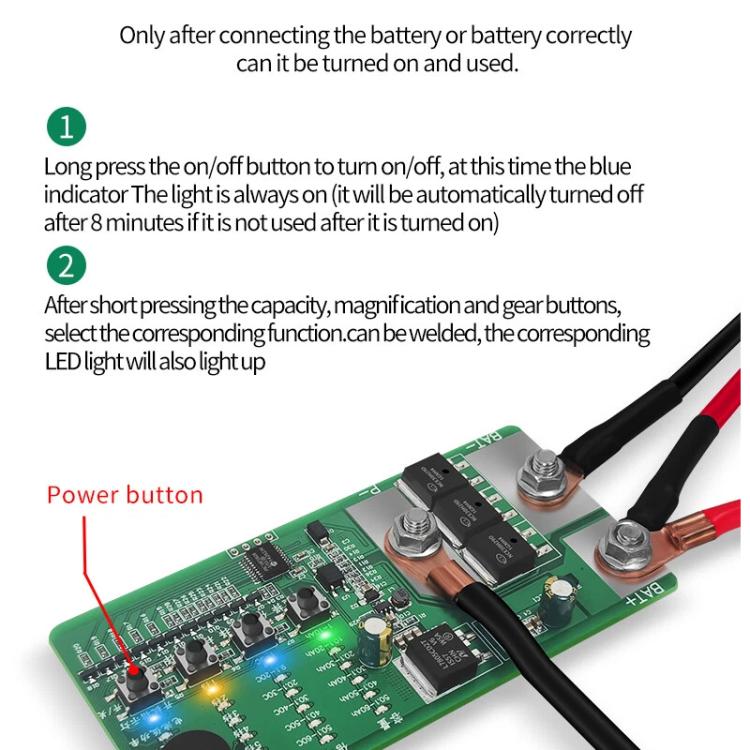

8. Intelligent Sleep Mode: Automatic sleep mode after 8 minutes of inactivity
9. Welding Mode: Default automatic welding mode
10. Welding Nickel Sheet Thickness: 0.1-0.3mm (related to battery discharge capacity)
11. Common Power Supply: High-rate lithium batteries, lead-acid batteries, high-rate lithium iron phosphate batteries, etc.

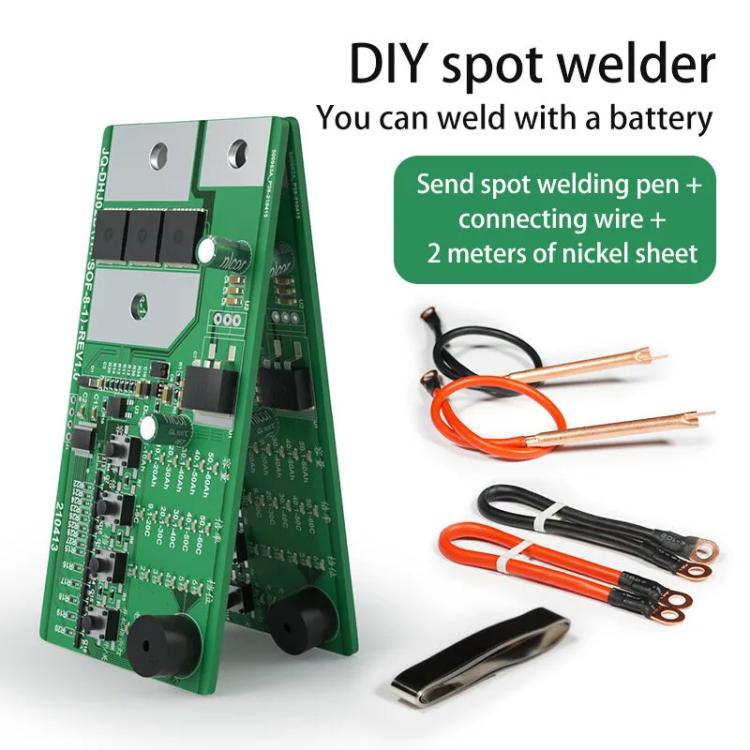

Packaging List: 1x Intelligent Mainboard, 2x Connection Cables, 2x Welding Pens (38cm long), 1x Nickel Strip Roll (0.1mm thick, 10mm wide, 2m length), 2x Heat Shrink Tubing, and 4 sets of Screws.
Specification:
| Package Weight |
| One Package Weight |
0.16kgs / 0.36lb |
| One Package Size |
17cm * 10cm * 3cm / 6.69inch * 3.94inch * 1.18inch |
| Carton Weight |
26.70kgs / 58.86lb |
| Carton Size |
32cm * 34cm * 42cm / 12.6inch * 13.39inch * 16.54inch |
| Loading Container |
20GP: 583 cartons * 160 pcs = 93280 pcs
40HQ: 1354 cartons * 160 pcs = 216640 pcs
|
|
