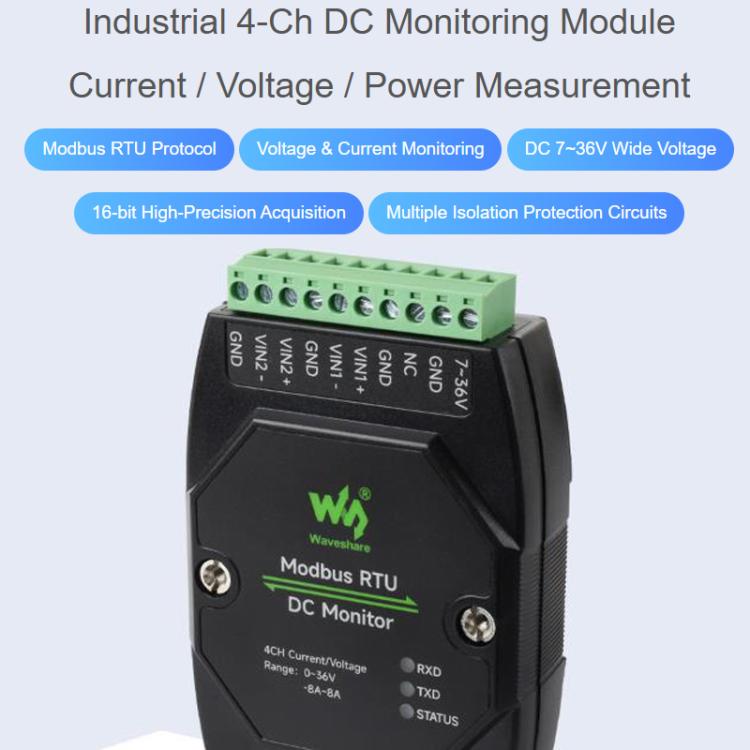

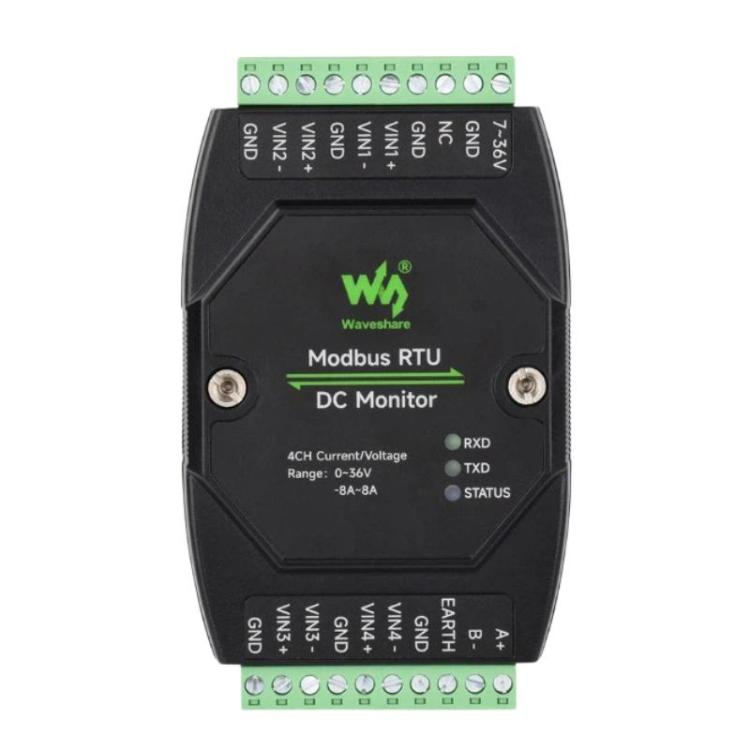

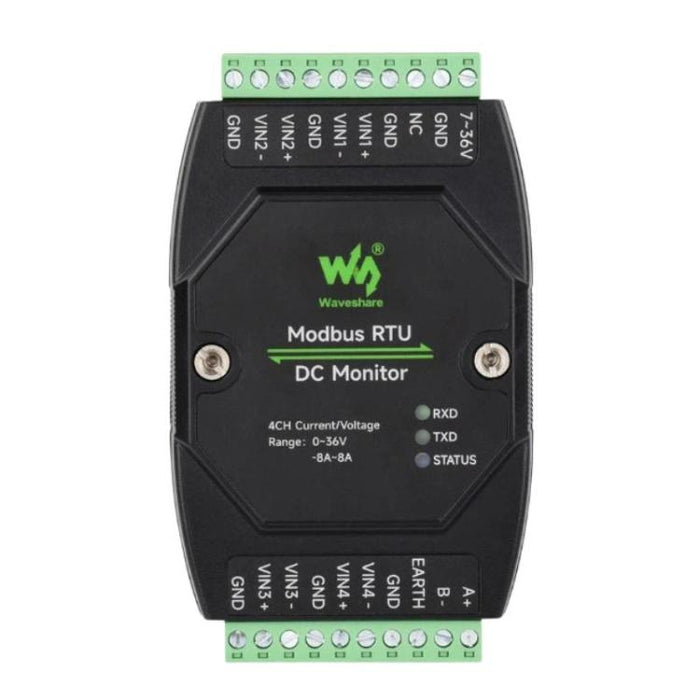

Industrial 4-Ch DC Monitoring Module, 16-Bit High-Precision Acquisition, Supports Voltage And Current Measurement, Modbus RTU Protocol, 33931

Industrial 4-Ch DC Monitoring Module, 16-Bit High-Precision Acquisition, Supports Voltage And Current Measurement, Modbus RTU Protocol, 33931

Product form

1. Support setting of device address (1 - 255) to enable cascading of multiple devices via RS485 bus2. Onboard voltage... Read more

🔥 Why Pay Retail? Save Up to 45% with Wholesale Pricing  🔥 Why Pay Retail? Save Up to 45% with Wholesale Pricing
Buy at Wholesale Price. Expedited Delivery Available! We consistently aim to deliver competitive prices, superior quality, and dependable insurance and return services.

£26.99

    • Guaranteed secure & safe checkout.

      shop pay
    • Why pay retails? Everyone deserves wholesale - even for 1 unit. Save like a pro
    • Wholesale pricing for everyone - no min
    • Buy at wholesale price(s) | Money saved vs marketplaces
    • Dedicated Account Manager
    • Bulk pricing - for large enquiries

    Description


    1. Support setting of device address (1 - 255) to enable cascading of multiple devices via RS485 bus

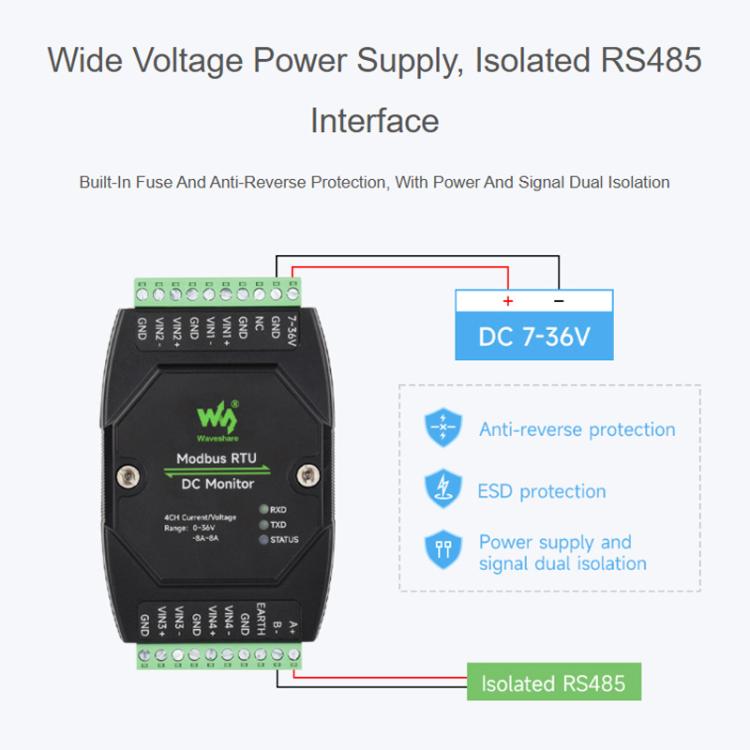

    2. Onboard voltage stabilizing chip, supporting a wide voltage range of 7V - 36V

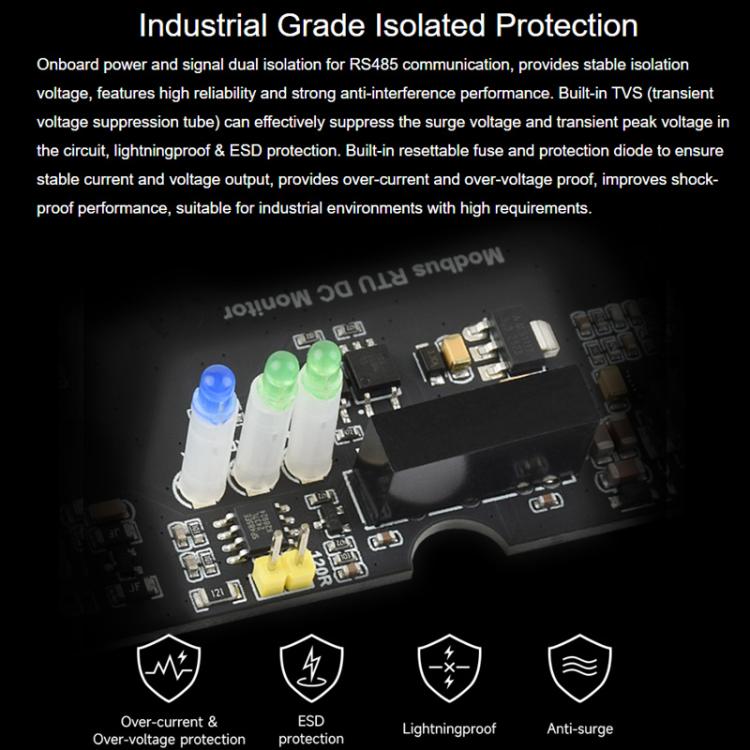

    3. Onboard integrated power isolation, providing stable isolated voltage. The isolated terminals do not require additional power supply
    4. Onboard optocoupler isolation, capable of signal isolation, with high reliability and strong anti-interference
    5. Onboard self-recovery fuse and TVS (Transient Voltage Suppression Diode), effectively suppressing surge voltages and transient peak voltages in the circuit, preventing overcurrent, overvoltage, lightning and static electricity

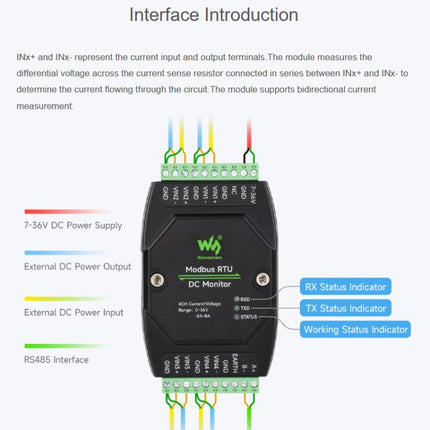

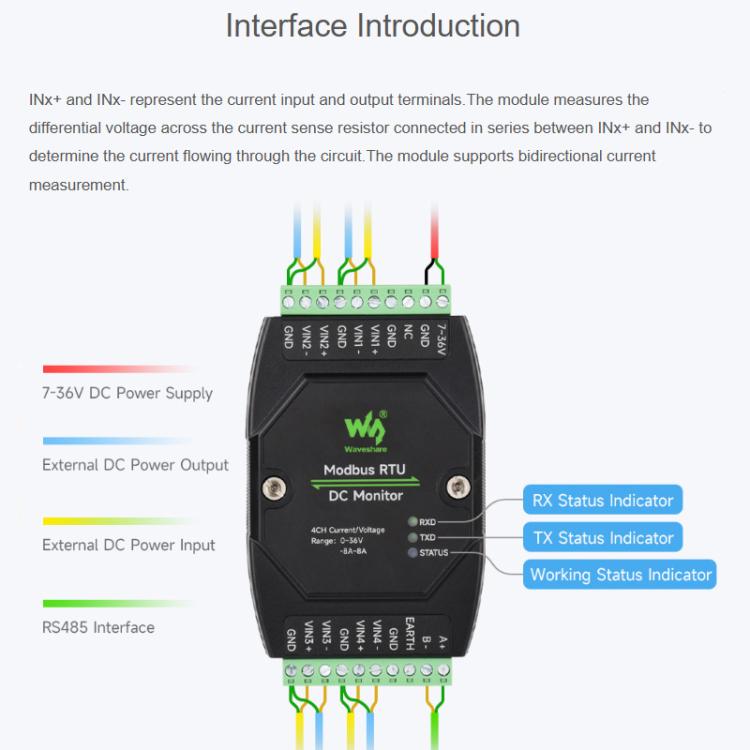

    6. Onboard 0.002 ohm 1% sampling resistor, 16-bit high-precision acquisition, capable of measuring bidirectional current
    7. The maximum measurement voltage is supported up to 36V, the maximum measurement current is supported up to 8A, and direct measurement of power is supported

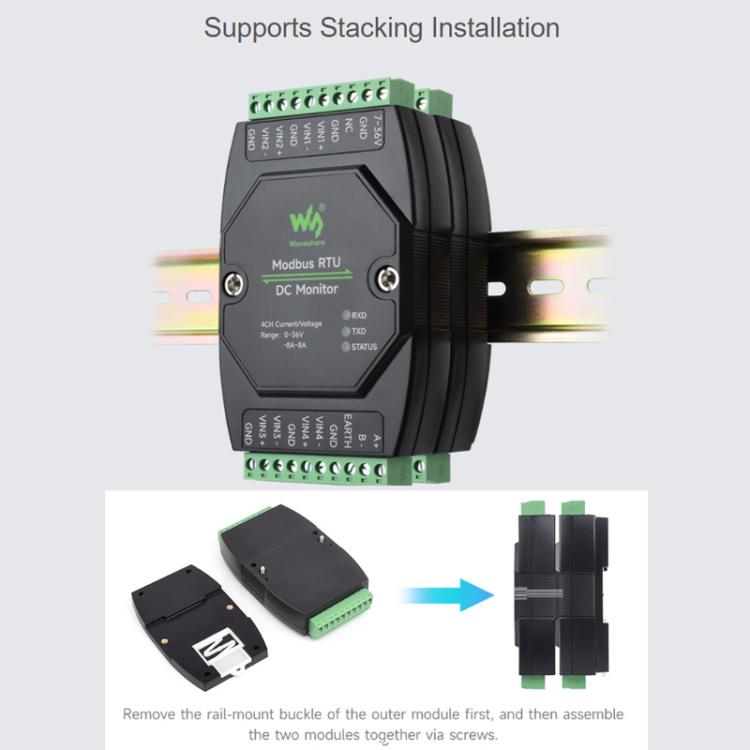

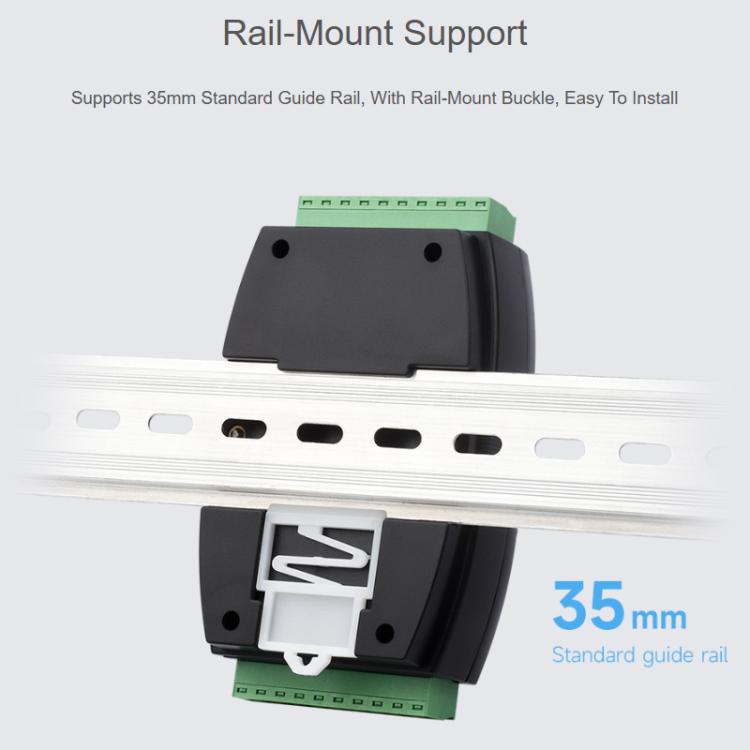

    8. Rail-mounted enclosure design, supporting stacking combination, easy installation, and safer to use
    9. Three external LED indicators, facilitating viewing of MCU status and signal transmission/reception status

    Parameters
    1. Communication interface: RS485
    2. Communication baud rate: 4800, 9600, 19200, 38400, 57600, 115200, 128000, 256000
    3. Default communication format: 9600, N, 8, 1
    4. Modbus protocol: standard Modbus RTU protocol
    5. Power supply voltage: DC 7V - 36V
    6. Sampling resistance: 0.002 ohm, 1%
    7. Measurement range: voltage: 0 - 36V, current: ±8A
    8. Resolution: 0.8mA

    Packaging list:
    - Modbus RTU DC Monitor x 1
    - Power adapter x 1
    - Screwdriver x 1
    Specification:
    Package Weight
    One Package Weight 0.16kgs / 0.36lb
    One Package Size 16cm * 11cm * 6cm / 6.3inch * 4.33inch * 2.36inch
    Qty per Carton 48
    Carton Weight 9.00kgs / 19.84lb
    Carton Size 46cm * 38cm * 34cm / 18.11inch * 14.96inch * 13.39inch
    Loading Container 20GP: 448 cartons * 48 pcs = 21504 pcs
    40HQ: 1041 cartons * 48 pcs = 49968 pcs
