Description

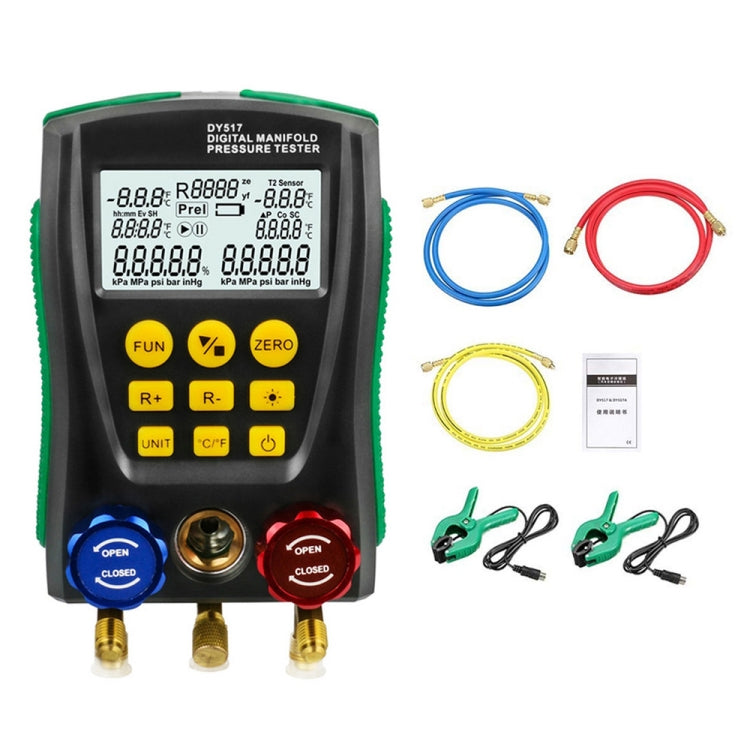

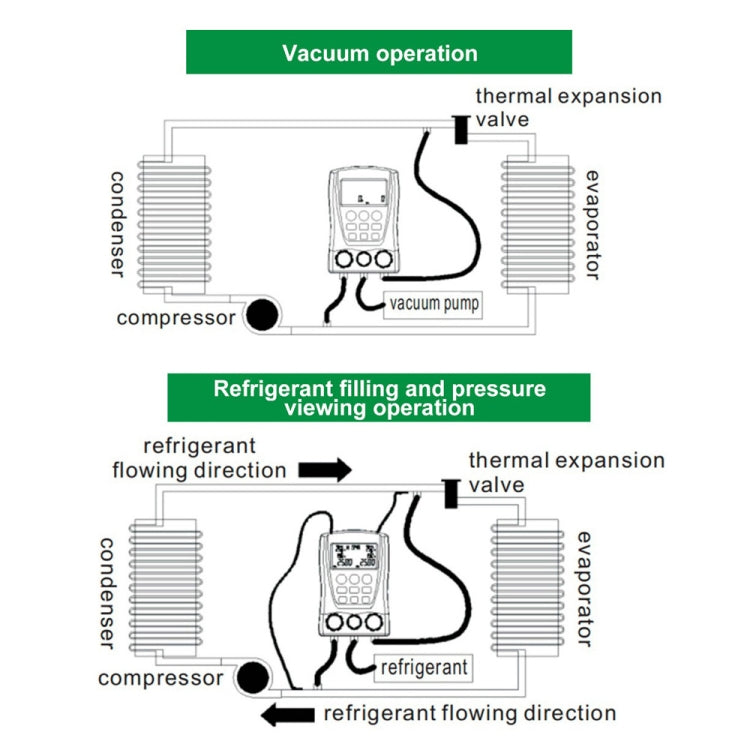

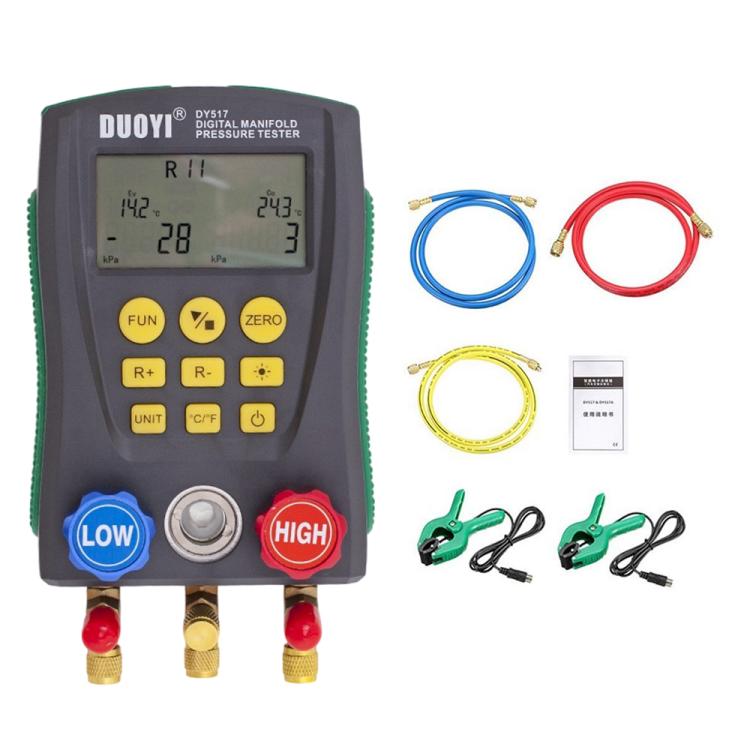

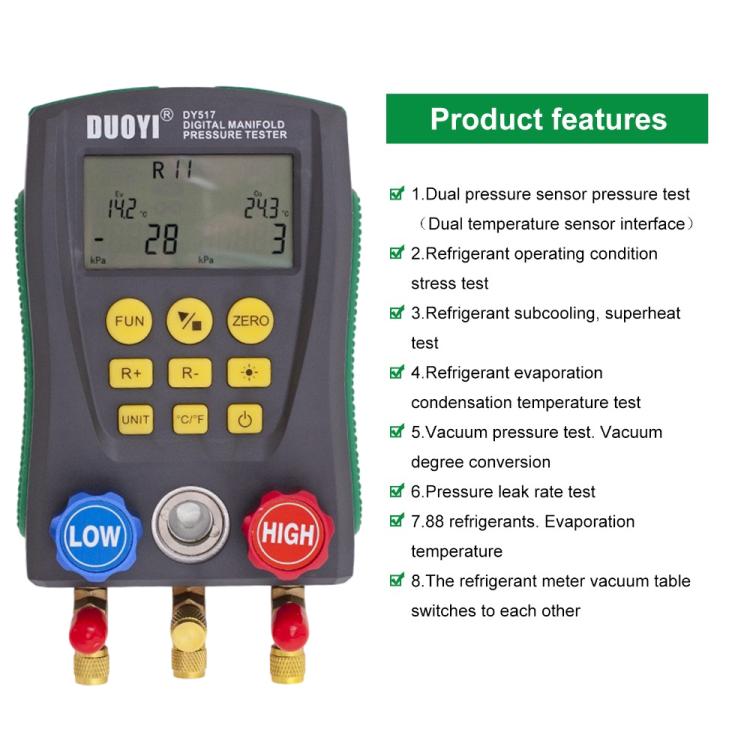

Features1. The intelligent electronic refrigerant group instrument is an auxiliary instrument for the installation, testing and maintenance of refrigeration equipment such as air conditioners and cold storage.

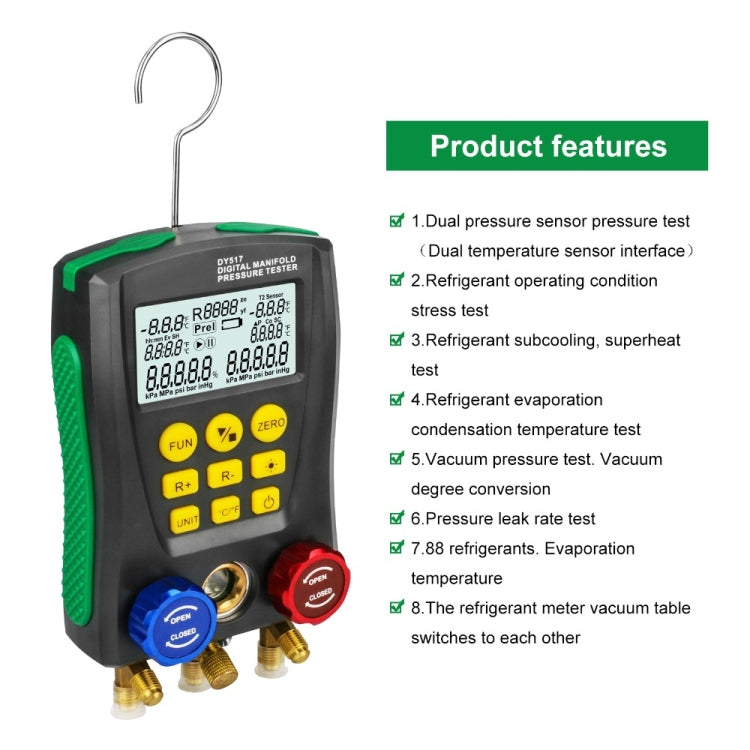

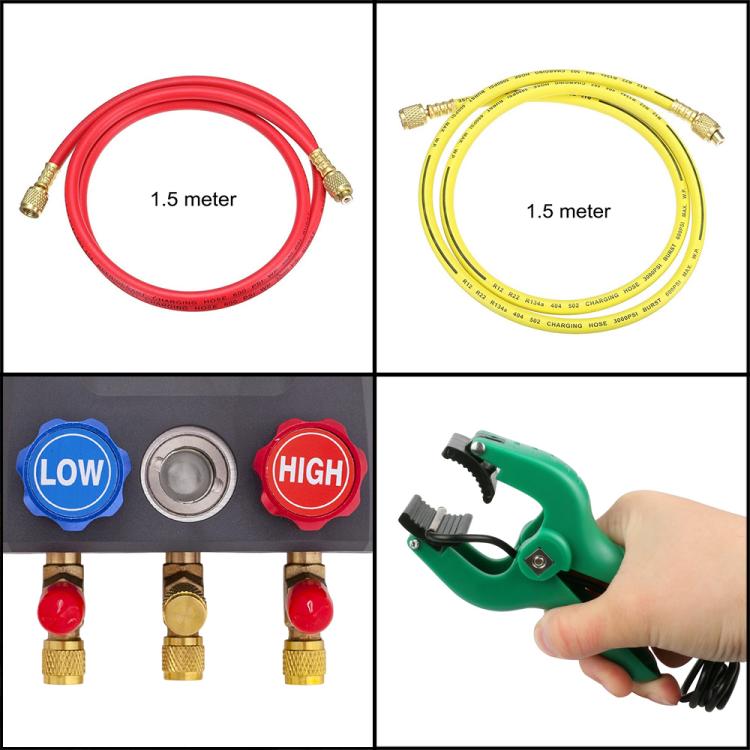

2. The instrument has double pressure test, dual temperature test (need test clip,not include), digital readout, multi-unit switching, multi-mode function and built-in refrigerant database.
3. The instrument uses high-strength engineering plastics and flexible non-slip silicone design, the whole machine is solid and comfortable to hold. Built-in 32-bit digital processing unit and high-precision data acquisition unit, high data and stability.

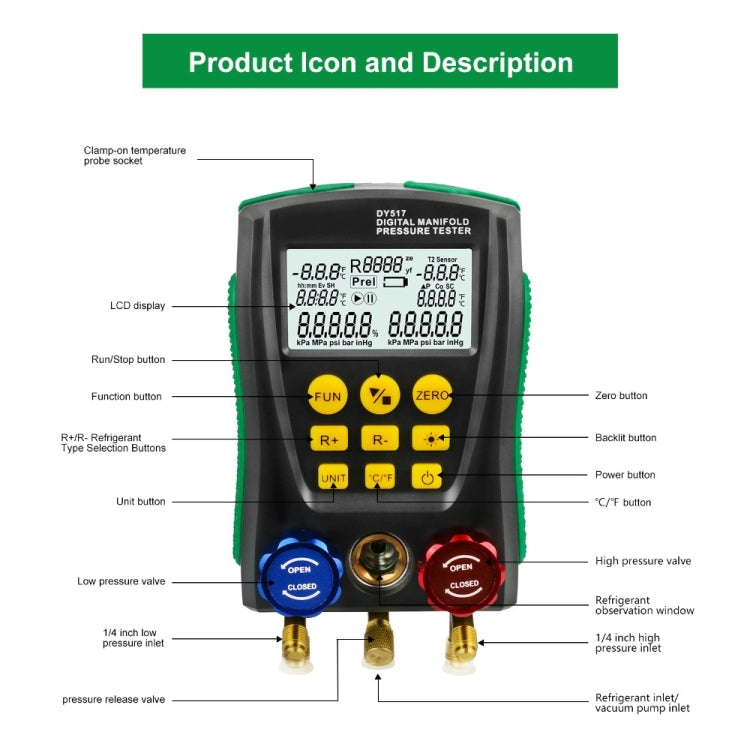

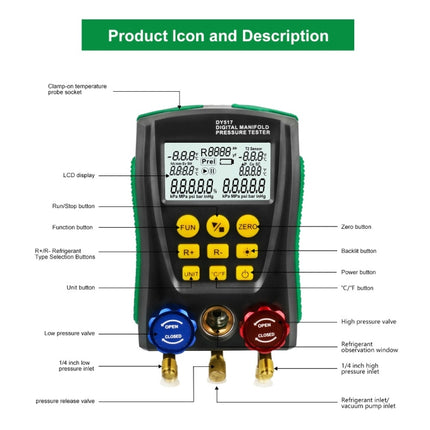

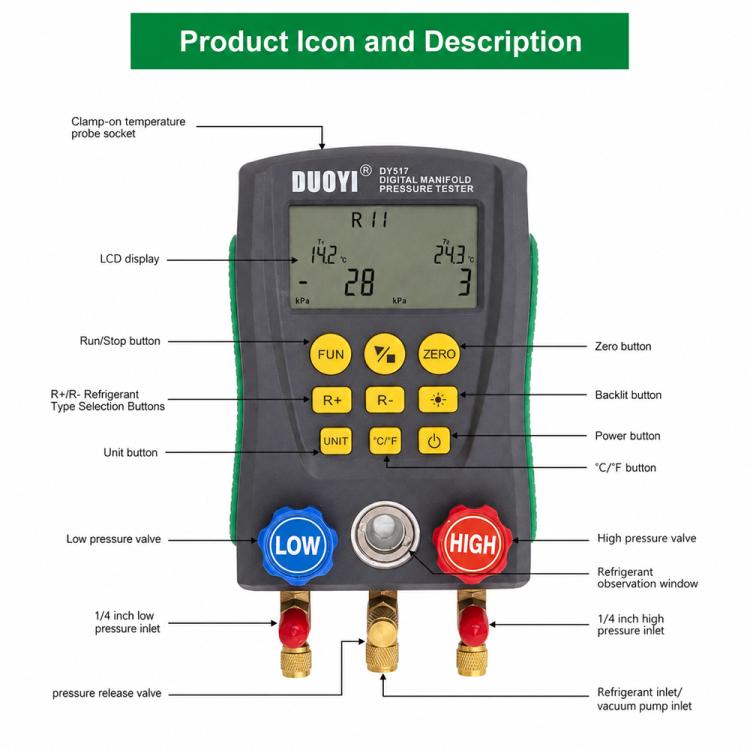

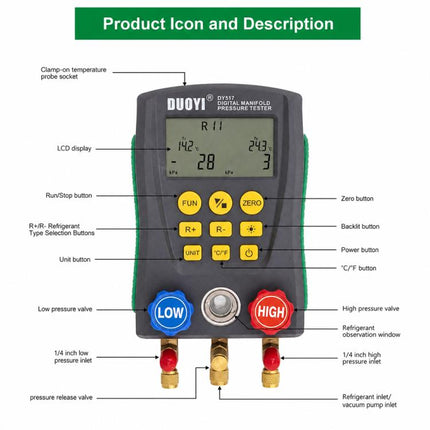

4. Large-size liquid crystal display, LCD backlight support, data display clear and easy to read, convenient light operation. Long-life valve switch, 1/4-inch standard interface design to ensure that the durability and versatility of instrument.
5. The instrument can measure double pressure (gauge pressure) at the same time, as well as dual temperature measurement (need test clip,not include), with automatic multi-unit pressure conversion, automatic conversion of temperature Celsius / Fahrenheit, to facilitate different needs.
6. Built-in 89 kinds of refrigerant pressure-evaporation temperature database, also calculate the subcooling superheat, to facilitate direct reading of operating process data. Also it tests percentage of vacuum measurement; pressure leak measurement, leak time speed record.
Specification1. Pressure test: gauge pressure
2. Pressure test unit: Kpa; Mpa; bar; inHg; PSI.
3. Pressure test range: 0 Kpa-6000 Kpa
4. Pressure test resolution: 1 Kpa
5. Pressure test accuracy: +/- 0.5 %(FS)+ 5dgt
6. Pressure overload limit: 10000 Kpa (10 Mpa; 100 bar;)
7. Vacuum test: relative vacuum
8. Vacuum test unit: Kpa; Mpa; bar; inHg; PSI.
9. Vacuum test range: -101 Kpa-0 Kpa
10. Vacuum test resolution: 1 Kpa
11. Temperature test range: -40-150degree Celsius
12. Temperature test resolution:
0.1 degree Celsius (-40-99.9degree Celsius), 1degree Celsius(100-150degree Celsius)
13. Temperature test accuracy: +/- 0.5 degree Celsius + 2dgt +/- 0.9 Fahrenheit + 2dgt
14. Power Supply: 4 x 1.5V (SIZE.AA / LR6) Battery not include

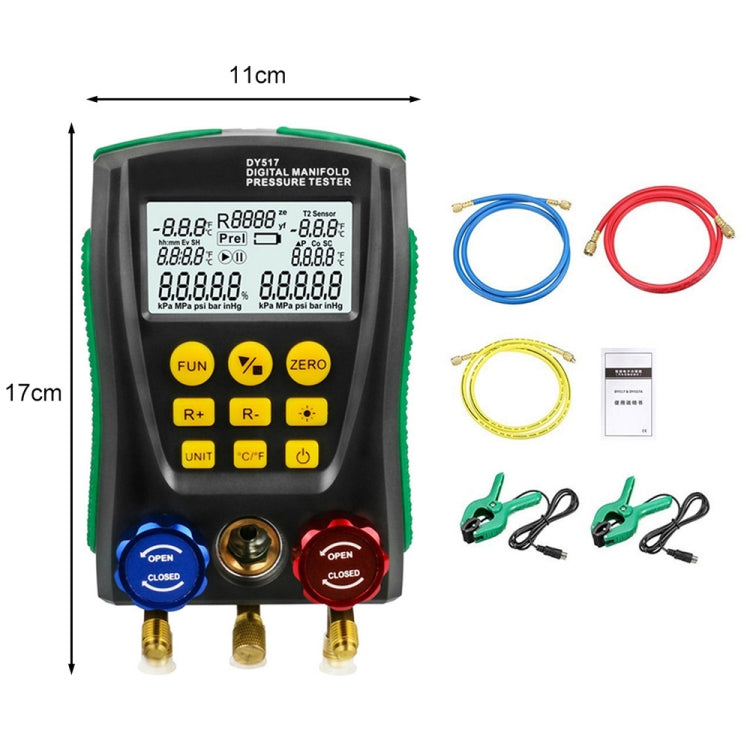

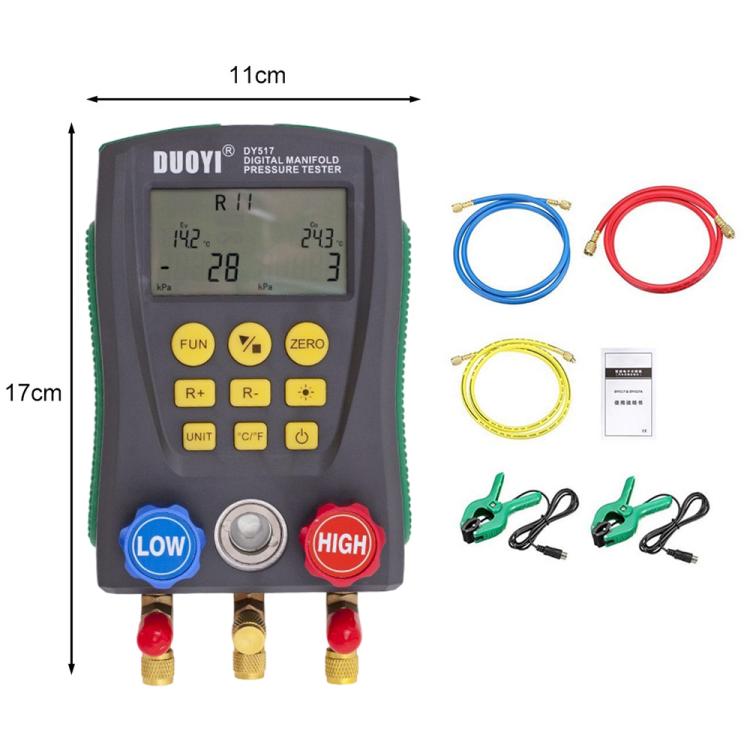

15. Dimensions: 170x110x50mm
16. Weight: 950g
Specification:
| Package Weight |
| One Package Weight |
1.93kgs / 4.25lb |
| One Package Size |
28cm * 22cm * 22cm / 11.02inch * 8.66inch * 8.66inch |
| Carton Weight |
12.63kgs / 27.84lb |
| Carton Size |
48cm * 42cm * 42cm / 18.9inch * 16.54inch * 16.54inch |
| Loading Container |
20GP: 314 cartons * 6 pcs = 1884 pcs
40HQ: 731 cartons * 6 pcs = 4386 pcs
|
|
