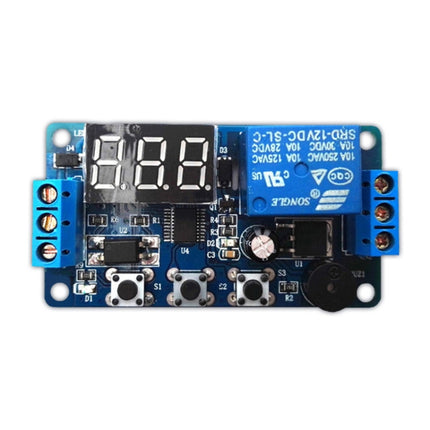

Description

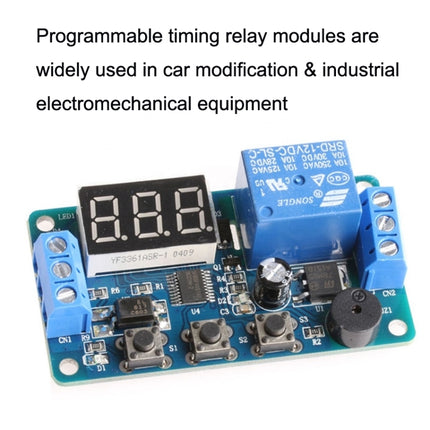

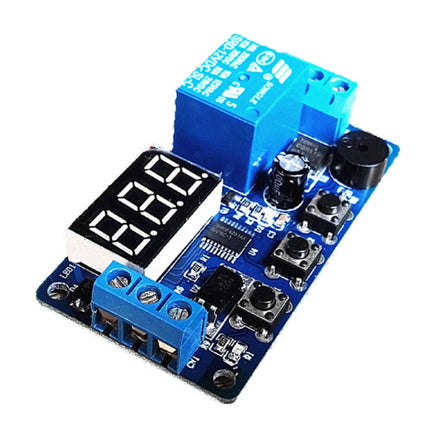

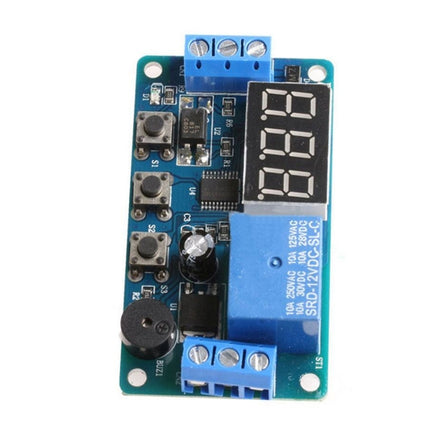

1. Programmable timing relay modules are widely used in car modification & industrial electromechanical equipment
2. Voltage input anti-reverse connection circuit, worry-free wiring
3. Signal input optocoupler isolation, strong anti-interference ability
4. Set parameters for long-term memory after power off
5. Powerful FLASH MCU online programming function, according to user needs, you can contact the manufacturer to customize the required functions
6. Working temperature: -40 to 85 degrees Celsius
7. Working voltage: DC12V (normal working voltage DC1OV-16V)
8. Signal source: DC4V-20V (common power supply positive trigger, button, PNP sensor, PLC signal, etc.)
9. Output capability: It can control equipment within DC 30V5A or AC 220V5A
10. Static current: 20MA
11. Working current: 50MA
12. Service life: more than 100,000 times
13. Size: 64.2 x 34.8 x 18.5MM
14. Net weight: about 26G

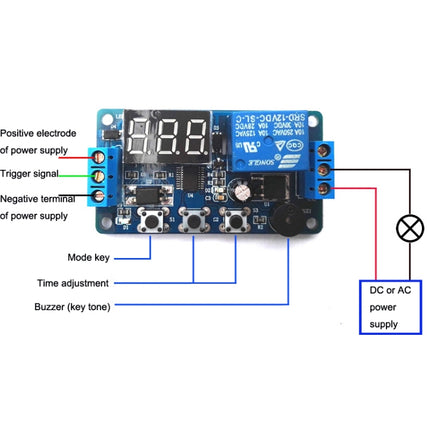

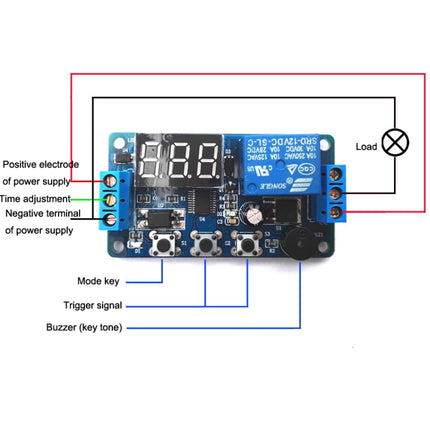

Pattern introduction
- P-1: trigger received
- A1: Triggering again during the delay is invalid
- A2: Re-timing is triggered again during the delay
- A3: During the delay period, the relay is triggered again to reset and terminate the timing appliance, the Y time starts, and the relay is disconnected when the timing ends
- P-2: Receive a trigger signal, start X time, and continue when time ends
- P-3: Cycling switch mode
- A1: The relay is turned on after the power is turned on, and it is turned off when the timing is over, infinite loop
- A2: The relay is disconnected after the power is turned on, and it is connected after the timing is over, infinite loop
- P-4: After receiving the trigger signal, the relay will continue to be connected until the signal disappears and start timing. After the timing ends, the relay will be disconnected. If the trigger signal is received again during the delay period, the delay will be canceled until the signal disappears, and the timing will be restarted.
