Description

1. Software Version: C502 V10.1
2. Supports for the Mercedes-Benz models before 2016
Include Chassis: 117, 129, 140, 156, 163, 164, 166, 168, 169, 170, 171, 172, 176, 197, 199, 202, 203, 204, 205, 207, 208, 209, 210,211, 212, 215, 216, 217, 218, 219, 220, 221, 222, 230, 231, 240, 245, 246, 251, 253, 292, 461, 463, X 164, X 204.
Note: 1. It does not support Mercedes-Benz cars before 2016 without OBD2 interface. 2. Does not support Smart and Sprinter models.
3. Functions: Read codes, Erase codes, ECU information

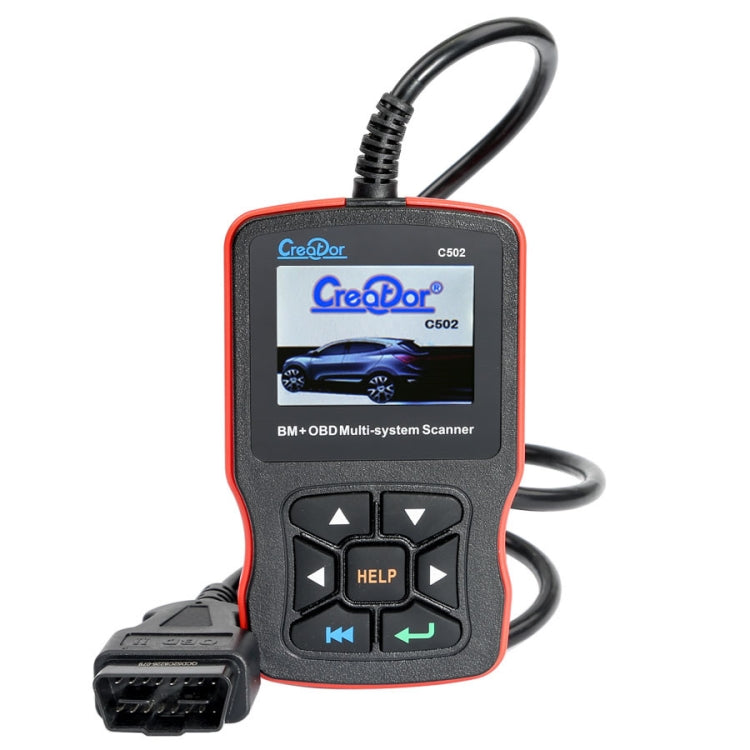

4. Creator C502 OBDII & EOBD Software Description:
Easily determines the cause of the Check Engine Light ( MIL)
Retrieves generic (P0, P2, P3, and U0) and manufacturer specific (P1, P3,and U1) codes
Turns off Check Engine Light (MIL), clears codes and resets monitors
Displays DTC definitions on unit screen
Views freeze frame data
Identifies pending codes
Reads live PCM datastream
Graph displays live PCM datastream
Read I/M Readiness Status
Displays live O2 sensor test data
Performs modules present test
Retrieves vehicle information (VIN, CIN and CVN)
Supports CAN (Controller Area Network) and all other current OBD-II protocols
5. Specifications:
(1). Display: Color, 320 x 240 pixel display with contrast adjustment
(2). Operation Temperature: - 20~75 degree Celsius
(3). Storage Temperature: -40~120 degree Celsius
(4). Power: 8V -- 24V
6. A communication error occurs if the scan tool fails to communicate with the vehicle ECU (Engine Control Unit).
You need to do the following to check up:
(1). Verify that the ignition is ON;
(2). Check if the scan tools OBD II connector is securely connected to the DLC of vehicle;
(3). Verify that the vehicle is OBD2 compliant;
(4). Turn the ignition off and wait for about 10 seconds. Turn the
(5). Ignition back to on and continue the testing.
(6). Verify the control module is not defective
7. Scan tool does not power up
If the scan tool won not power up or operates incorrectly in any other way, you need to do the following to check up:
(1). Check if the scan tool OBD II connector is securely connected to the DLC of vehicle;
(2). Check if the DLC pins are bent or broken. Clean the DLC pins if necessary.
(3). Check vehicle battery to make sure it is still good with at least 8.0 volts.

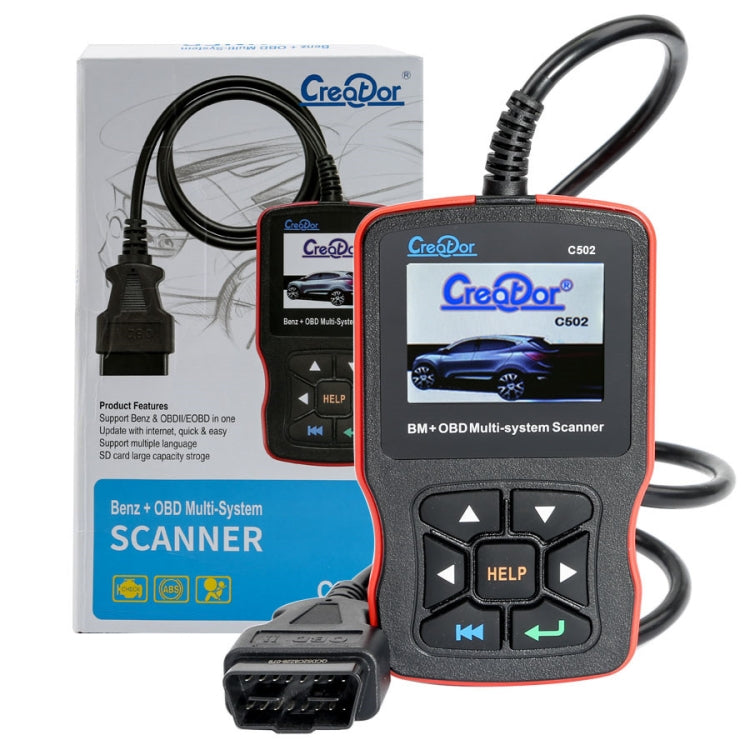

8. Package List:
1 x C502 Machine
1 x Manual
