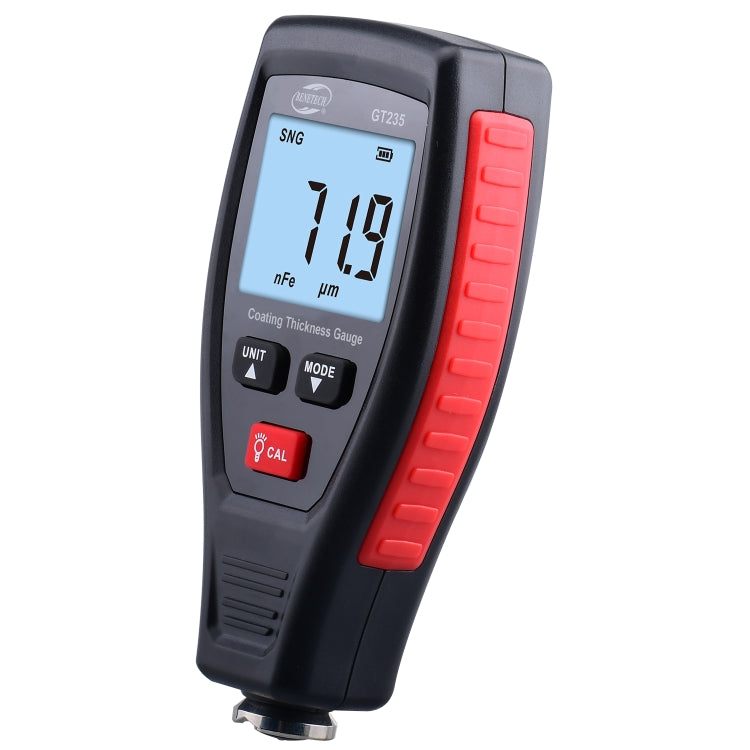

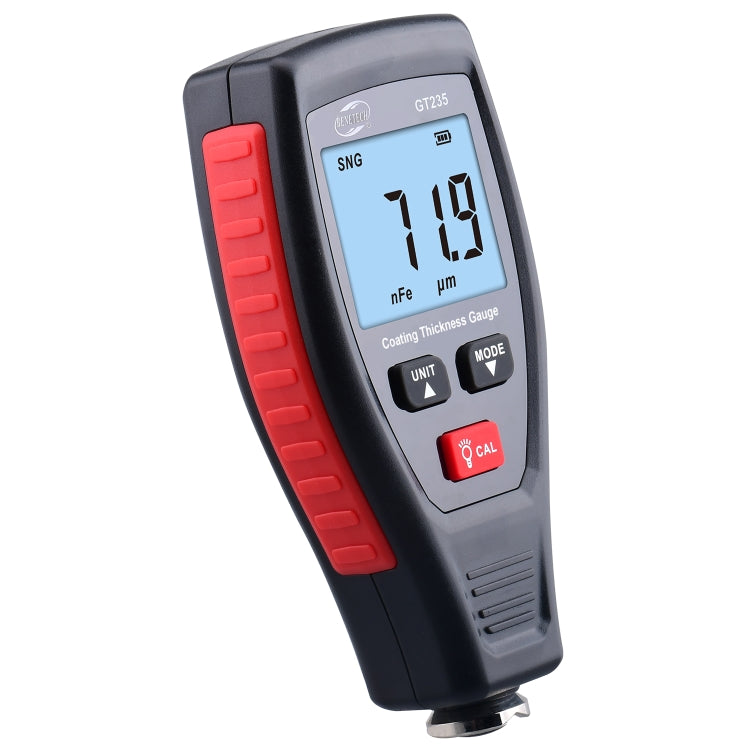

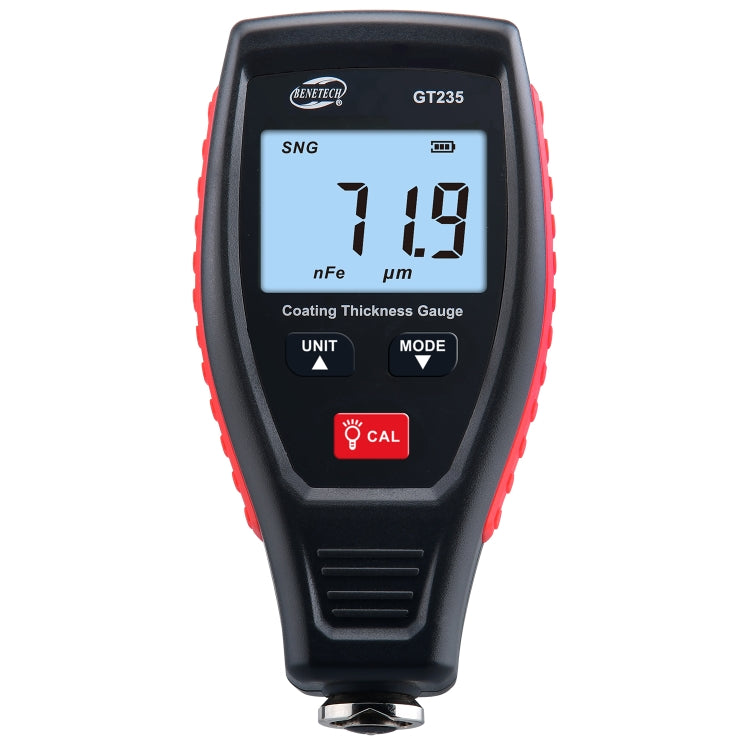

Description

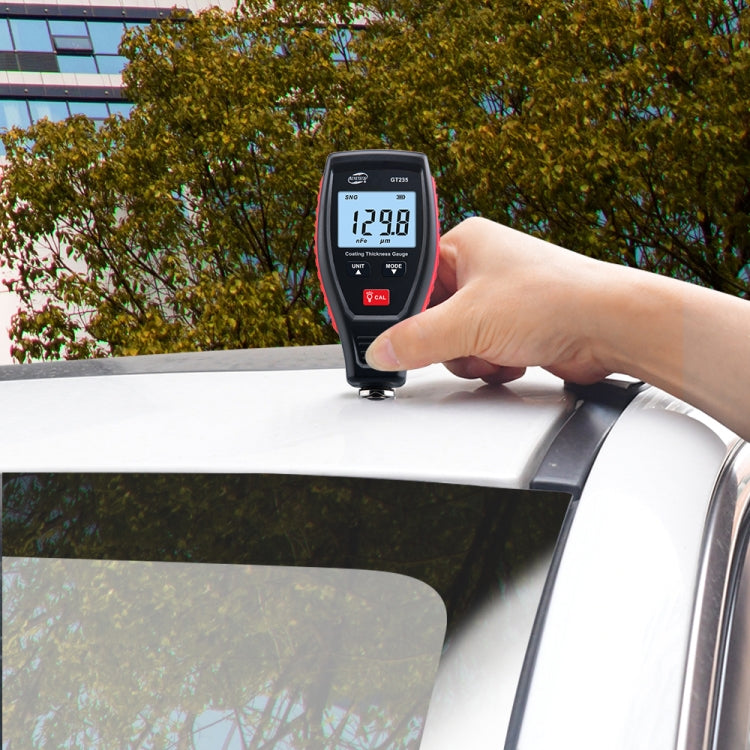

Features1. Measuring the thickness of non-magnetic coating on the magnetic metal substrate.
2. Measuring the thickness of the non-metallic coating on the non-magnetic metal substrate.
3. Automatically identifying the non-magnetic metal substrate and magnetic metal substrate.
4. Single measurement, continuous measurement and differential measurement available.
5. Zero-point calibration, Offset Calibration and basic calibration available.
6. Metric and imperial units of measurement optional.
7. LCD backlight.
8. Automatic shutdown.
Specification1. The measurement range: 0 ~ 1800pm / 70.8mi/18mm
2. Resolution: (0.1 um(less than 100um), pm( greater than or equal 100pm)0.1mil 0.001mm less thano r equal 150um, +/-5um
3. Measurement error: Greater than 150 um,+/-(3%H+1pm)
4. The lower limit diameter of magnetic matrix: 12mm
5. The lower limit thickness of magnetic matrix: 0.5mm
6. The lower limit curvature radius of magnetic convex matrix: 2mm
7. The lower limit curvature radius of magnetic concave substrate: 11mm
8. The lower limit diameter of nonmagnetic matrix:50mn
9. The lower limit thickness of non-magnetic substrate: 0.5mm
10. Operating temperature: 20 ~ + 40 degree C (it is recommended to use the working temperature range in different environments, especially when the temperature difference is large, it needs to be recalibrated before use)
11. Working humidity range: 10 ~ 95% RH

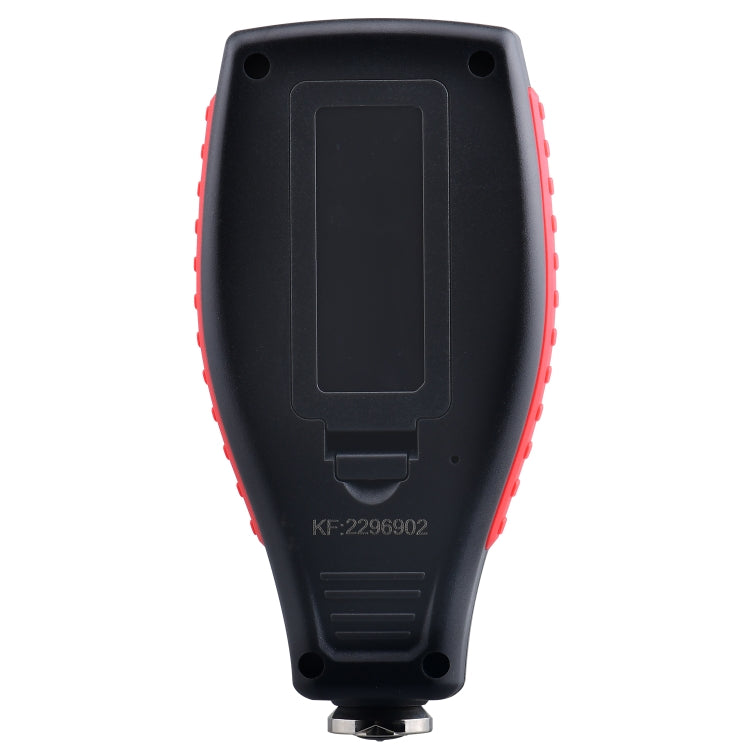

12. Battery 1.5V AAA alkaline battery x 2 (not included)

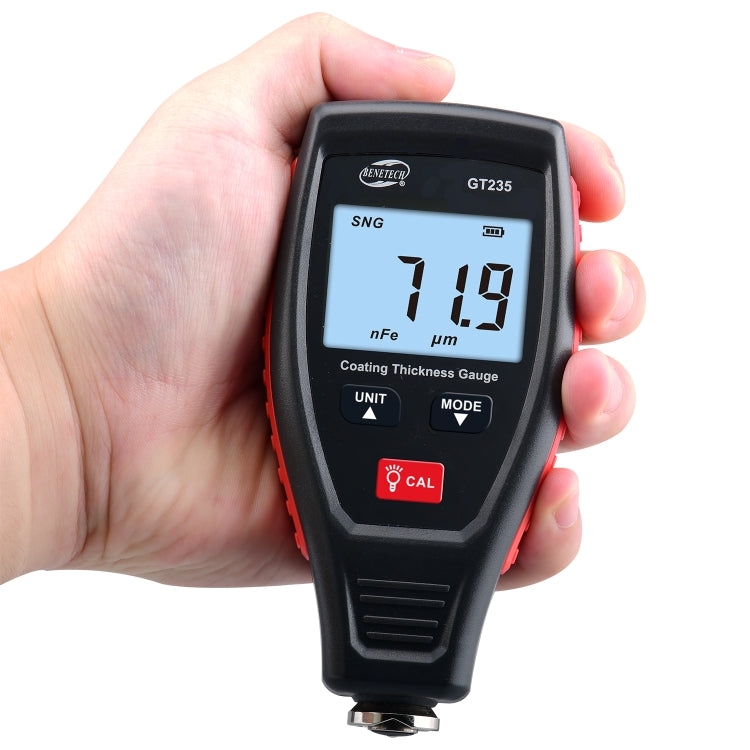

13. Dimension: 62 x 27 x 121.5mm
14. Weight: 105.03g
Specification:
| Package Weight |
| One Package Weight |
0.32kgs / 0.71lb |
| One Package Size |
18cm * 14cm * 6cm / 7.09inch * 5.51inch * 2.36inch |
| Carton Weight |
19.00kgs / 41.89lb |
| Carton Size |
57cm * 41cm * 45cm / 22.44inch * 16.14inch * 17.72inch |
| Loading Container |
20GP: 253 cartons * 60 pcs = 15180 pcs
40HQ: 588 cartons * 60 pcs = 35280 pcs
|
|
