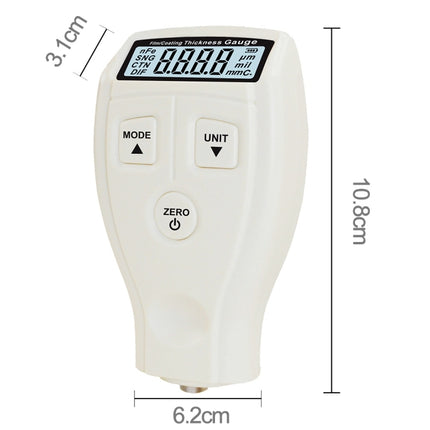

Description

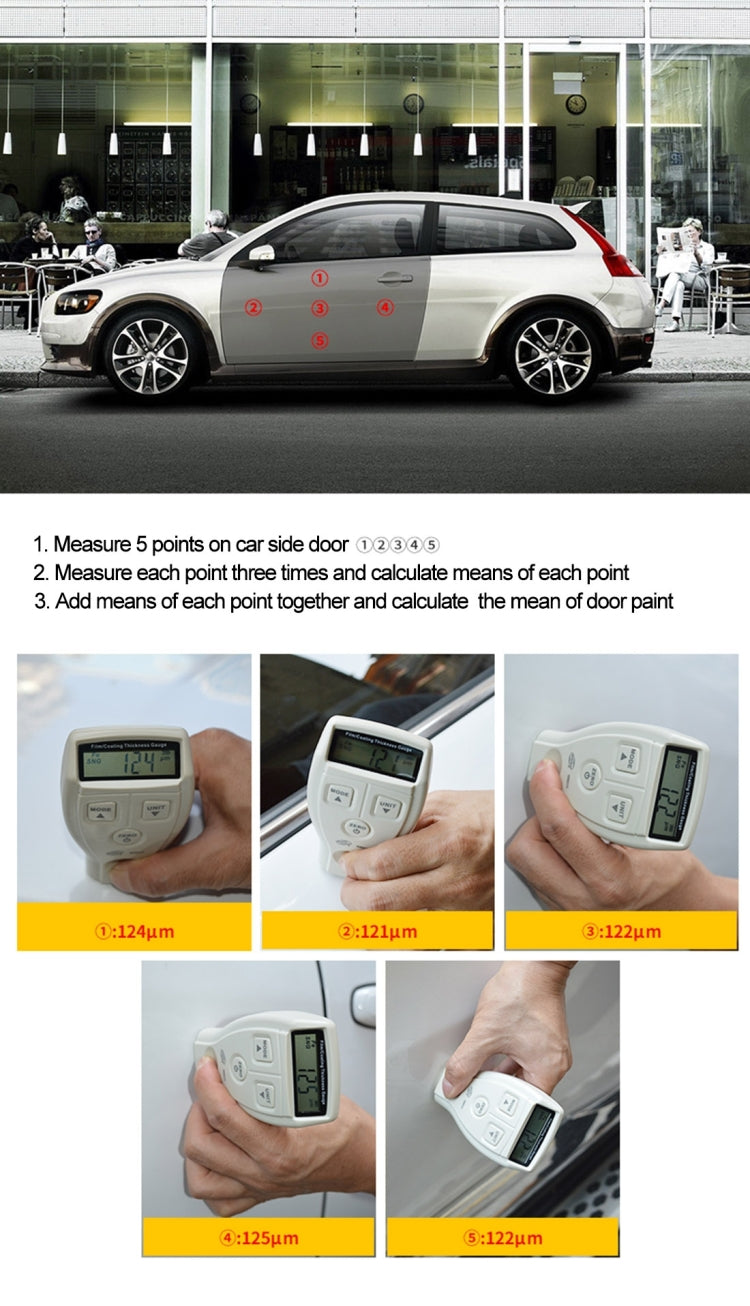

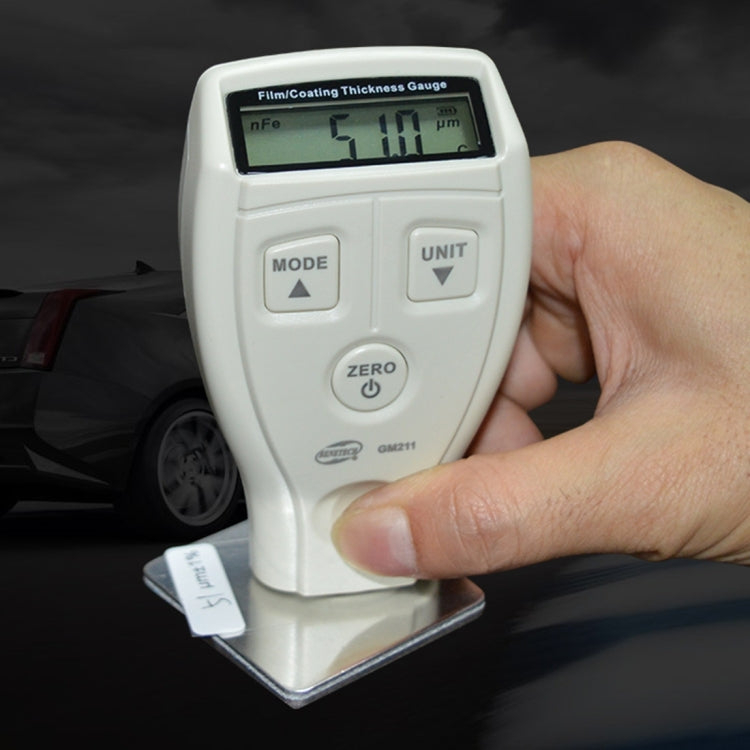

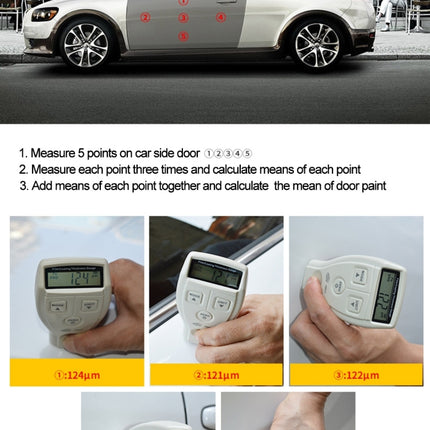

Features1. Measure thickness of surface coatings on metal substrates
2. Single/continuous/differential measurement available

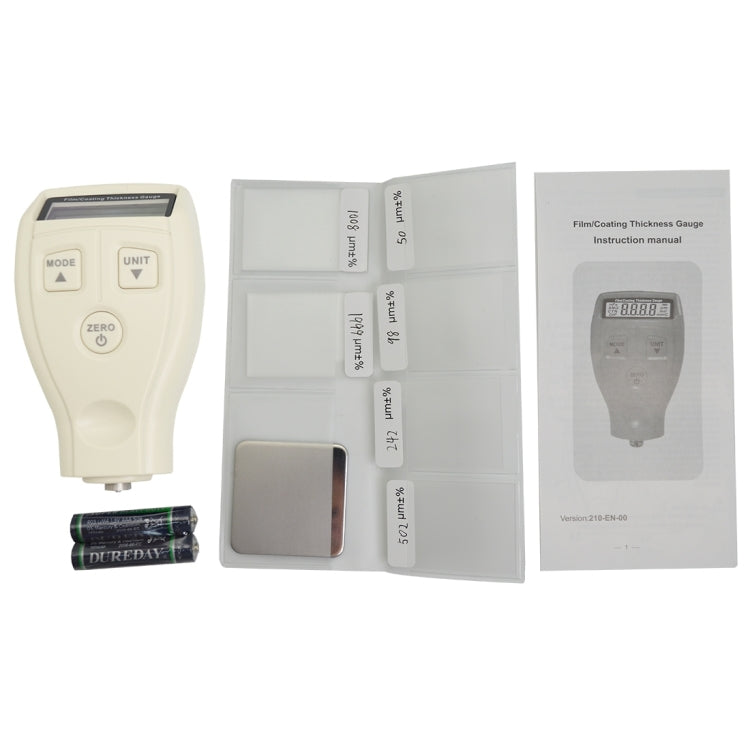

3. Zero-point/2-point/basic calibration available
4. Metric and imperial units of measurement optional

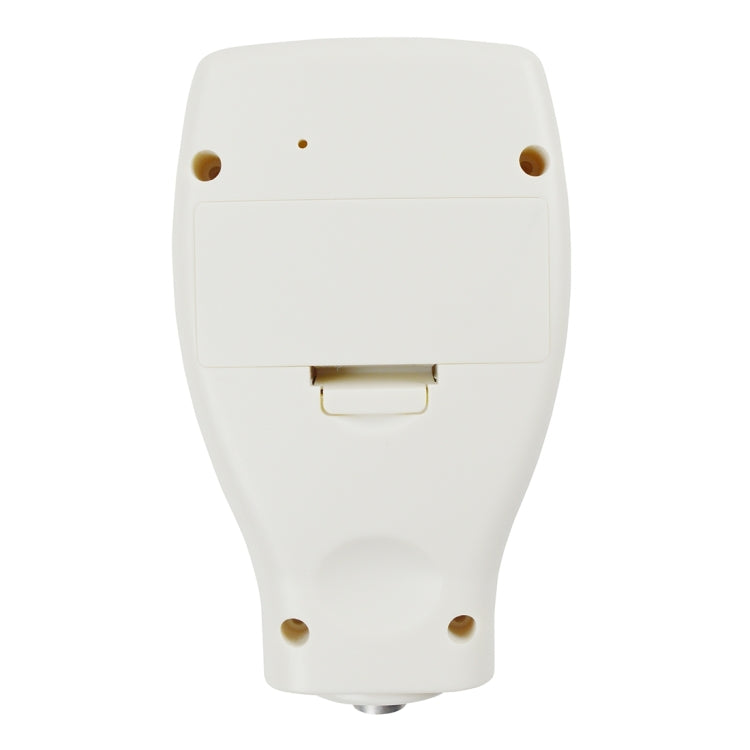

5. Powered by 2 x 1.5V AAA batteries

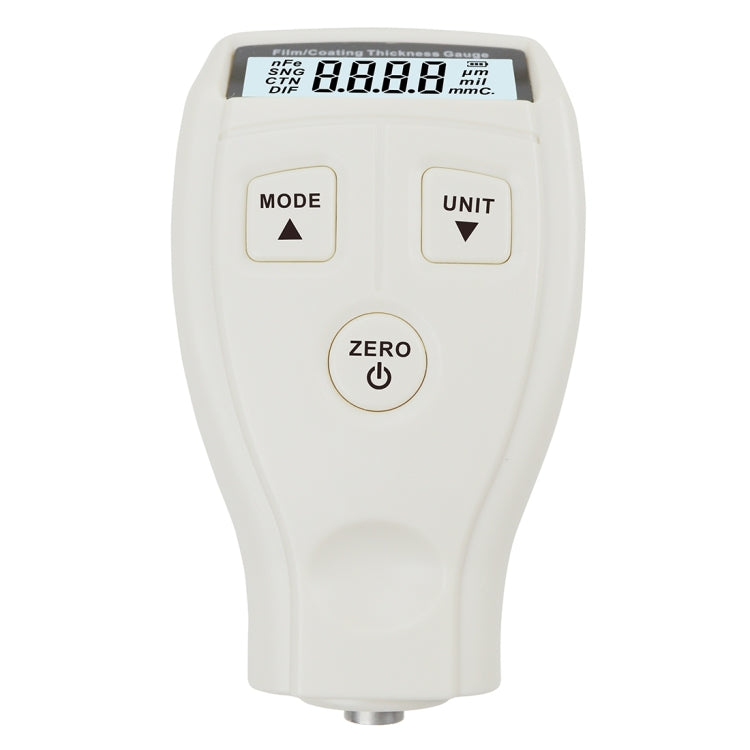

6. LCD backlight
7. Auto power off
Specifications1. Measuring range:0 - 1800 micron / 0 - 70.9 mil
2. Resolution: 0.1 micron/1 micron/0.1 mil
3. Measurement error: +-(3%H + 1 micron)
4. Min diameter of substrate: 12mm
5. Min thickness of substrate: 0.5mm
6. Min curvature radius of convex substrate: 2mm
7. Min curvature radius of concave substrate: 11mm
8. Operating temperature: 0 - 40 celsius degree
9. Operating humidity: 10% - 95% relative humidity
Specification:
| General |

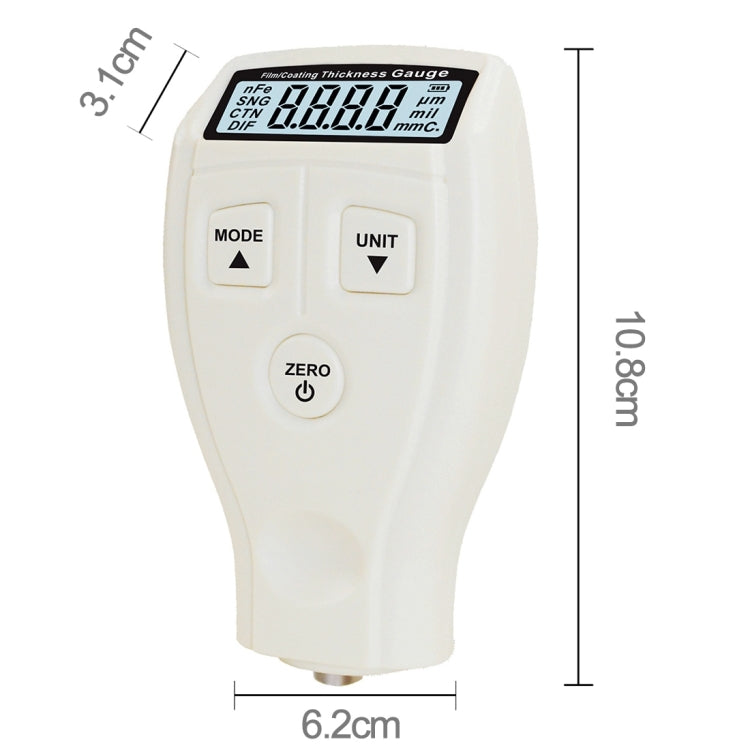

| Weight |
64g (without batteries) |
|
| Package Weight |
| One Package Weight |
0.79kgs / 1.74lb |

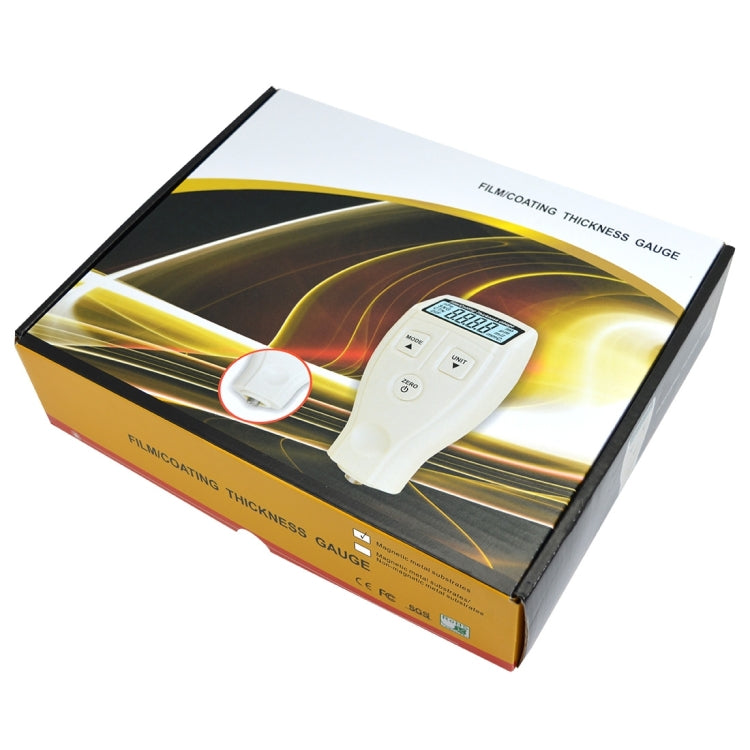

| One Package Size |
27cm * 21cm * 6.3cm / 10.63inch * 8.27inch * 2.48inch |
| Carton Weight |
7.40kgs / 16.31lb |
| Carton Size |
44cm * 34cm * 29cm / 17.32inch * 13.39inch * 11.42inch |
| Loading Container |
20GP: 614 cartons * 10 pcs = 6140 pcs 40HQ: 1426 cartons * 10 pcs = 14260 pcs
|
|
