Description

Note
You need to disable your antivirus software (including the system built-in one) before installation. If you mind this, please do not purchase.

Features

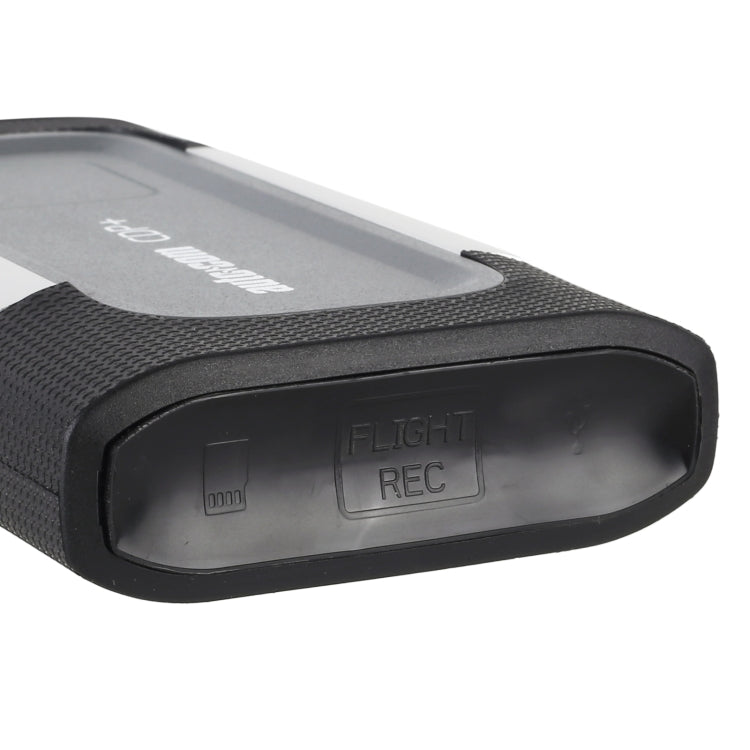

1. Flight Recorder: Records real-time parameters while driving and highlights specific errors with a button press. Built-in memory; no computer needed. Storage card not included.
2. Multi-Color Indicator: Indicates diagnostic status with different colors and sounds, visible from a distance. Alternating blue and green means communication with the vehicle control unit.

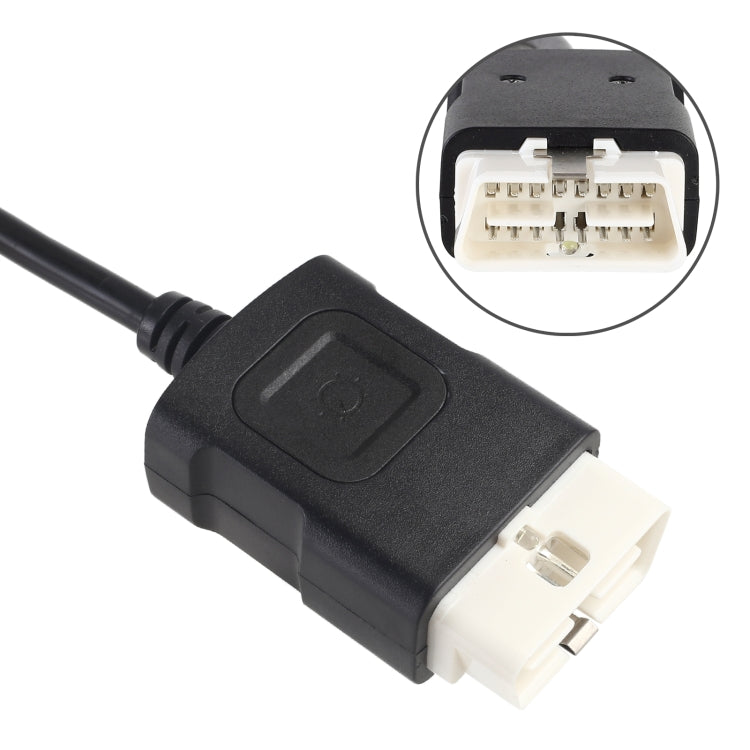

3. LED Connector: Helps locate the 16-pin diagnostic connector in dark or hard-to-reach places. LED works with adapter cables for non-16-pin sockets.
4. Voltage Check: Monitors vehicle battery voltage and adjusts to 12V or 24V levels. Alerts for high or low voltage with sounds and lights, and via the diagnostic software.
5. Chassis Number VIN: Automatically reads the chassis number for correct model and year selection, and common engine codes.
6. ISS: Scans all vehicle systems for fault codes, providing an overview of the vehicle condition. Allows further analysis of specific control systems.
7. ISI: Automatically identifies and selects the correct controllers installed in the vehicle for accurate diagnostics.
8. Report Function: Shows possible adjustments and settings without the vehicle nearby, with help texts for guidance.
9. OBD Functionality: Works with all vehicle types using unique multiplexing technology, and offers certified adapter cables for non-standard connectors.
10. Universal: Detailed instructions and help texts for OBD functions like adjustments and programming, making complex tasks easier.
11. Help Function: Provides step-by-step guides for prerequisites, preparation, and implementation of OBD functions.
12. Suitable for WIN7 computer system

Note: Not suitable for BMW cars

About The Protuct

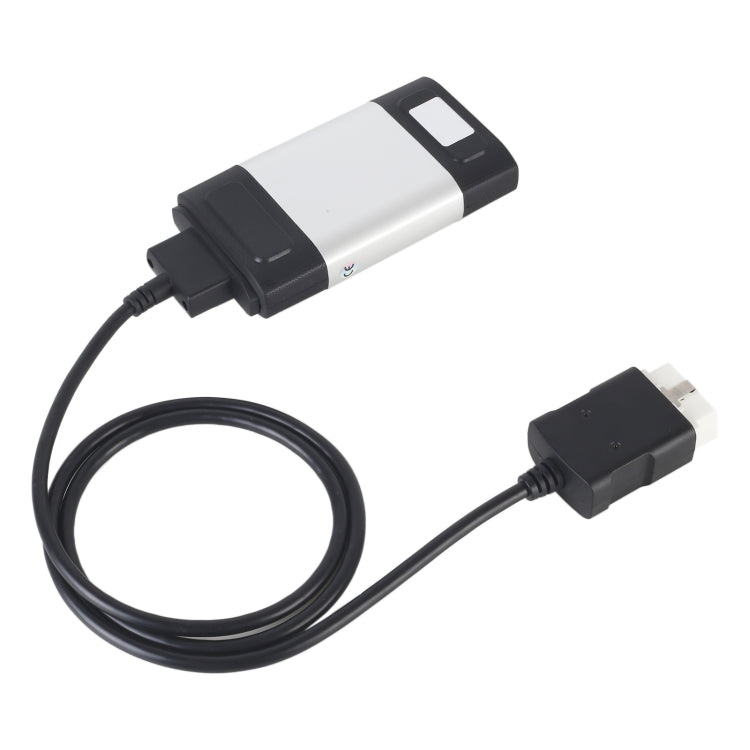

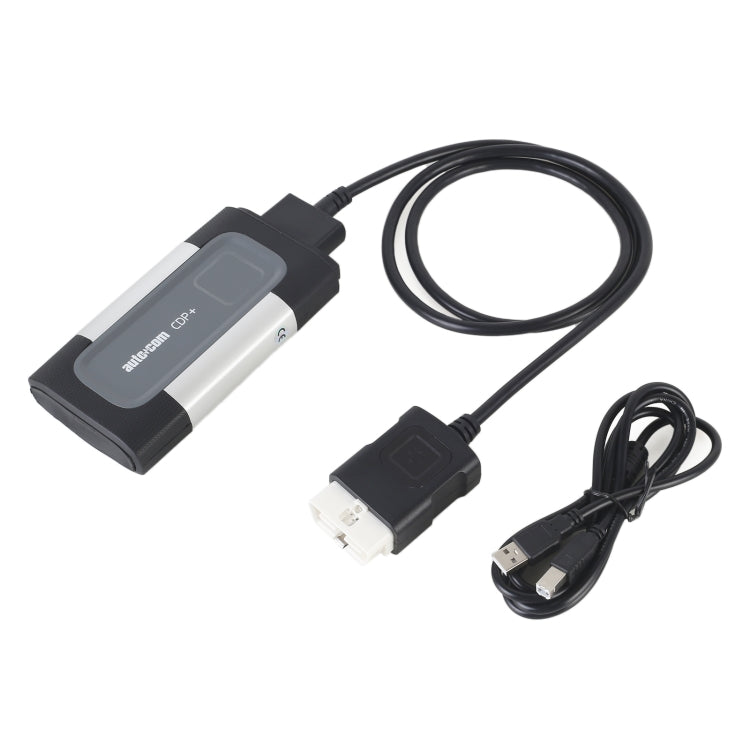

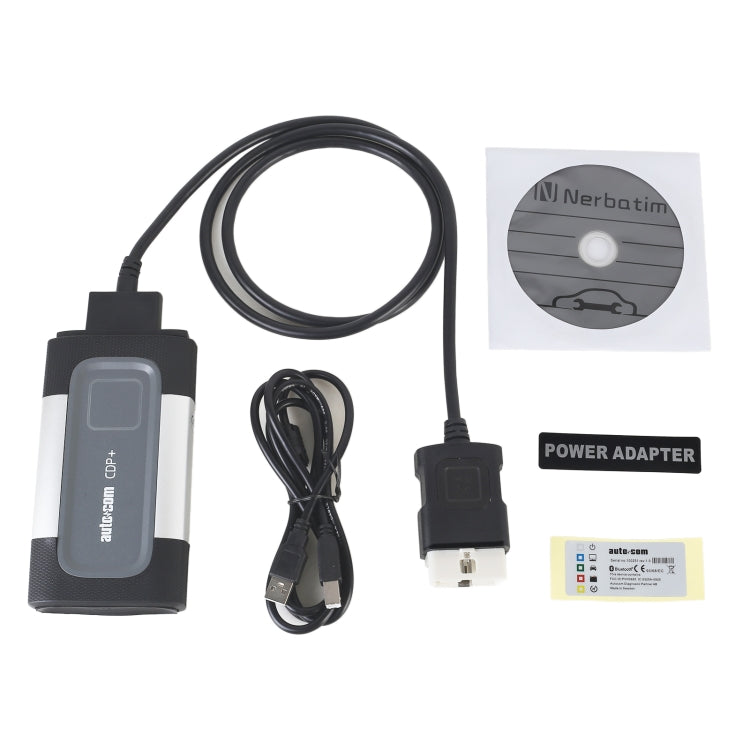

1. The Autocom CDP+ is a diagnostic tool used wired with a PC or pocket PC and auto coms powerful CARS diagnostic software, making it a powerful and flexible tool for all vehicle shops, fleet owners, vehicle testing, road service, police and armed forces.
2. CDP+ is a quick and reliable diagnostic tool serving as a link between vehicle and computer. It works on both old and new vehicles.
3. Simply connect CDP+ to the diagnostic socket in the vehicle and it will communicate wired with the diagnostic software installed on your PC.
4. With CARS, you are able to perform brand specific diagnostics for cars and light vans from 1988 onwards. A total of 47 different brands. With TRUCKS software package, you are able to perform brand specific diagnostics for light and heavy commercial vehicles, buses and trailers from 1995 onwards. A total of 37 different brands. The diagnostic program GENERIC is designed for the legislation based diagnostics, specially targeted for emission related fault codes. GENERIC is included in CARS and TRUCKS packages.Multiplexer function, 2xHS CAN (ISO 11898-2), SW CAN (SAE J2411), K/L (ISO 9141-2), VPW (J1850), PWM (J1850), RS485 (J1708), TTL and(SPI, analog in, 5volt out).

Specifications

• Usage: Indoor & outdoor

Pros and cons

• Sustainably produced
• Ideal for everyday use
• May discolor in direct sunlight
