Description
1. Support: AHD/TVI/CVI/CVBS/IP five signals
2. Step on the Internet: With cloud service, easy to achieve a variety of network penetrations, one step to remote monitoring, getting rid of various complicated network settings, easy and simple to operate.
3. Compression algorithm ideal: H.264 compression algorithm, 30% decrease of stream due to advanced space-time filtering technology.
4. Playback quality: Support full real-time encoding video, full real-time playback of multi-channel synchronous decoding.
5. Main and Sub Stream: Main stream and Sub-stream encoding. Main stream for local storage, ensure image quality; Sub-stream for real-time network transmission, easy to solve bandwidth bottleneck problem.
6. Mobile monitor: Support various mobile monitoring(iPhone, Windows Mobile, BlackBerry, Symbian, Android).
7. Display: VGA HD output simultaneously, support VGA 1080p HD output, lead the technology of HD resolution.
8. Operation interface: Similar to Windows operating style, easy to get started with powerful mouse right-click function.
9. Network: Powerful network services (support DHCP, PPPOE, FTP, DNS, DDNS, EMAIL, IP searches etc.) And perfect support (WEB, Client, SDK), easy to achieve interoperability.
10. Browsers: Support IE, Chrome, Firefox, Safari browsers.
11. Remote Access: With DNS (ARSP), easy to monitor remotely, 3322 (Greek network), dyndns, oray (peanut shells), myq-see and other DNS are also provided.
12. Differentiation: Boot screen free replacement, more than twenty languages, over 10 sets of GUI interface, ten kinds of remote control, which make our products different from others.
13. Others: With unique black box technology, the whole process can be monitored, which greatly reduces maintenance costs.
14. Encode capability: 8*1080N @25fqs P/ 30fqs.
15. Decode capability: 4*1080N @18fqs P/18fqs.
16. Multi-Input (ONVIF 2.8) Analogue: 8*1080N, Analogue + Network; HD: 4*1080N(AHD-NH)+7*720P(network), Network: 4*720P.

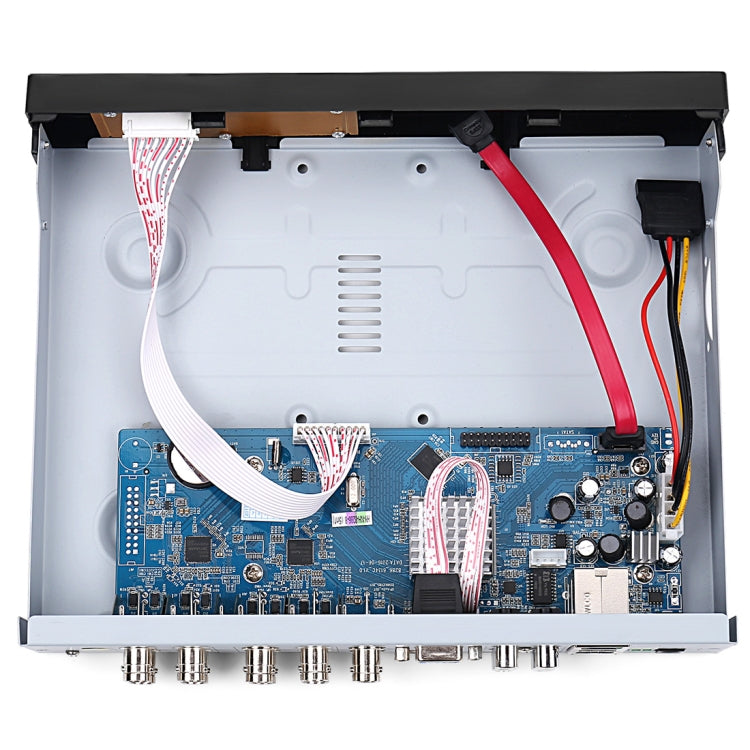

17. CPU Master: GM8286; DDR memory: 1*2G; AD chip: NVP6114A; Flash: W25Q128.
18. Space usage video: 1080N: 25G/day*channel, 720P: 20G/day*channel, 960H: 12-20G/day*channel, audio 691.2M/day*channel.
Specification:
| Media Format |
| Video Compression Format |
H.264 |
| Audio Compression Format |
G711-A |
|
| NVR |
| Recording |
Recording mode: Manual recording, motion detection recording, time recording, alarm recording |

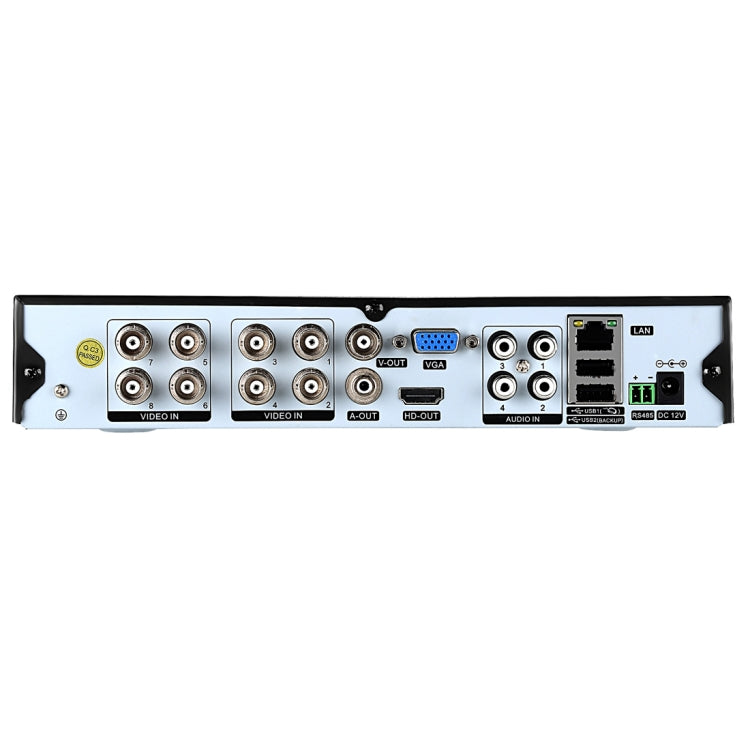

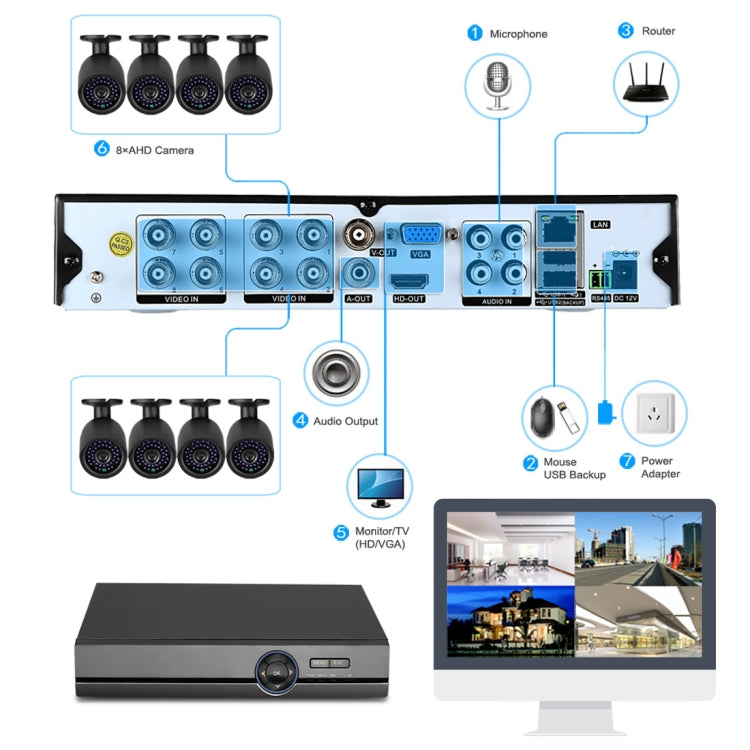

| Video interface |
Video output: 1ch VGA and 1ch HDMI, BNC Port |
| Audio Interface |
4 x RCA input, 1 x RCA output |
| HDMI Output Resolution |
1920x1080 |
| Network |
1*RJ45 10/100 Base-T |

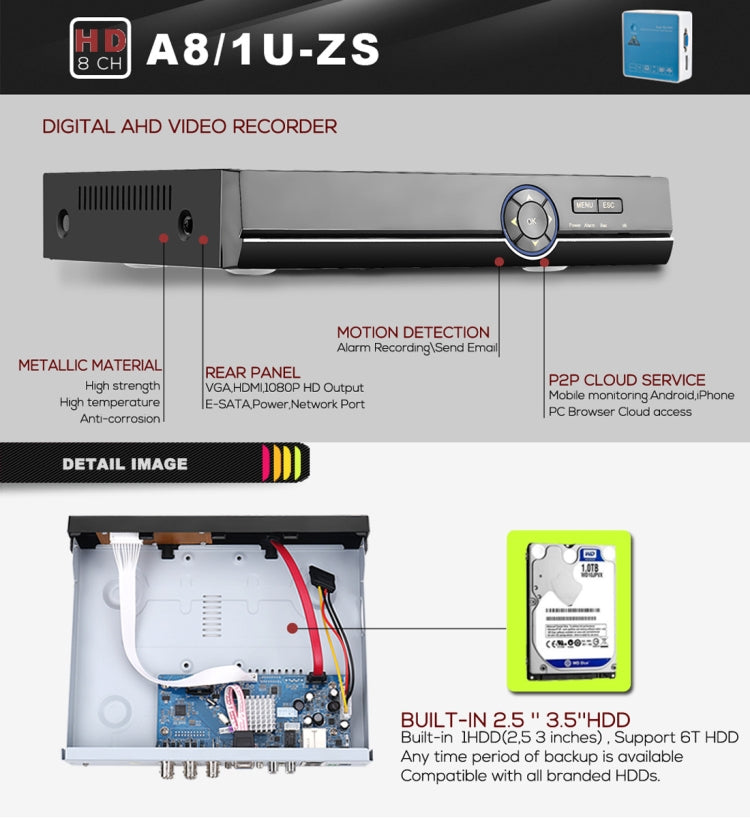

| HDD |
2 SATA HDDs (not included), Max 6TB / PER |
|
| Package Include |
| Package Contents |

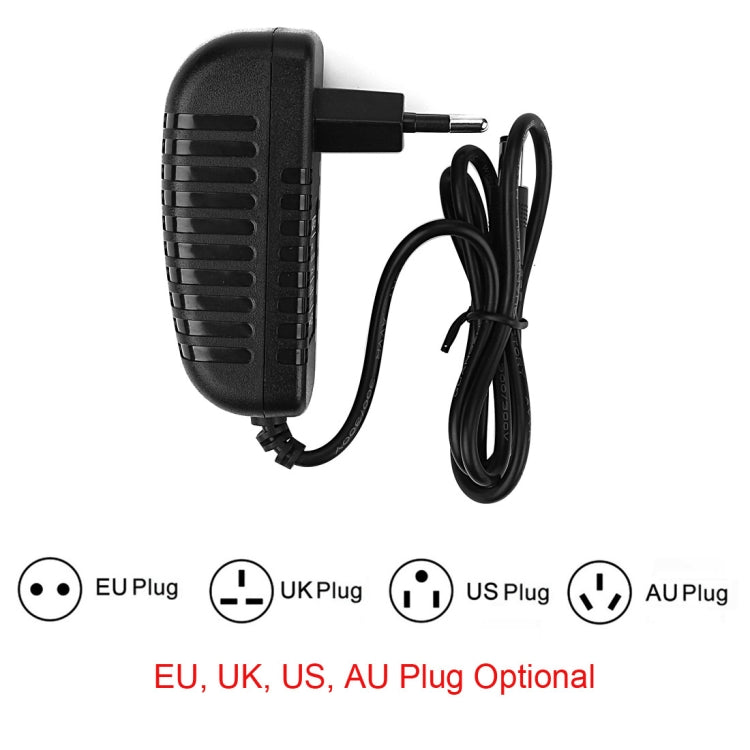

1 x Power Adapter (US, UK, EU, AU Optional)

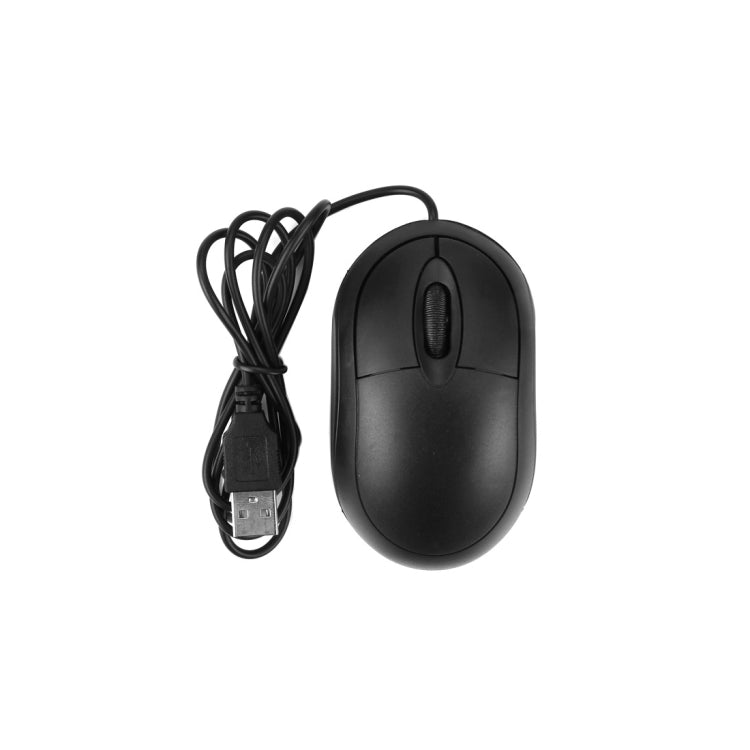

1 x USB Mouse
1 x CD
1 x User Manual

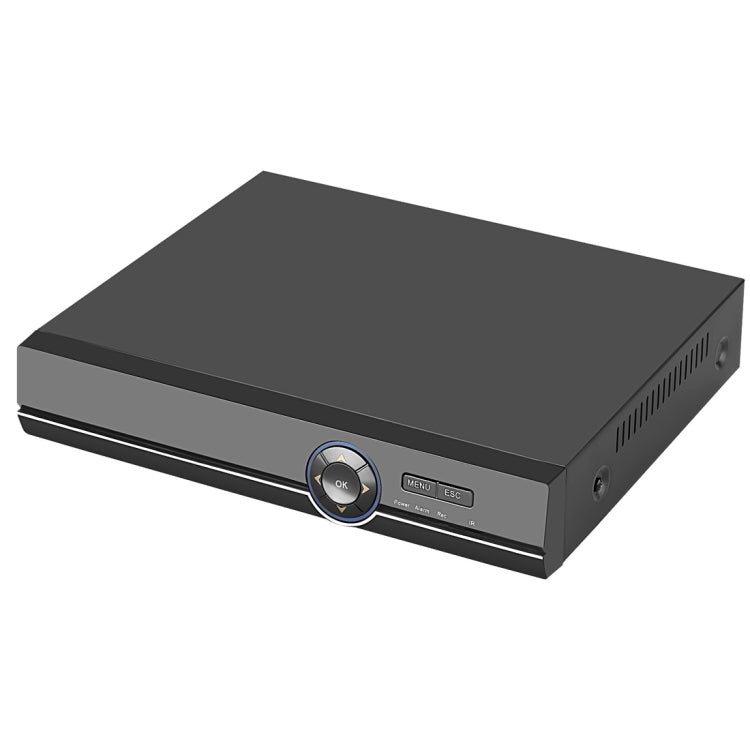

1 x DVR
1 x Mouse
1 x Screws Set |
|
| Package Weight |
| One Package Weight |
1.46kgs / 3.22lb |
| One Package Size |
39cm * 29cm * 11cm / 15.35inch * 11.42inch * 4.33inch |
| Carton Weight |
15.00kgs / 33.07lb |
| Carton Size |
56cm * 60cm * 40cm / 22.05inch * 23.62inch * 15.75inch |
| Loading Container |
20GP: 198 cartons * 10 pcs = 1980 pcs
40HQ: 460 cartons * 10 pcs = 4600 pcs
|
|
