Description

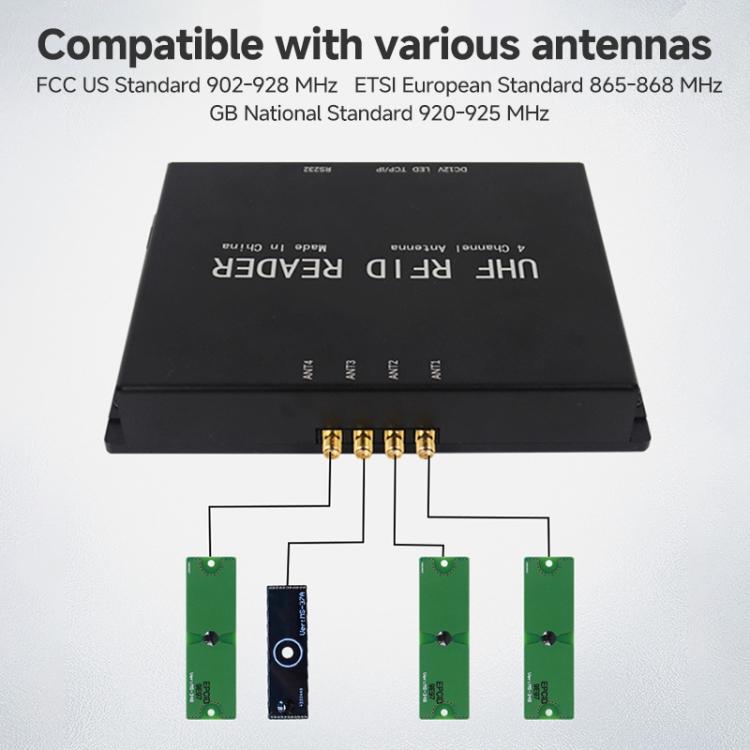

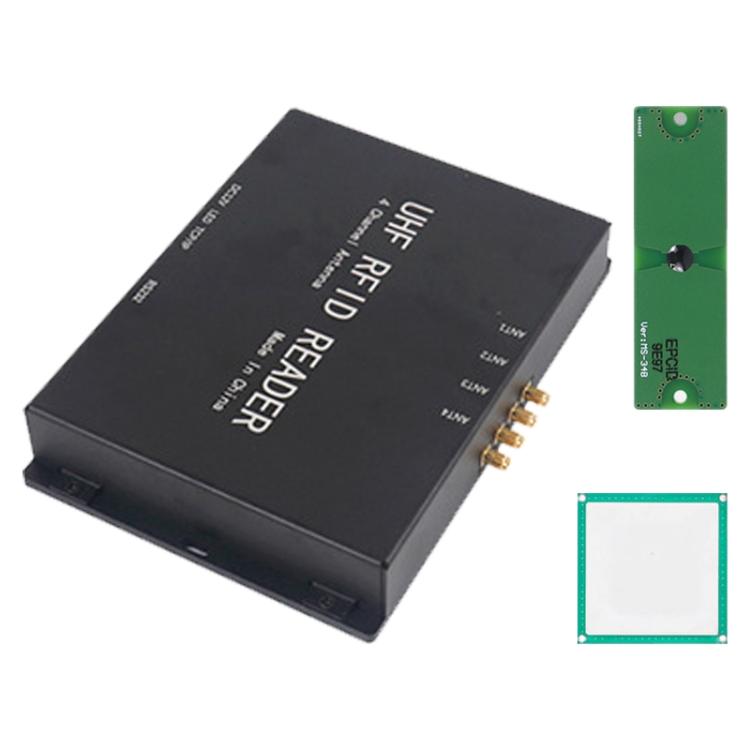

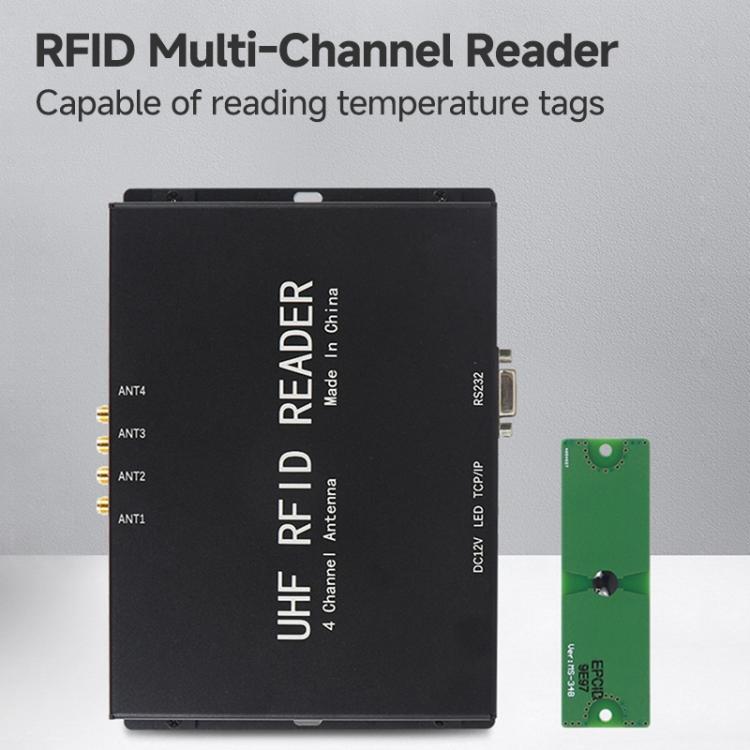

Features1. 4-Channel UHF RFID Temperature Reader: Simultaneously monitor up to 4 antennas for efficient, wide-area coverage.

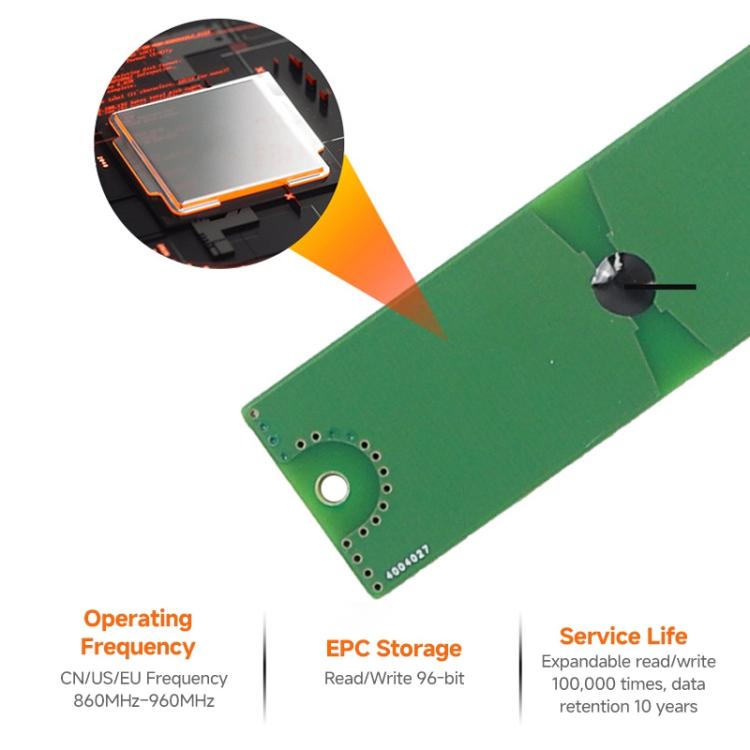

2. Passive Sensor Technology: Reads temperature data from UHF RFID tags without internal batteries, reducing maintenance.
3. MODBUS RTU Protocol: Ensures seamless and reliable integration into industrial automation and power monitoring systems.
4. Real-Time Temperature Monitoring: Ideal for critical applications in electric power equipment, data centers, and cold chain logistics.
5. Long-Range Reading: UHF technology provides a reliable read range for remote or hard-to-access assets.
Specification1. Chip: Impinj E710
2. Working voltage: 12V-24V
3. Working frequency: 860-960MHz
4. Working agreement: IOS18000-6C

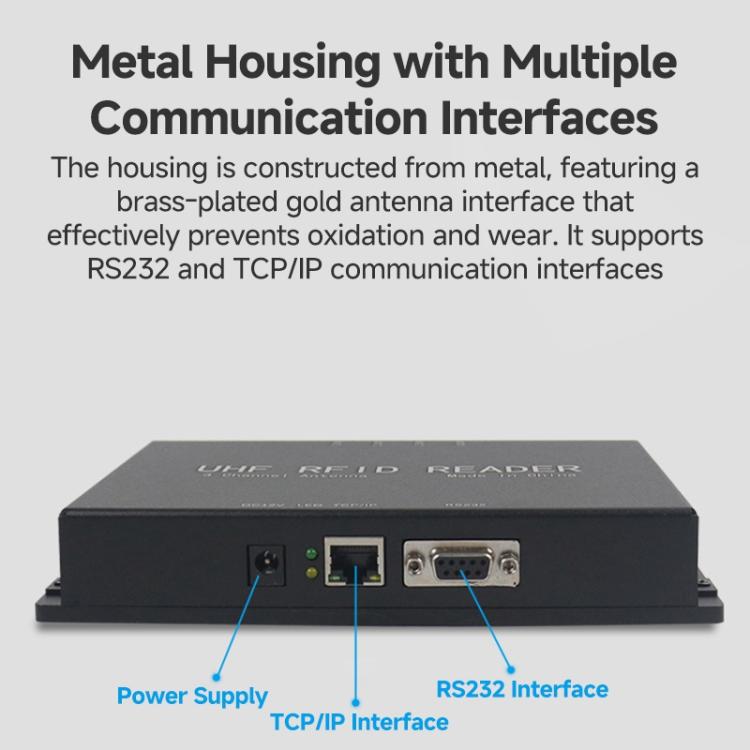

5. Communication interface: RS232, TCP/IP
6. Card reading power: 1~33dBm adjustable
7. Card reading distance: 0-20 meters depending on antenna/tag

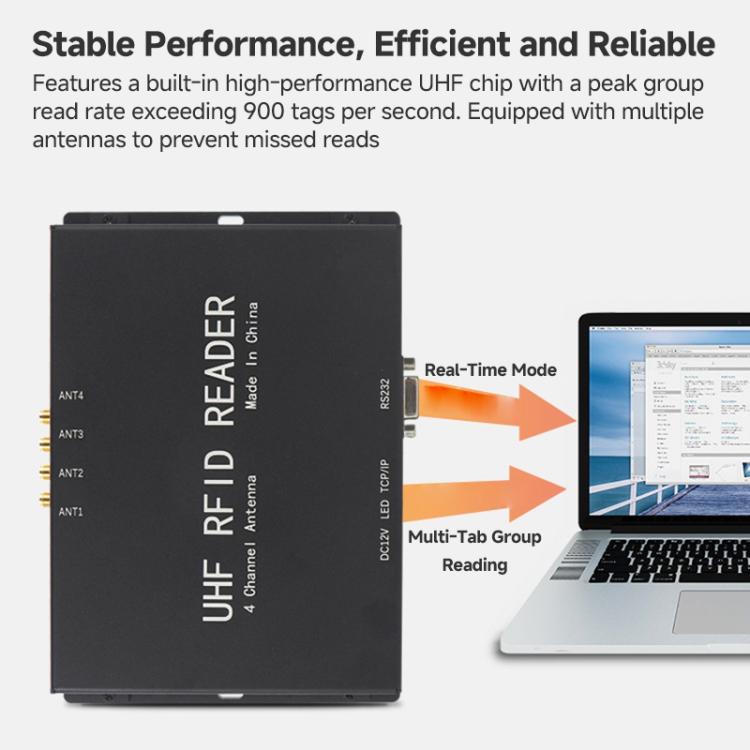

8. Tag group reading: Greater than 900 images/second (top point)
9. Working temperature: -20 degree C~+65 degree C
10. Product size: 185x130x30mm
Specification:
| Package Weight |
| One Package Weight |
2.03kgs / 4.48lb |
| One Package Size |
35cm * 20cm * 7cm / 13.78inch * 7.87inch * 2.76inch |
| Carton Weight |
21.00kgs / 46.30lb |
| Carton Size |
42cm * 35cm * 35cm / 16.54inch * 13.78inch * 13.78inch |
| Loading Container |
20GP: 518 cartons * 10 pcs = 5180 pcs 40HQ: 1203 cartons * 10 pcs = 12030 pcs
|
|
