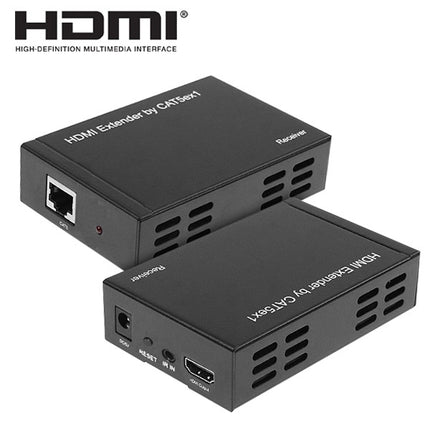

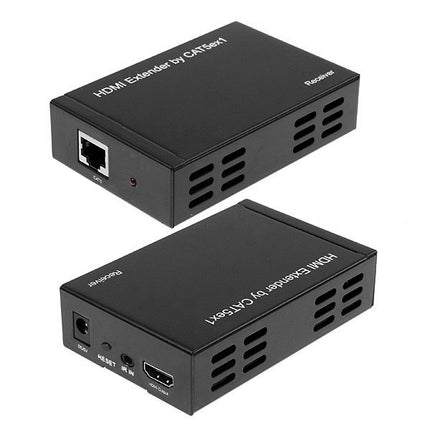

Full HD 1080P HDMI To Extender Transmitter + Receiver over One 100m CAT5E / CAT6 (TCP/IP), 100m

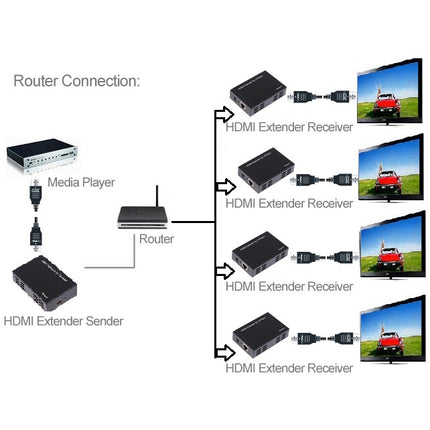

The HDMI Extender over ONE CAT 5E/6 is a tool for extending your HDMI signal over long distances to a compatible display. Instead of using expensive HDMI cables, your existing CAT 5E/6 cables/sockets can be utilized to perform advanced functions like transferring Deep Color (12 bits/color) video and digital audio, with a bandwidth up to 225MHz. The HDMI transmitter and receiver, over ONE CAT 5E/6 extender is your substantial HDMI extender tool. The HDMI Extender over ONE CAT 5E/6 also support IR re-transmitting, so you can control the Source which is 100 meters outside using the HDMI Extender.

Features:

1) DC 5V~12V wide power supply.

2) HDMI 1.3, HDCP 1.1 and DVI1.1 compliant.

3) Support Deep Color up to 12 bits/color.

4) Support IR re-transmitting.

5) Uses one CAT5E/6 cable for data/DDC transmission.

6) Equalizes and recovers incoming TMDS data before re-transmitting it in optimal quality regardless of the incoming signal quality.

7) Cable testing showed that with 1080p resolution the HDMI input source can be 20meters away.

8) When transmitting a signal in 1080p resolution the CAT6 operating distance is 100 meters.

Package:

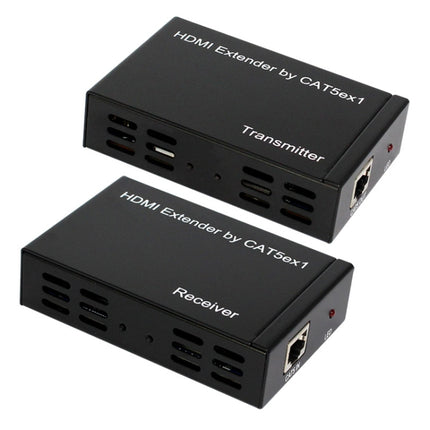

1) HDMI Extender (Transmitter) 1PC

2) HDMI Extender (Receiver) 1PC

3) IR Transmitter 1PC

4) IR Receiver 1PC

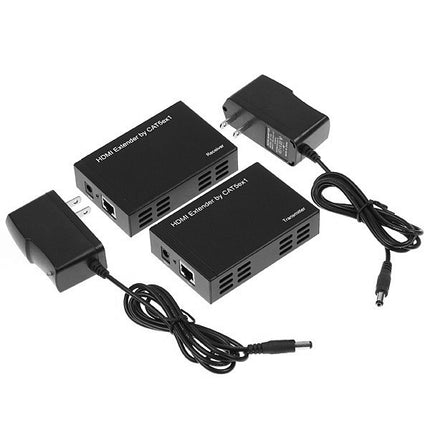

5) 5V DC Power Supply adapter 2PCS

6) Operation Manual 1PC

Specifications:

1) Frequency Bandwidth: 2.25Gbps (single link)

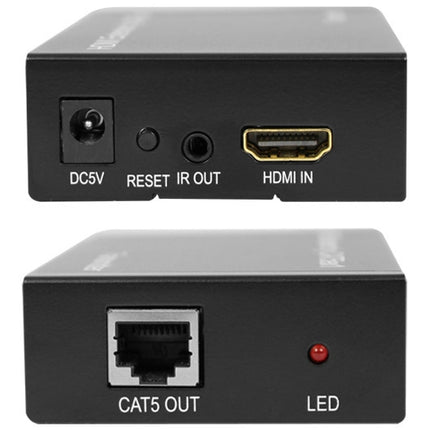

2) HDMI Transmitter Input/Output Ports: 1x HDMI Female port/1 x CAT6

3) HDMI Receiver Input/Output Ports: 1 x HDMI Female port/1 x CAT6

4) Power Supply: DC 5V~12V

5) ESD Protection Human Body Model: 8kV (air-gap discharge), 4kV (contact discharge)

6) Dimensions (mm): 65mm X 100mm X 25mm

7) Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F

8) Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F

9) Relative Humidity: 20~90% RH (non-condensing)
