WAVESHARE 60GHz Millimeter-Wave Micro-Motion Sensing Radar Module, Without Base, With Base

WAVESHARE 60GHz Millimeter-Wave Micro-Motion Sensing Radar Module, Without Base, With Base

Fiche produit

1. Operating frequency: 60GHz2. Modulation method: PCR3. Power supply voltage: 5V4. I/O level: 3.3V5. Output interface: USB / UART /... En savoir plus

🔥 Buy 2+ units 5% Discount. Expedited Delivery Available!  Buy at Wholesale Price. Expedited Delivery Available! We consistently aim to deliver competitive prices, superior quality, and dependable insurance and return services.

£25.99

    • Guaranteed secure & safe checkout.

      shop pay
    • Why pay retails? Everyone deserves wholesale - even for 1 unit. Save like a pro
    • Wholesale pricing for everyone - no min
    • Buy at wholesale price(s) | Money saved vs marketplaces
    • Dedicated Account Manager
    • Bulk pricing - for large enquiries

    Description


    1. Operating frequency: 60GHz
    2. Modulation method: PCR
    3. Power supply voltage: 5V
    4. I/O level: 3.3V
    5. Output interface: USB / UART / I2C
    6. Communication baud rate:
    - UART: 921.6kbps
    - I2C: 100K / 400K
    7. Detection distance resolution: 0.03m@25 Dgree Profile1

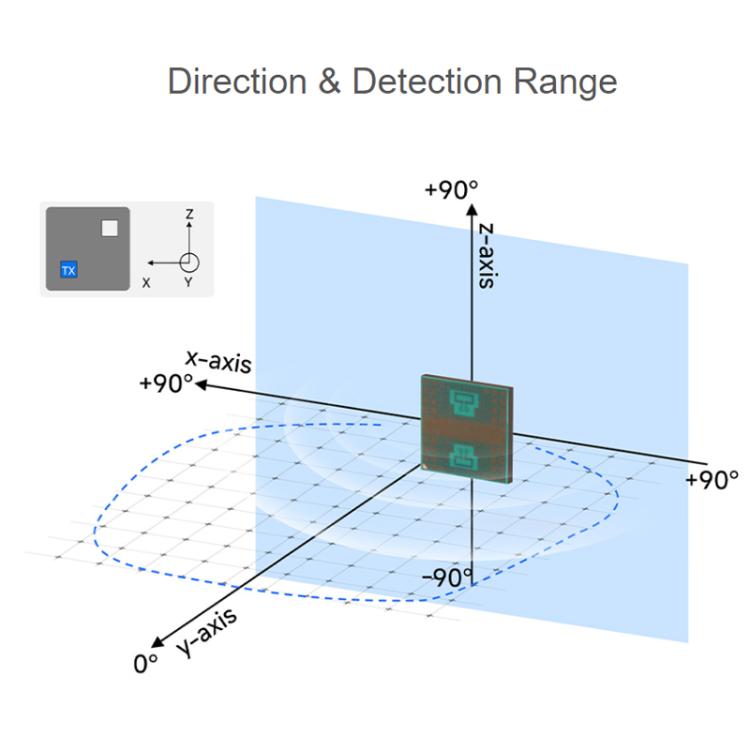

    8. Detection angle: horizontal 53 degrees; vertical 65 degrees
    9. Detection accuracy: 0.03m@Profile1
    10. Operating current: 5V 80mA
    11. Based on 60GHz pulse coherent radar (PCR) technology, it can realize human presence and motion detection and support high-precision distance measurement.
    12. With configurable detection area and sensitivity parameters, it has good anti-interference capability.
    13. Module integrates Arm Cortex-M4 MCU. (STM32L431CBT6) can be used as an independent operating unit to directly deploy user applications on Acconeer RSS, or it can communicate with an external host controller via register command protocol.
    14. Small size, low power consumption, and easy integration, suitable for applications such as human presence detection, proximity sensing, non-contact triggering, and vital sign monitoring.
    15. A121 60GHz pulse coherent radar (PCR), integrating RF, baseband, and AiP antenna, supporting human presence, micro-motion, and high-precision ranging.
    16. Integrated arm cortex-M4 MCU (STM32L431CBT6), 80MHz, 128KB Flash, and 64KB RAM, supporting local radar processing.

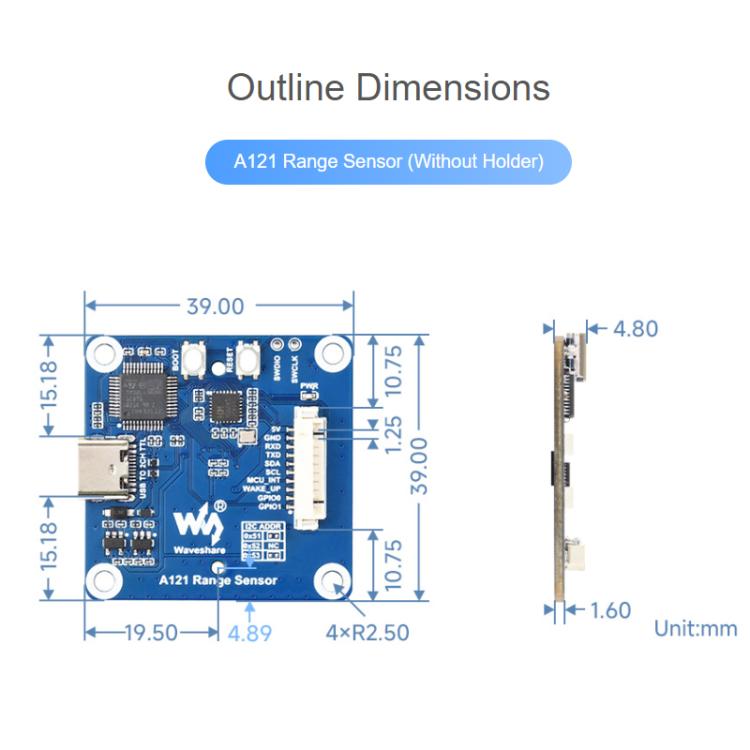

    17. Compact 39 × 39 (mm) size, optimized antenna structure, achieving high gain and stable detection. IO interface supports 3.3V.

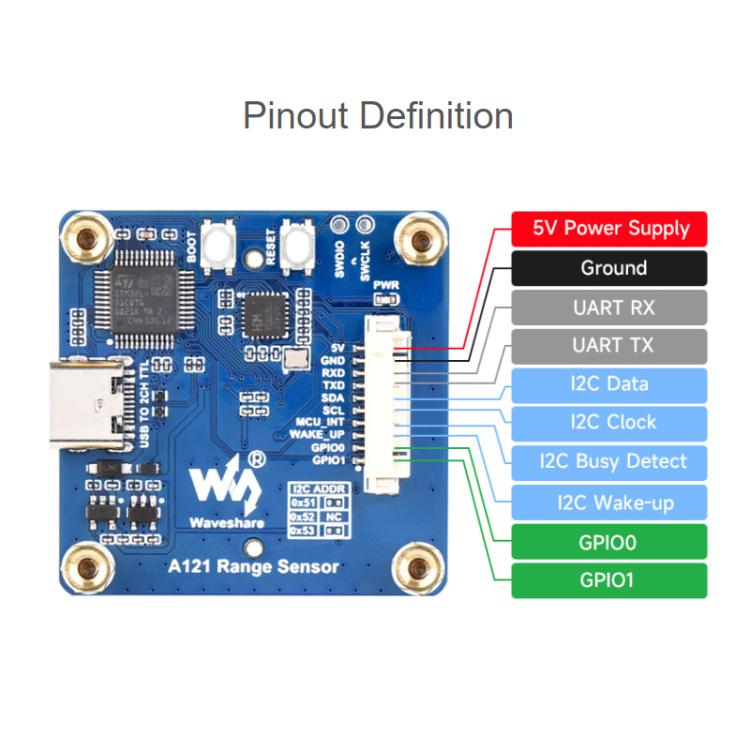

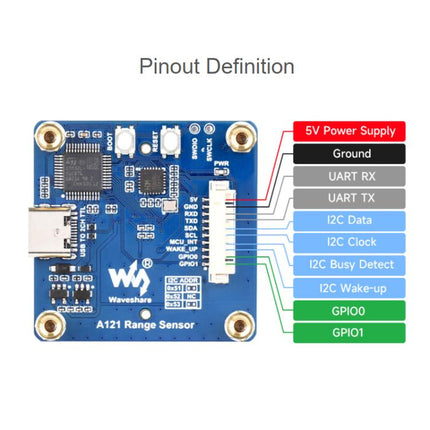

    18. Supports UART, I2C, and GPIO interfaces, outputting radar detection results based on register protocol.
    19. Supports installation through plastic or glass partitions, enabling reliable operation without additional drilling.
    20. Provides PCB SWD test points for easy RSS and user application development, production line programming, and testing.
    21. Supports visual host computer integration; a single Type-C cable connects to host computer software for setup and debugging.
    Specification:
    Package Weight
    One Package Weight 0.05kgs / 0.12lb
    One Package Size 6cm * 6cm * 4cm / 2.36inch * 2.36inch * 1.57inch
    Qty per Carton 384
    Carton Weight 20.30kgs / 44.75lb
    Carton Size 50cm * 38cm * 34cm / 19.69inch * 14.96inch * 13.39inch
    Loading Container 20GP: 412 cartons * 384 pcs = 158208 pcs
    40HQ: 958 cartons * 384 pcs = 367872 pcs
