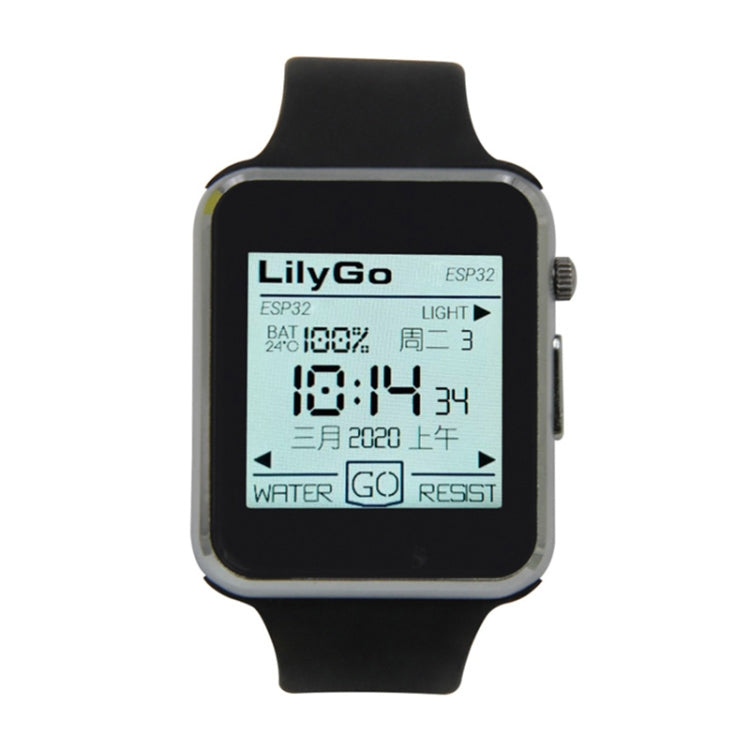

TTGO T-Watch-2020 ESP32 Main Chip 1.54 inch Touch Display Programmable Wearable Watch

TTGO T-Watch-2020 ESP32 Main Chip 1.54 inch Touch Display Programmable Wearable Watch

Fiche produit

About The ProductHardware Specifications 1. Chipset: ESP32, dual-core MCU, PMU power management 2. FLASH: QSPI flash 16MB 3. SRAM: 520... En savoir plus

🔥 Buy 2+ units 5% Discount. Expedited Delivery Available!  Buy at Wholesale Price. Expedited Delivery Available! We consistently aim to deliver competitive prices, superior quality, and dependable insurance and return services.

£40.99

    • Guaranteed secure & safe checkout.

      shop pay
    • Why pay retails? Everyone deserves wholesale - even for 1 unit. Save like a pro
    • Wholesale pricing for everyone - no min
    • Buy at wholesale price(s) | Money saved vs marketplaces
    • Dedicated Account Manager
    • Bulk pricing - for large enquiries

    Description

    About The Product
    Hardware Specifications
    1. Chipset: ESP32, dual-core MCU, PMU power management
    2. FLASH: QSPI flash 16MB
    3. SRAM: 520 KB SRAM / PSRAM 8MB
    4. Button: Power key
    5. USB to TTL: CP2104
    6.On-board clock: 40MHz crystal oscillator
    7. Working voltage: 2.7V-3.6V
    8. Working temperature range: -40 degree C ~ +85 degree C
    9. Weight: 58.5g
    10. Display: 1.54 inch LCD capacitive touch screen
    11. Sensor: BMA423 three-axis accelerometer, built-in step counting algorithm, activity recognition / tracking, advanced gesture recognition.
    12. RTC clock: PCF8563

    Power Supply Specifications
    1. Power Supply: Micro USB (5V/1A)
    2. Charging current: The charging current is programmable and self-adjustable
    3. Battery: Lithium battery (not included)

    Wi-Fi
    1. Standard: FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC(esp32 chip)
    2. Protocol: 802.11 b/g/n(802.11n, speed up to150Mbps)A-MPDU and 3. A-MSDU polymerization, support 0.4uS Protection interval
    4. Frequency range: 2.4GHz~2.5GHz(2400M~2483.5M)
    5. Transmit Power: 22dBm
    6. Communication distance: 300m

    Bluetooth
    1. Protocol: Meet bluetooth v4.2BR/EDR and BLE standard
    2. Radio frequency: With -97dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH
    3. Audio frequency: CVSD&SBC audio frequency

    Software specification
    1. Wi-Fi Mode: Station/SoftAP/SoftAP+Station/P2P
    2. Security mechanism: WPA/WPA2/WPA2-Enterprise/WPS
    3. Encryption Type: AES/RSA/ECC/SHA
    4. Firmware upgrade: UART download/OTA???Through network/host to download and write firmware
    5. Software Development: Support cloud server development /SDK for user firmware development
    6. Networking protocol: IPv4, IPv6, SSL, TCP, UDP, HTTP, FTP, MQTT
    7. User Configuration: AT + Instruction set, cloud server, android/iOS app
    8. OS: FreeRTOS

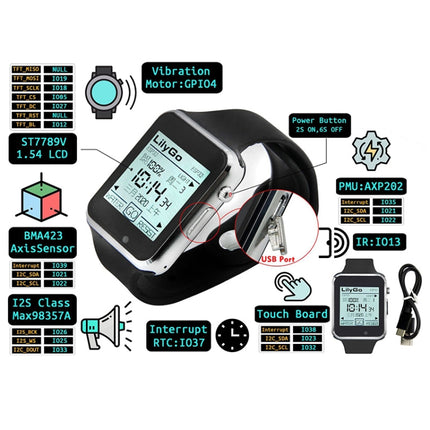

    T-Watch Function Configuration
    1. Main chip: ESP32
    2. 1.54 inch LCD capacitive touch screen: ST7789
    3. PMU power management: AXP202
    4. Touch screen chip: FT6236U
    5. Triaxial accelerometer: BMA423
    6. Lithium battery
    7. RTC clock module: PCF8563
    8. Vibration motor
    9. Speaker
    10. Infrared signal sensor
    11. PDM microphone

    ESP-32 Master
    1. Flash: 16MB
    2. P SRAM: 8MB
    3. Memory: 520kiB SRAM
    4. Wireless connection: Wi-Fi 802.11b/g/n
    5. Bluetooth: V4.2 BR/EDR and BLE
    6. Charging method: Micro USB 5V
    7. Working voltage: 3.3V
    8. CPU: Xtensa dual-core 32-bit LX6 micro processor, operating frequency is 240MHz, up to 600 DMIPS ultra-low power consumption coprocessor


    Specification:
    Package Weight
    One Package Weight 0.13kgs / 0.29lb
    One Package Size 26cm * 5cm * 2cm / 10.24inch * 1.97inch * 0.79inch
    Qty per Carton 100
    Carton Weight 11.00kgs / 24.25lb
    Carton Size 46cm * 32cm * 32cm / 18.11inch * 12.6inch * 12.6inch
    Loading Container 20GP: 566 cartons * 100 pcs = 56600 pcs
    40HQ: 1314 cartons * 100 pcs = 131400 pcs
