Description

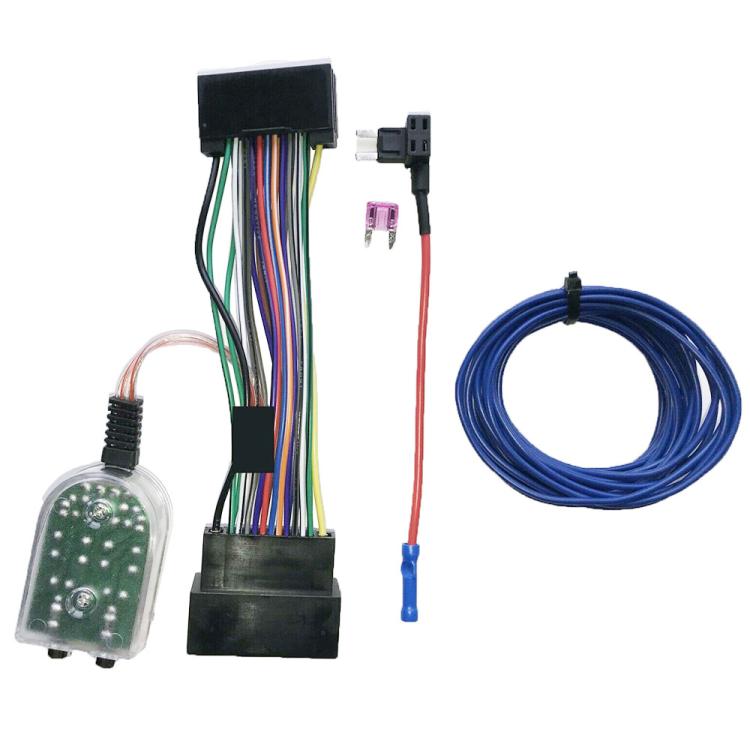

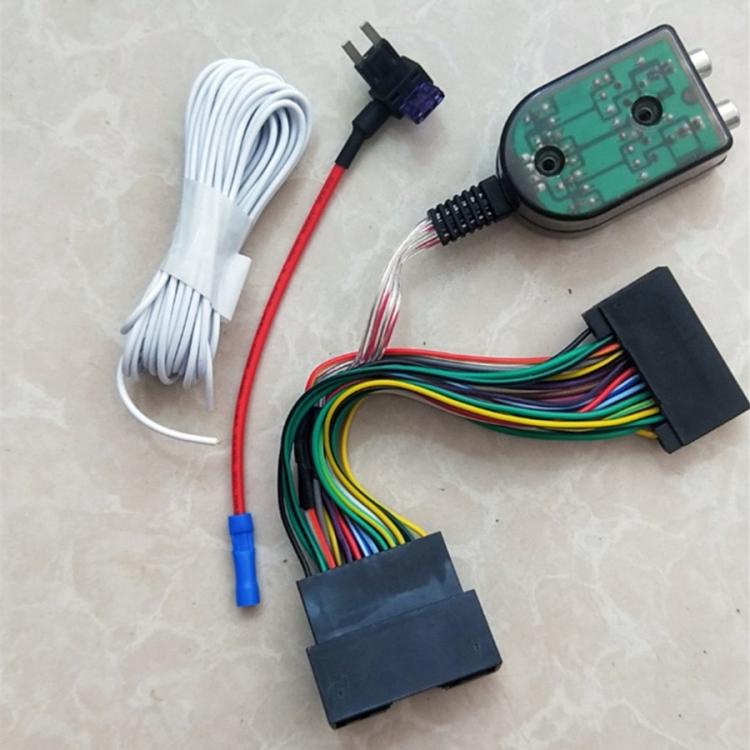

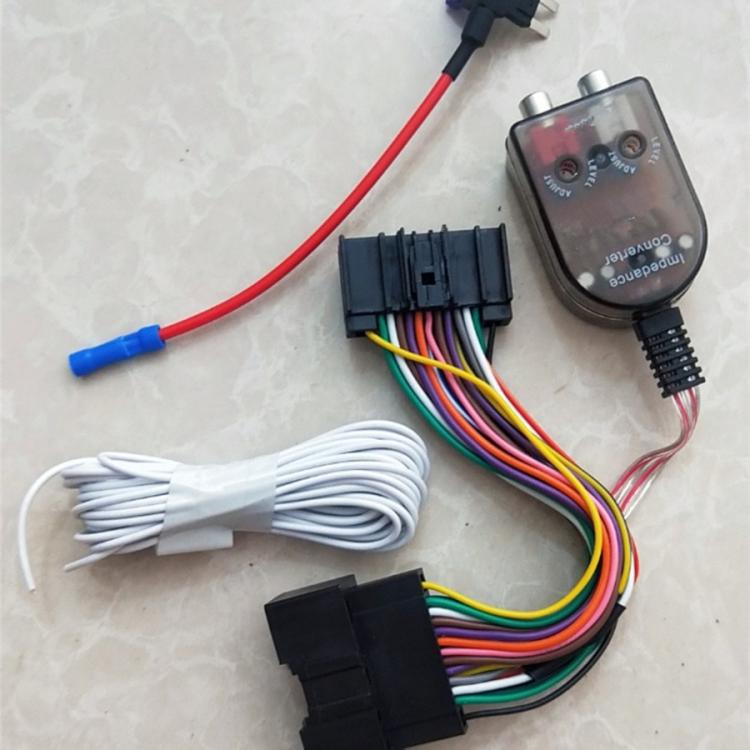

About The ProtuctFor Ford 2011-2018 Radio, Add a Subwoofer Amplifier Plug and Play Wiring Harness
This harness provides connections for a set of RCA cables to provide an audio signal to an external amplifier and provides additional circuitry with remote wires for remote amplifier hookup wires. This wire and set of RCA cables connect to your aftermarket amplifier. All that is left for you to do is connect the main power wires from the battery and ground.
The volume of the amplifier can be adjusted via the dial on the harness. For ease of access, we recommend using an external volume knob. (Not included)
Inverter Adjustment Instructions:
1. After making all necessary connections, turn the adjustment pot fully counter-clockwise, turning it all the way down.
2. Turn on the stereo and adjust the master volume control on the stereo to about 3/4 of the MAX volume.
3. Select one of the adjustment points and slowly turn it clockwise until you notice audio distortion, then stop.
4. Turn the remaini
Compatible ModelsFor Ford Edge 2018
For Ford Edge 2015 and 2017
For Ford Edge (4.2-inch screen) 2011-2014
For Ford Escape (4.2-inch screen) 2013-2018
For Ford Explorer (4.2-inch screen) 2011-2018
For Ford F-150 2018
For Ford F-150 2015-2017
For Ford F-150 (4.2-inch color screen) 2013-2014
For Ford F-250/350/450/550 (Base Model "XL" with CD) ("XLT") 2018
For Ford F-250/350/450/550 (Base Model "XL", with AM/FM Radio Only) 2018
For Ford F-250/350/450/550 (Base Model "XL" with CD) ("XLT") 2017
For Ford F-250/350/450/550 (Base Model "XL", with AM/FM Radio Only) 2017
For Ford Fiesta (without MyFord Touch) (Silver Dash) 2014-2018
For Ford Fiesta (without MyFord Touch) Touch) (Black Dash) 2014-2018
For Ford Fiesta (Sync) (Silver Dash) 2011-2013
For Ford Fiesta (with Sync) (Black Dash) 2011-2013
For Ford Fiesta (without Sync) (Silver Dash) 2011-2013
For Ford Fiesta (without Sync) (Black Dash) 2011-2013
For Ford Fiesta (without Sync) (Black Dash) 2011-2013
For Ford Focus (4.2-inch screen) 2015-2017
For Ford Focus (without MyFordTouch) 2012-2014
For Ford Fusion 2017
For Ford Fusion 2013-2016
For Ford Mustang (8-inch screen) 2015-2017
For Ford Mustang (4-inch screen) 2015-2017
For Ford Transit (no navigation) (with separate 4.2-inch screen) 2015-2016
For Ford Transit (no navigation) (without separate 4.2-inch screen) 2015-2018
For Ford Transit Connect (with NAV)
For Ford Transit Connect (no navigation) (with cd) (grey dash) 2014-2016
For Ford Transit Connect (no navigation) (with cd) (black dash)
For Ford Transit Connect (no navigation) (without cd) 2014-2016
Specification:
| Package Weight |
| One Package Weight |
0.06kgs / 0.14lb |
| One Package Size |
10cm * 10cm * 2cm / 3.94inch * 3.94inch * 0.79inch |
| Carton Weight |
12.50kgs / 27.56lb |
| Carton Size |
42cm * 42cm * 22cm / 16.54inch * 16.54inch * 8.66inch |
| Loading Container |
20GP: 687 cartons * 200 pcs = 137400 pcs
40HQ: 1595 cartons * 200 pcs = 319000 pcs
|
|
