Description

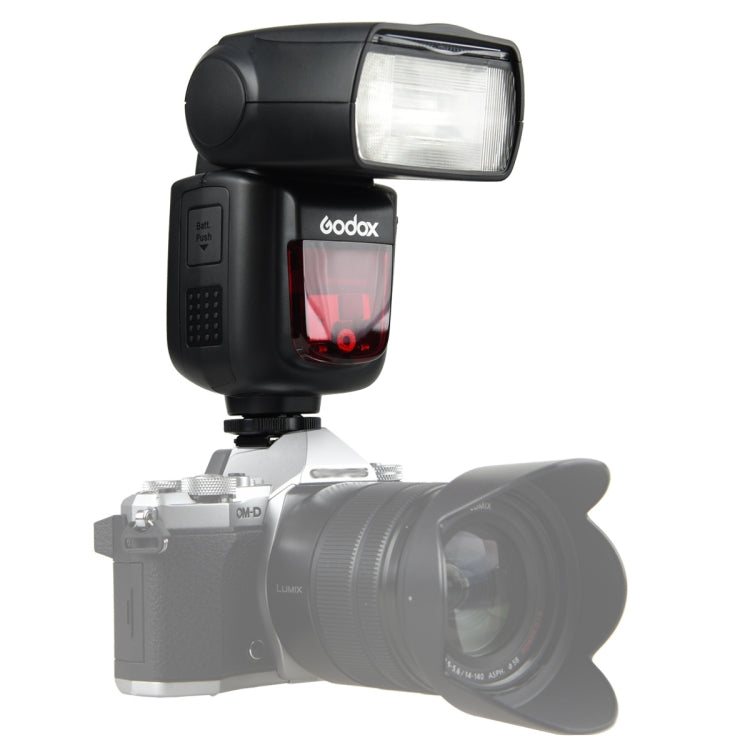

1. Compatible camera: suitable for Olympus DSLR camera (TTL auto flash)
2. Guide plate number (1 / 1 output @ 200 mm): 60 (M ISO 100); 190 (FT ISO 100)
3. Flash range: manual / auto zoom (20-200 mm) (14 mm wide screen)
4. Rotating / tilting flash lamp cap (bouncing): horizontal 0-360 degrees, vertical - 7-90 degrees
5. Flash time: 1 / 300 to 1 / 20000 seconds
6. Exposure control system: TTL automatic flash and manual flash
7. Multiple flashes: provide (90 times, 100Hz)
8. Flash exposure compensation (FEC): manual Feb: + / - 3 levels, in 1 / 3 level increments
9. Flash exposure lock (FEL): no
10. Synchronization mode: high speed synchronization (1 / 8000 second), first act synchronization and second act synchronization
11. Wireless flash function: Master, slave, off
12. Controllable slave station group: Light: 2 (a, b); 2.4G 3 (a, b, c)
13. Transmission range (approximately): optical: indoor: 12 to 15 m / 39.4 to 49.2 ft. Outdoor: 8 to 10 m / 26.2 to 32.8 ft. Receiving angle of main equipment: horizontal + / - 40 degrees, vertical + / - 30 degrees; 2.4G: 100M
14. Channel: fiber: 4 (1, 2, 3 and 4); 2.4G: 32 (1-32)
15. Effective range of auto focusing auxiliary beam (approximately): Center: 0.6-10m / 2.0-32.8 feet; Periphery: 0.6-5m / 2.0-16.4 feet
16. Recovery time: less than 1.5 seconds. When the flash is ready, the red LED will be on.
17. Synchronization trigger mode: hotspot, 2.5mm synchronization line, wireless control port

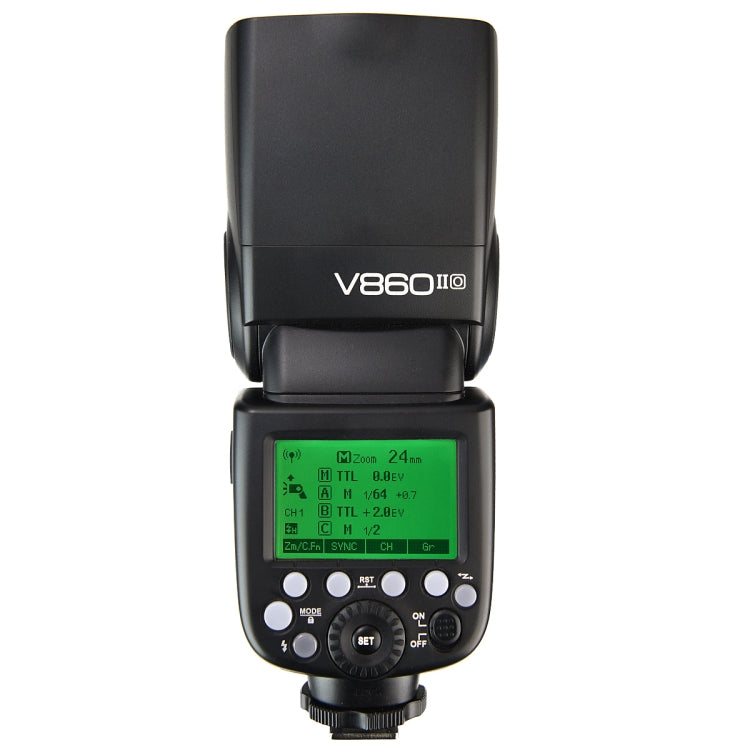

18. Panel: widescreen LCD panel, backlight on / off
19. Color temperature: 5600 + / - 200K
20. The recovery time is 1.5 seconds, 650 times of full power discharge can be carried out, and the 2000 MAH lithium battery can ensure better shooting performance
21. Support TTL / M / multi / S1 / S2 mode
22. Built in GODOX 2.4G wireless X system
Specification:
| General |
| Guide No. |
60 (M ISO 100); 190 (FT ISO 100) |
| Wireless Triggering Distance |
100m (2.4G wireless) |
| Flash Mode |
TTL, M, MULTI, S1, S2 |
| SYNC Mode |
high speed synchronization (1 / 8000 second) |
| Vertical Rotation Angle |
- 7-90 degrees |
| Horizontal Rotation Angle |
0-360 degrees |
| Flash Time |
1/300 to 1/ 20000 seconds |
| Transmission Range |
indoor: 12 to 15 m / 39.4 to 49.2 ft. Outdoor: 8 to 10 m / 26.2 to 32.8 ft |
| Effective Flash Range |
manual / auto zoom (20-200 mm) (14 mm wide screen) |
|
| Package Weight |
| One Package Weight |
1.00kgs / 2.20lb |
| One Package Size |
23cm * 21cm * 8cm / 9.06inch * 8.27inch * 3.15inch |
| Carton Weight |
10.45kgs / 23.04lb |
| Carton Size |
23cm * 42cm * 40cm / 9.06inch * 16.54inch * 15.75inch |
| Loading Container |
20GP: 690 cartons * 10 pcs = 6900 pcs
40HQ: 1602 cartons * 10 pcs = 16020 pcs
|
|
