Description
Radiator:
1. Material: aluminum alloy, copper, ABS

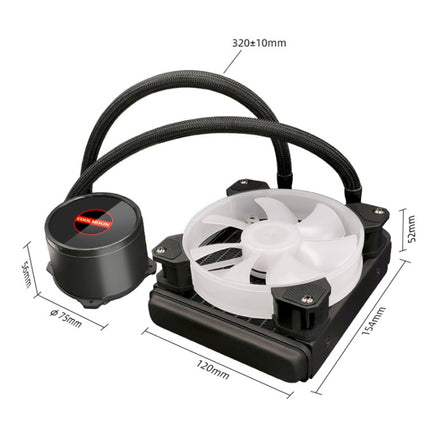

2. Cooling row size: about 15.4 x 12 x 2.7cm

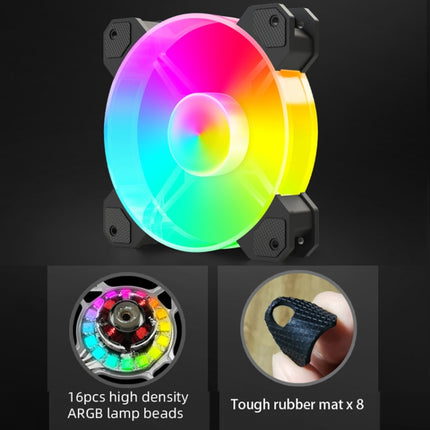

Fan:
1. Speed: about 800-1800RPM
2. Airflow: about 71CFM
3. Connector: 3pin ARGB +4pin PWM
4. Noise level: less than 29.5dBA
5. Bearing: hydraulic bearing
6. Voltage: DC 12V (fan) + 5V (LED)
7. Size: about 12 x 12 x 2.5cm

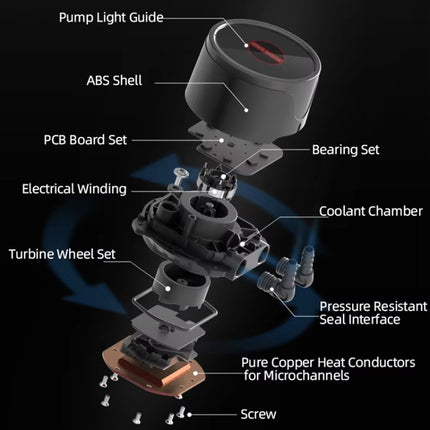

Pump:
1. Platform:
- Support for Intel: LGA115X/1200/1366/17XX/20XX
- Support for AMD: AM4/AM3(+)/AM2(+)/FM2(+)/FM1
2. Speed: 2600RPM
3. Voltage DC 12V (PUMP) + DC 5V (LED)
4. Noise level: less than 25dBA
5. Liquid flow rate:more than 1100ml/min
6. Size: about 7.5 x 5.6cm
Features:
1. Water cooling head strong heat dissipation, widely compatible, support for addressable 5V 3Pin interface, programmable custom 16.8 million colors, acrylic mirror, so that the light effect is more bright and full of clean
2. Strong coolant power system, to ensure efficient circulation of coolant, quiet and efficient
3. Fan aperture and bracket with a one-piece transparent design, smooth ABS frame, so that the light effect shows a bright and soft eye protection luster

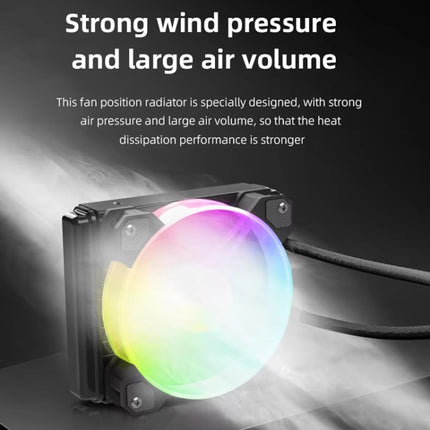

4. The fan is designed with narrow frame and large fan blades, which can generate stronger wind power and large air volume, penetrate directly into the cooling row and cool down the temperature rapidly
5. High-density E-shaped fins increase the heat dissipation area, so that the heat spreads more quickly
6. Support connect the motherboard addressable 5V 3-pin ARGB interface, software-controlled synchronization light, programmable 16.8 million colors
7. Support motherboard PWM intelligent temperature control speed, fan automatically adjust the speed according to the CPU temperature, energy saving and noise reduction

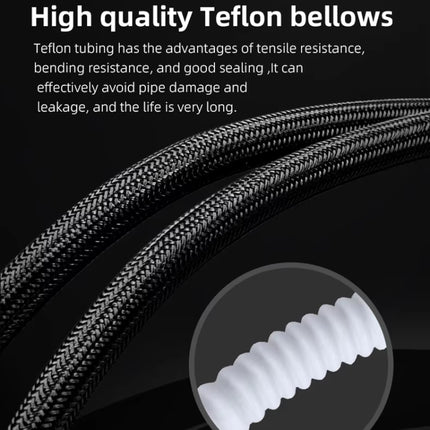

8. Water-cooled pipe interface with industrial-grade sealing process, anti-stretching, bending, sealing to prevent leakage of liquid, woven mesh to the water-cooled pipe to provide careful care
9. Polished copper base ensures a close fit to the CPU, quickly transferring heat away and improving cooling efficiency
Specification:
| Package Weight |
| One Package Weight |
1.30kgs / 2.87lb |

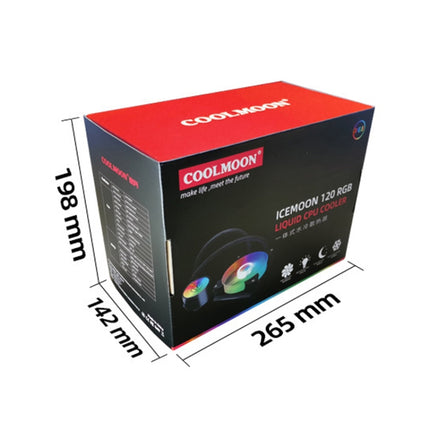

| One Package Size |
29cm * 22cm * 16cm / 11.42inch * 8.66inch * 6.3inch |
| Carton Weight |
11.00kgs / 24.25lb |
| Carton Size |
58cm * 44cm * 33cm / 22.83inch * 17.32inch * 12.99inch |
| Loading Container |
20GP: 316 cartons * 8 pcs = 2528 pcs
40HQ: 735 cartons * 8 pcs = 5880 pcs
|
|
