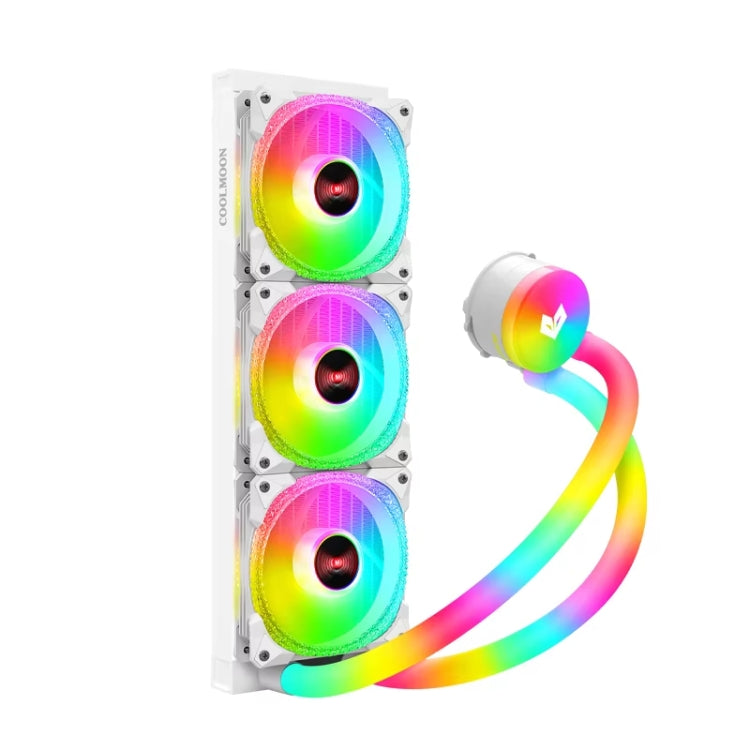

Description
Radiator:
1. Material: aluminum alloy, copper, ABS

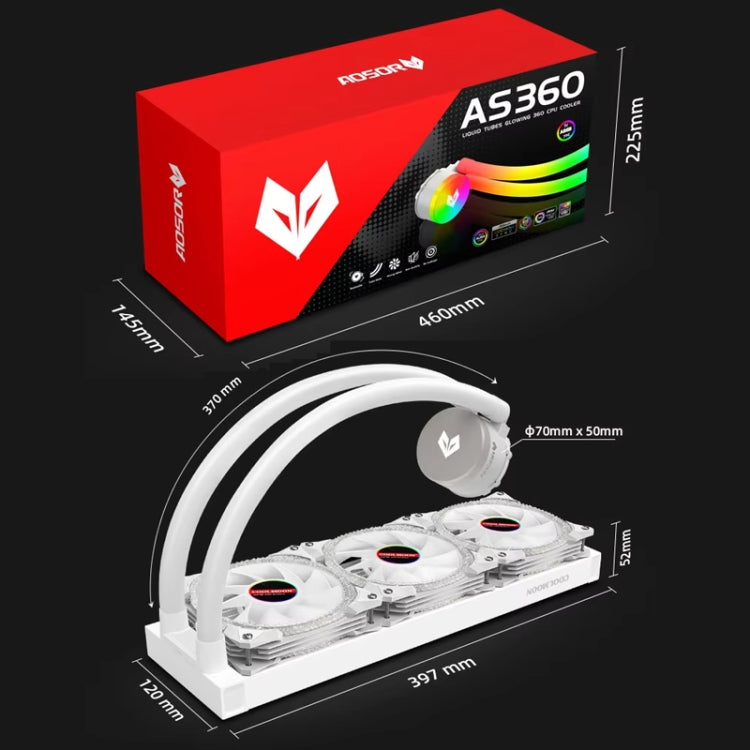

2. Cooling row size: about 39.7 x 12 x 5.2cm
Fan:
1. Speed: about 800-1800RPM
2. Airflow: about 71CFM
3. Connector: 3pin ARGB +4pin PWM
4. Noise level: less than 25dBA
5. Bearing: hydraulic bearing
6. Voltage: DC 12V (fan) + 5V (LED)
7. Size: about 12 x 12 x 2.5cm

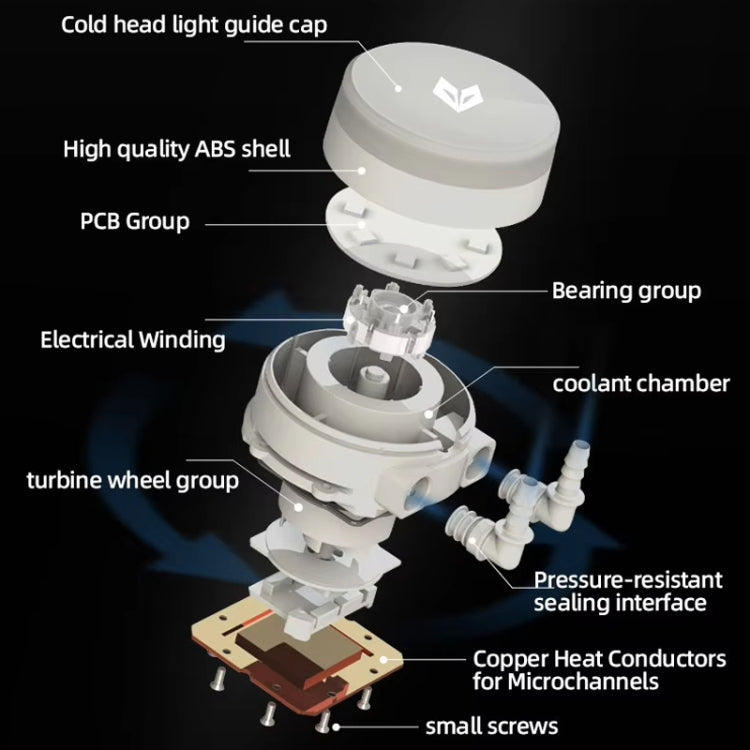

Pump:

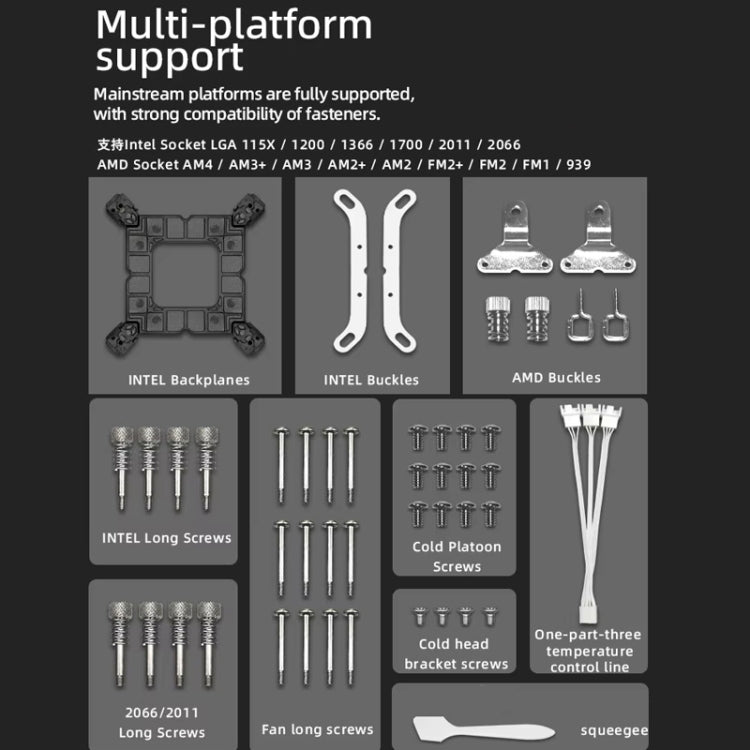

1. Platform:
- Support for Intel: LGA115X/1200/1366/17XX/20XX
- Support for AMD: AM4/AM3(+)/AM2(+)/FM2(+)/FM1
2. Speed: 2500RPM
3. Voltage: DC 12V (PUMP) + DC 5V (LED)
4. Noise level: less than 25dBA
5. Liquid flow rate:more than 1100ml/min
6. Size: about 7 x 5cm
Features:

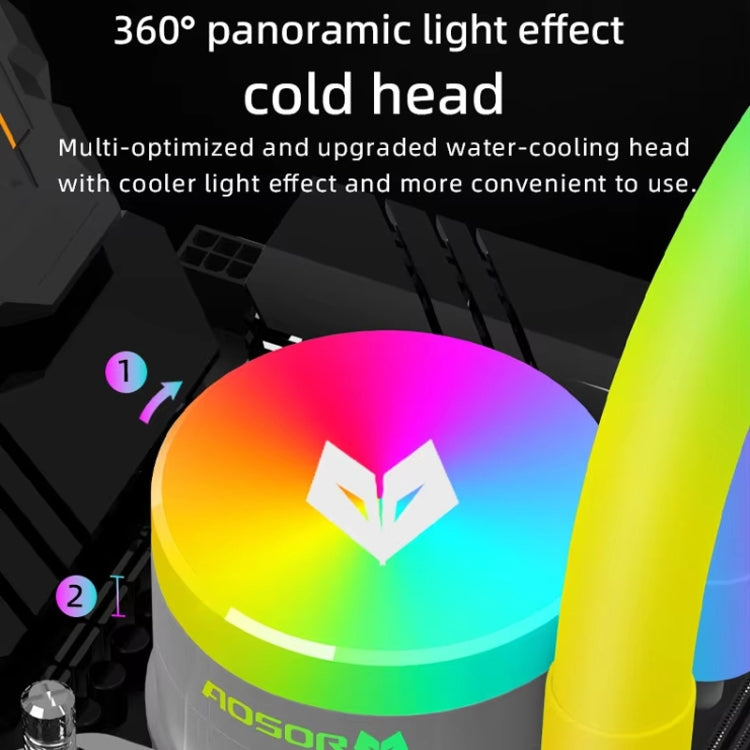

1. Upgraded water-cooled head, 360 degree surround light effect, more convenient to use
2. Strong coolant power system, to ensure efficient circulation of coolant, quiet and efficient

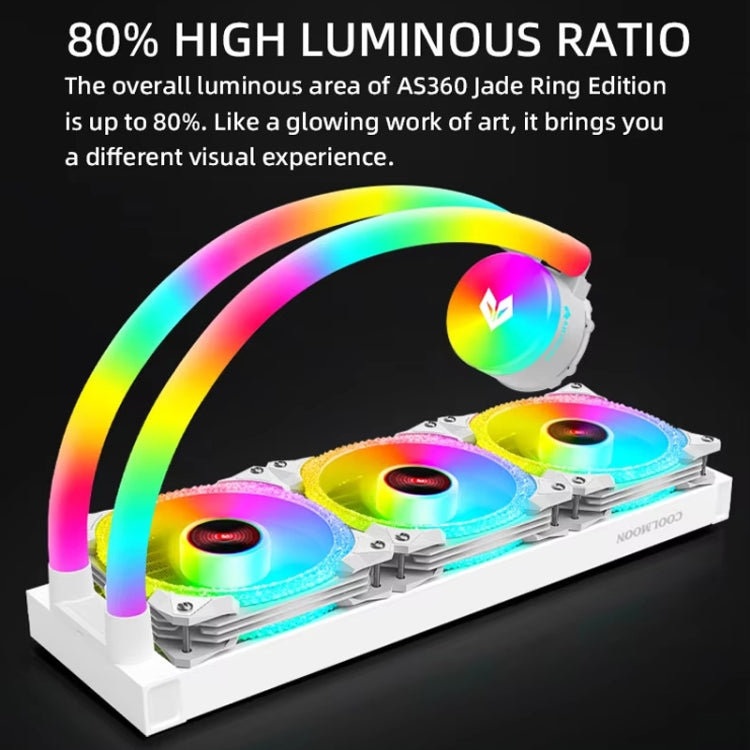

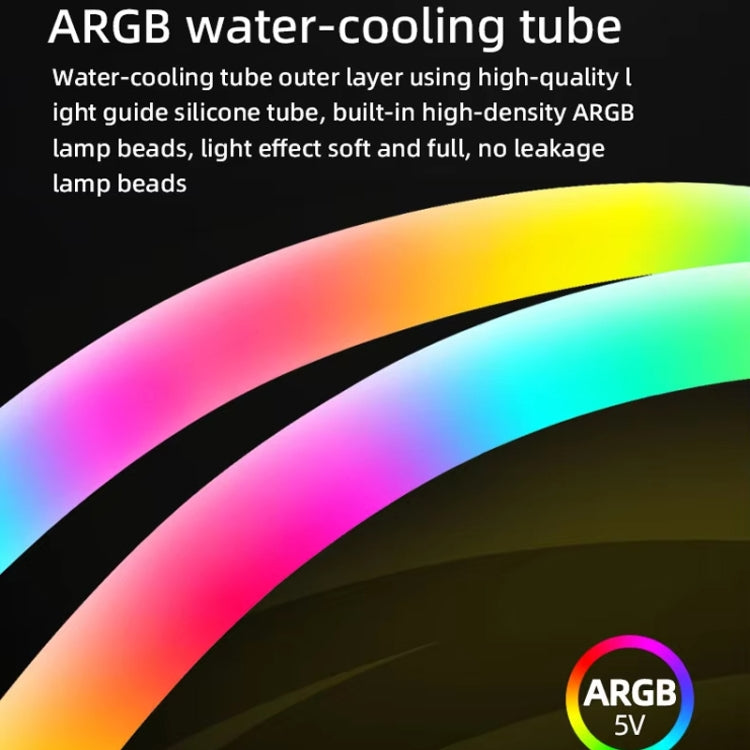

3. Water cooling tube outer layer with light guide silicone tube, built-in high-density ARGB lamp beads, soft and full light effect, no leakage lamp beads

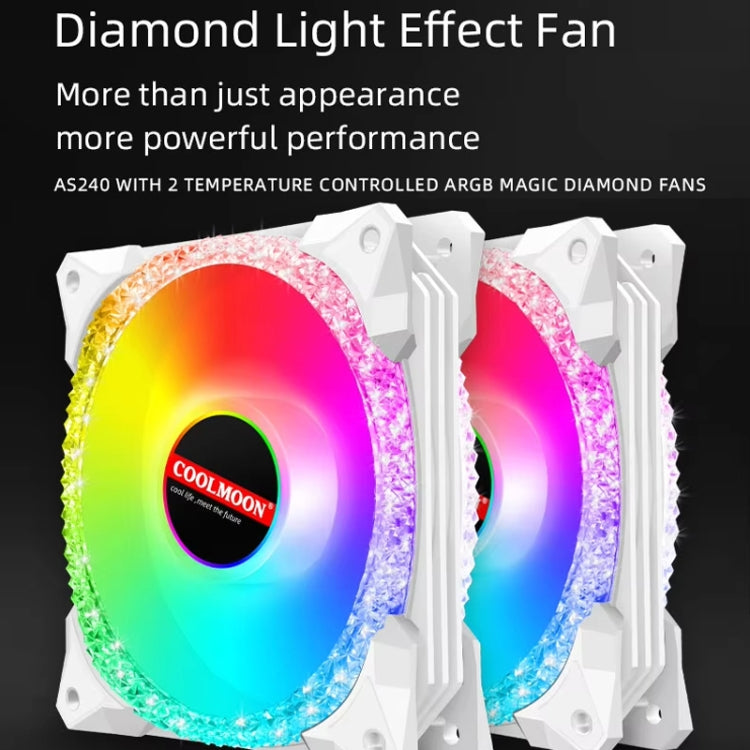

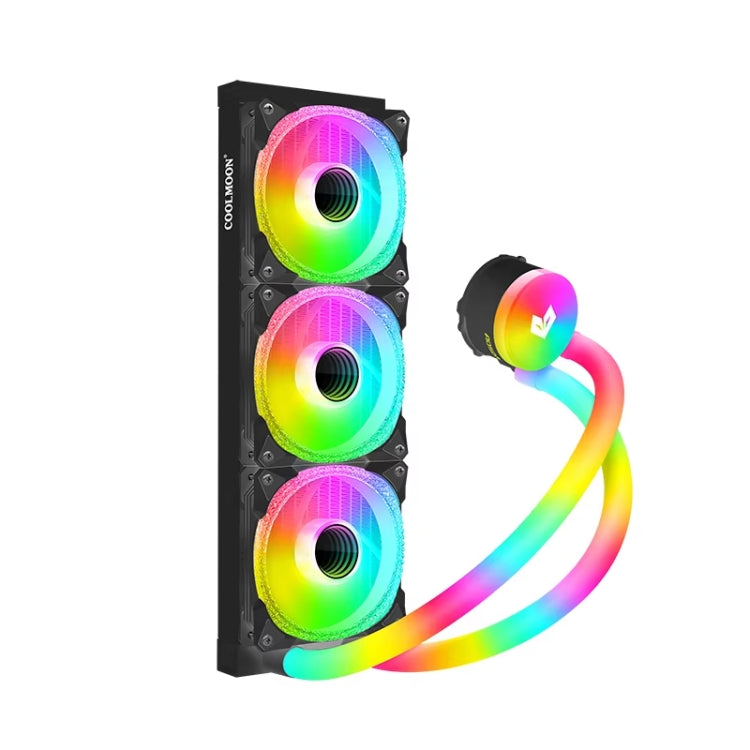

4. 3 high-performance temperature-controlled ARGB magic diamond fan, double-sided diamond light effect bright, colorful, crystal clear, sparkling and touching

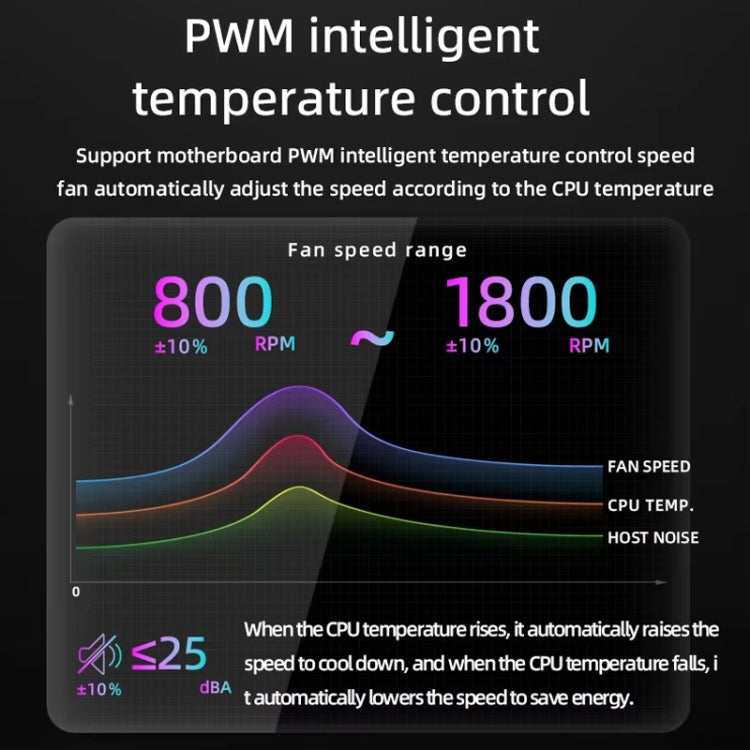

5. Support motherboard PWM intelligent temperature control, according to the CPU temperature automatically adjust the fan speed, energy saving and noise reduction

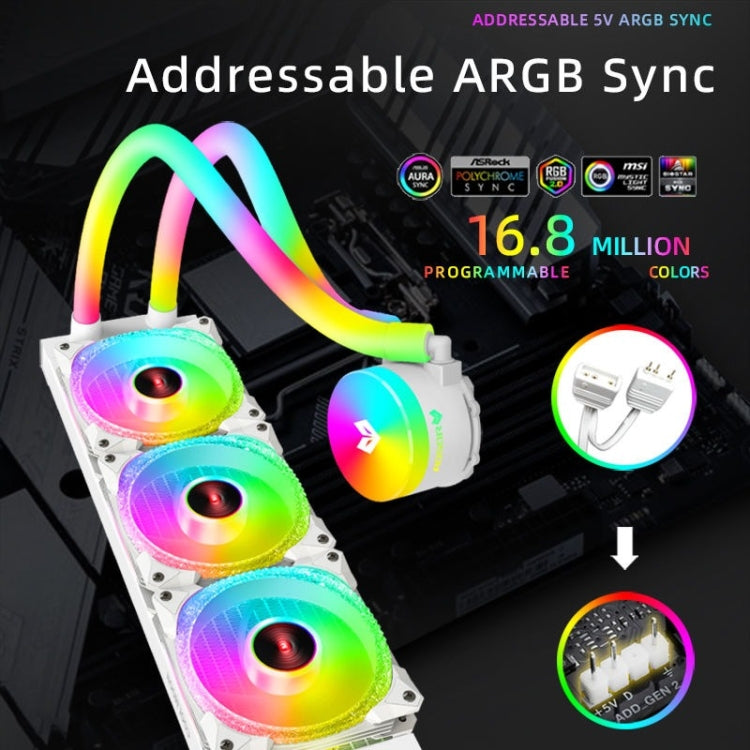

6. Support connecting the motherboard addressable 5V3-pin ARGB interface to achieve software-controlled synchronization, programmable 16.8 million colors

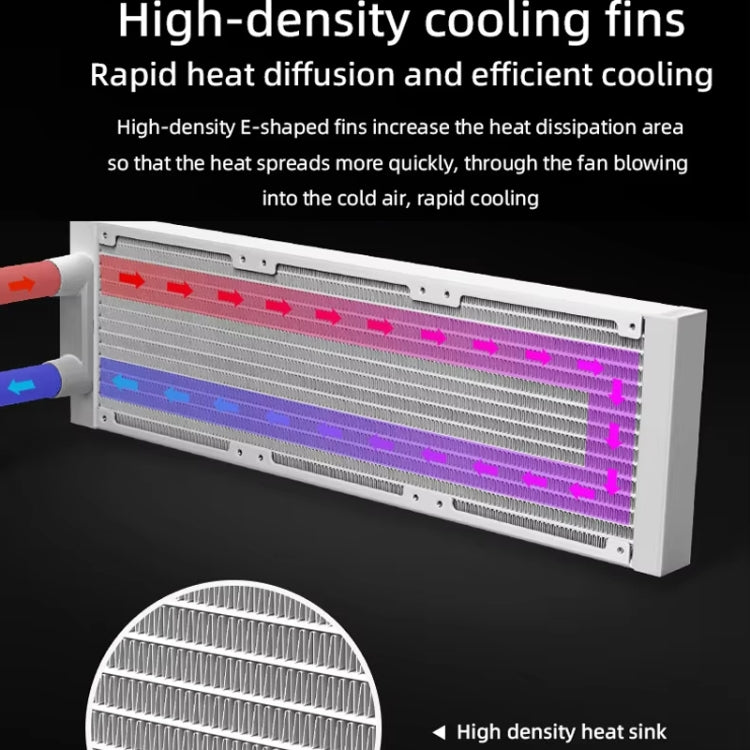

7. High-density E-shaped fins, increasing the heat dissipation area, so that the heat spread more quickly. After the fan blowing into the cold air, rapid cooling

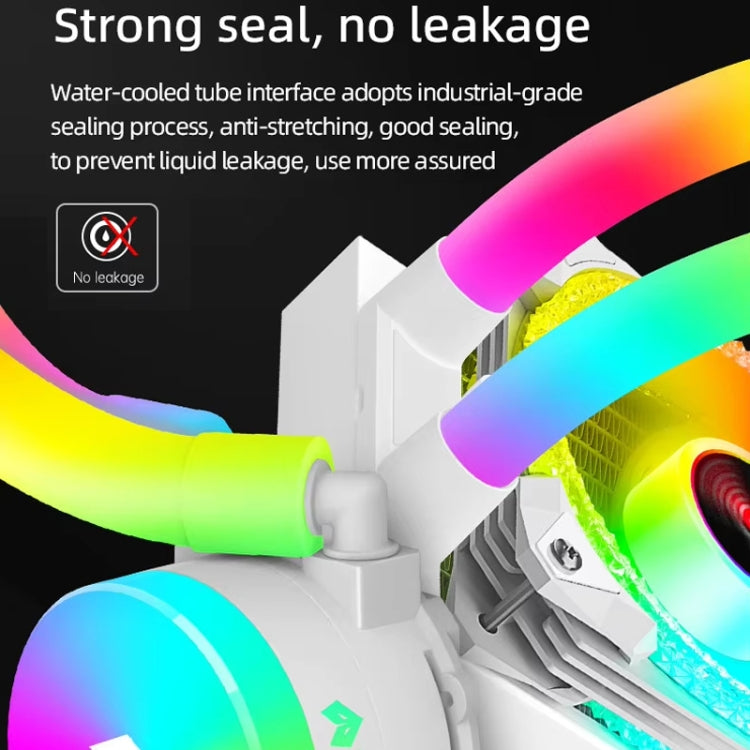

8. Water-cooled pipe interface with industrial-grade sealing process, anti-stretching, bending, good sealing, to prevent leakage of liquid, the use of more assured

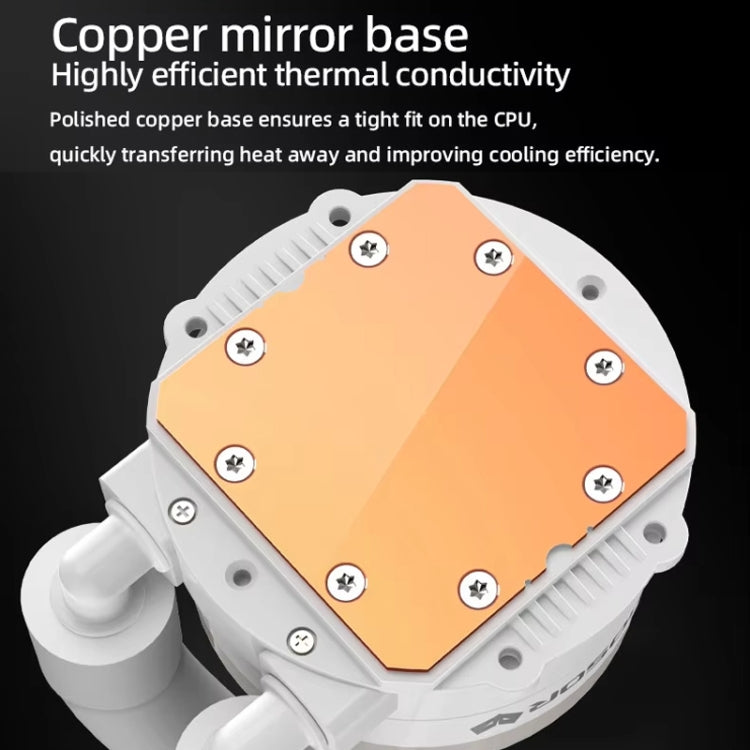

9. Polished and sanded pure copper base, to ensure a close fit to the CPU, quickly transfer heat away, improve cooling efficiency
Specification:
| Package Weight |
| One Package Weight |
2.45kgs / 5.41lb |
| One Package Size |
48cm * 25cm * 16cm / 18.9inch * 9.84inch * 6.3inch |
| Carton Weight |
16.00kgs / 35.27lb |
| Carton Size |
52cm * 51cm * 48cm / 20.47inch * 20.08inch * 18.9inch |
| Loading Container |
20GP: 209 cartons * 6 pcs = 1254 pcs
40HQ: 486 cartons * 6 pcs = 2916 pcs
|
|
