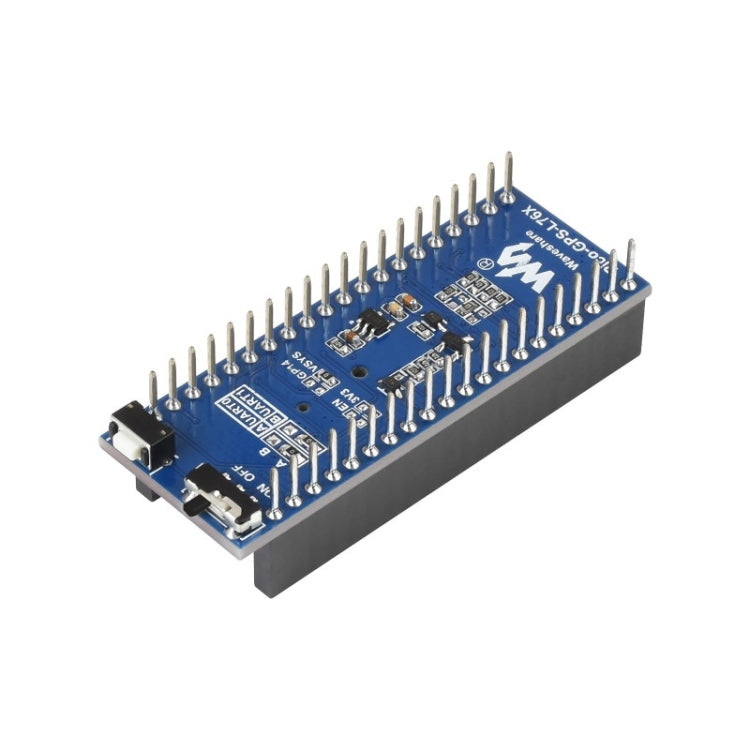

Waveshare L76B GNSS Module for Raspberry Pi Pico, Support GPS, BDS, QZSS, L76B

Features
The Pico-GPS-L76B is a GNSS module designed for Raspberry Pi Pico, with multi satellite systems support including GPS, BDS, and QZSS. It has advantages such as fast positioning, high accuracy, and low power consumption, etc. Combined with the Raspberry Pi Pico, it is easy to use global navigating function.

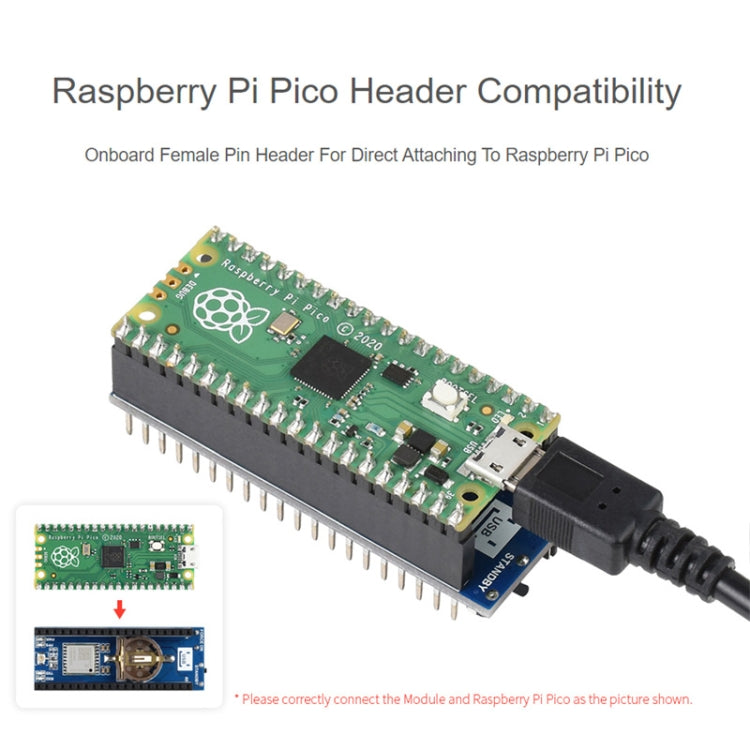

1. Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
2. Multi satellite systems support: GPS, BDS, and QZSS
3. Easy, self track prediction technology, help quick positioning
4. AlwaysLocate, intelligent controller of periodic mode for power saving
5. Support D-GPS, SBAS (WAAS/EGNOS/MSAS/GAGAN)
6. UART communication baudrate: 4800~115200bps (9600bps by default)

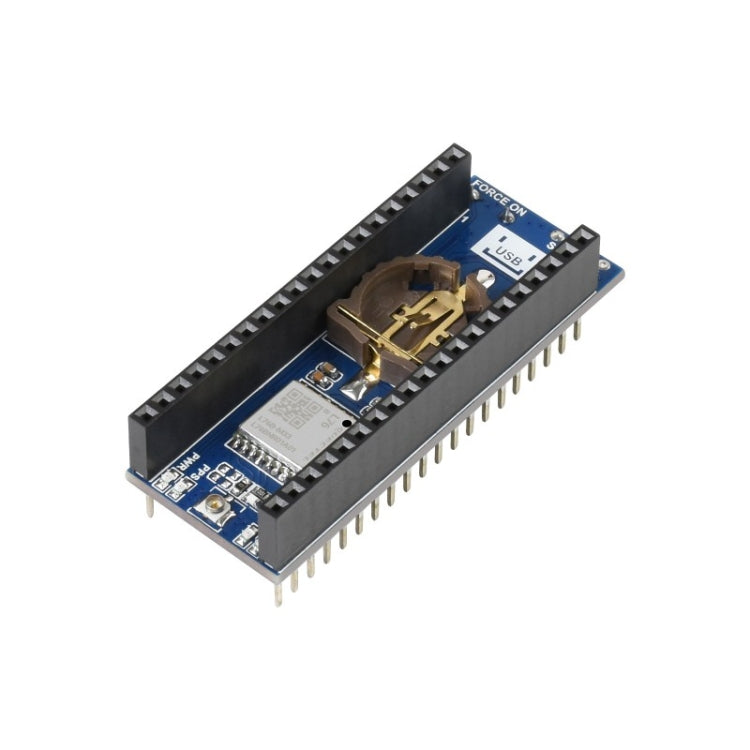

7. Onboard battery holder, supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts

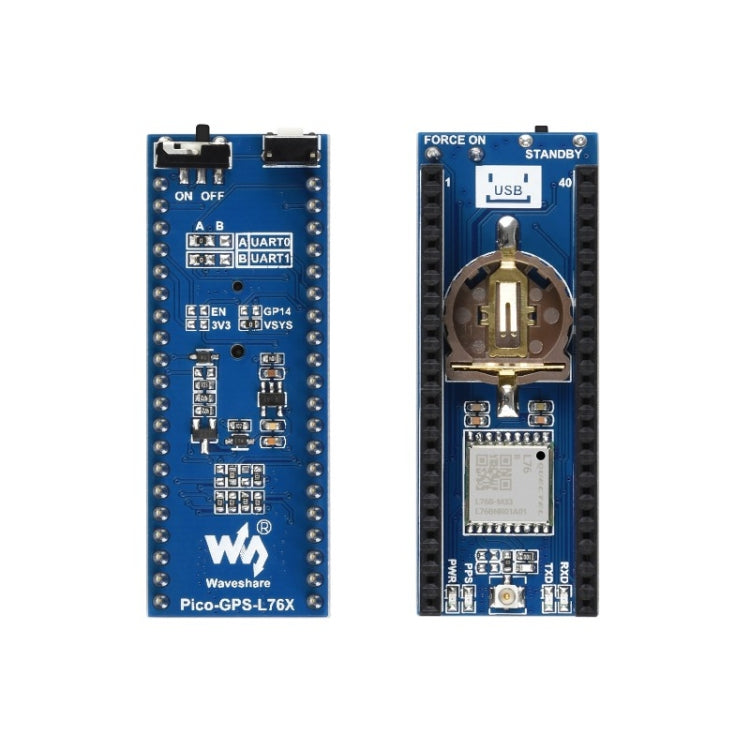

8. 4 x LEDs for indicating the module operating status
9. Come with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specification
GNSS
1. Frequency band: GPS L1 (1575.42Mhz), BD2 B1 (1561.098MHz)
- Channels: 33 tracking ch, 99 acquisition ch, 210 PRN ch
- C/A code
- SBAS: WAAS, EGNOS, MSAS, GAGAN
2. Horizontal position accuracy (autonomous positioning): Less than 2.5m CEP
3. Time-To-First-Fix at -130dBm(EASY enabled):
- Cold starts: Less than 15s
- Warm starts: Less than 5s
- Hot starts: Less than 1s
4. Sensitivity:
- Acquisition: -148dBm
- Tracking: -163dBm
- Re-acquisition: -160dBm
5. Dynamic performance
- Altitude (MAX): 18000m
- Velocity (MAX): 515m/s
- Acceleration (MAX): 4g

Others

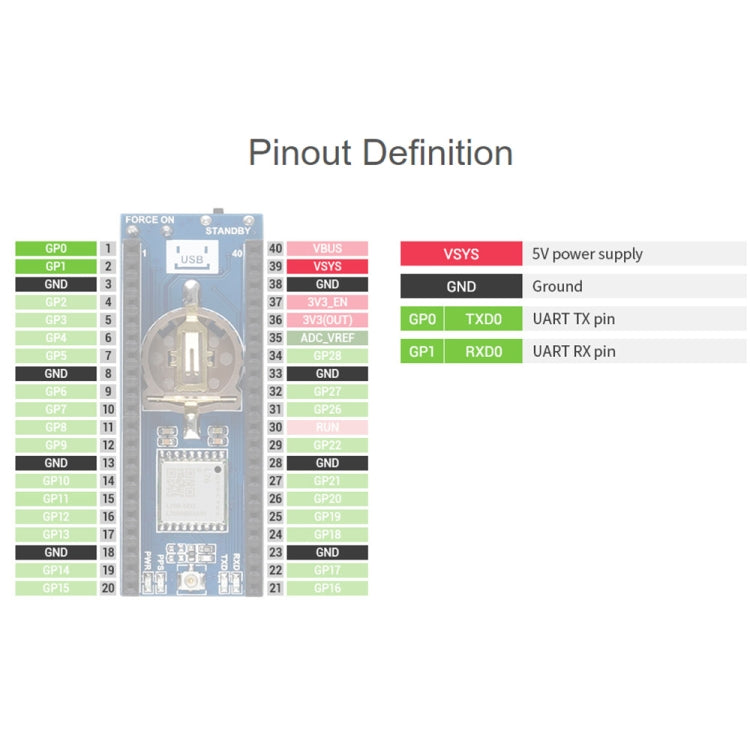

1. Communication interface: UART
2. Baudrate: 4800~115200bps (9600bps by default)
3. Update rate: 1Hz (default), 10Hz (MAX)
4. Protocols: NMEA 0183, PMTK
5. Power supply voltage: 5V
6. Operating current: 13mA
7. Overall current consumption: Less than 40mA at 5V (Continue mode)
8. Operating temperature: -40~ 85 degree C
9. Dimensions: 52 x 21mm
